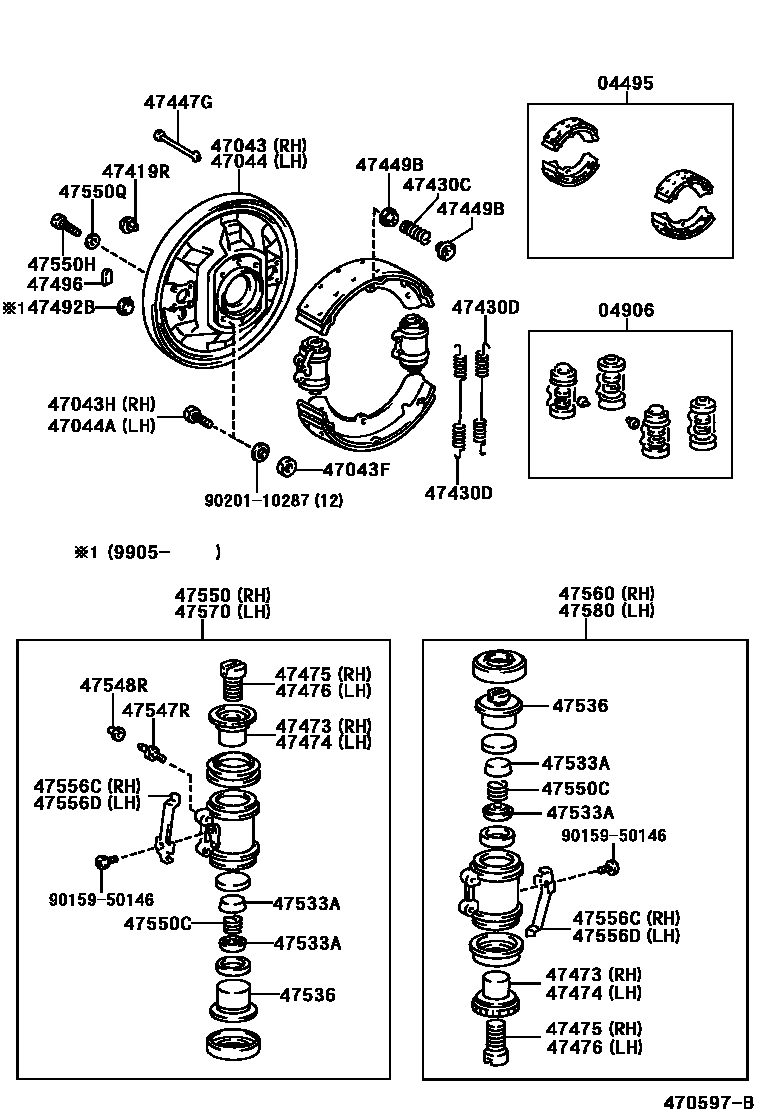

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(AUTO ADJUSTER) 0008 1W(FR DISC BRAKE:RR AUTO ADJUS

04495SHOE KIT, REAR BRAKE

main04494-36150iBU10#,RZU100..WT..(15T,20T)..TB199505-200212

MARK AK LA514

main04494-36160iBU10#..ST199505-200212

MARK AK LA514

sub04494-36280

main04494-36190iBU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505-199704

MARK NBK LN519

sub04494-36210

main04494-36210iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199704

MARK NBK LN519

sub04494-36290

main04495-37010iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505-199905

MARK NBK D2146

sub04495-37070

main04495-37070iBU21#,22#..40T199902-199905

MARK NBK D2146

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36080iBU10#..ST199505

main04906-36170iBU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB199505

main04906-36180iBU212..30T..ARL;BU101,211..WT..(20T,30T)..GEN;BU100,110,14#..(DM1,T3)..WT..(20T,25T)..DSL..(ARL,GEN,SA)199505-199905

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub04906-36181

main04906-36180iBU101,140,142..EUR,SA199505

VENEZUELA SPEC

sub04906-36181

main04906-36200iBU10#,RZU100..WT..(15T,20T)..TB199505

main04906-37040iBU10#,110,111..(DM1,DM6,T3)..WT..20T..(ARL,GEN,TAIW)199505

sub04906-37460

main04906-37050iBU21#,22#..40T199505-199803

sub04906-37051

main04906-37051iBU21#,22#..40T..(ARL,GEN,SA)199803

sub04906-37052

main04906-37060iBU222..EUR199902

sub04906-37061

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-25110iBU10#,RZU100..WT..(15T,20T)..TB199610

main47043-36090iBU10#..ST199505-199908

sub47043-36091

sub47492-28010

main47043-36091iBU101..ST199905

main47043-36100iBU102..WT..20T..TB199505-199610

sub47043-25110

sub47492-28010

main47043-36120iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505

main47043-37020iBU21#,22#..40T199505-199507

sub47043-37021

sub47491-37040

main47043-37021iBU21#,22#..40T199507-199802

sub47043-37031

sub47473-37020

sub47491-37090

sub47556-37010

main47043-37030iBU21#,22#..40T199802-200107

sub47043-37031

sub47491-37090

main47043-37031iBU21#,22#..40T200107

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178iBU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T)199505-199802

sub94130-01002

main94130-01002iBU10#,RZU100..WT..(15T,20T)..TB199802-199905

main94130-01441iBU21#,22#..40T199505

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90101-14032iBU21#,22#..40T199505

main90114-10019iBU101;BU100,102,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505-199907

sub90114-10063

main90114-10063iBU10#,RZU100..WT..(15T,20T)..TB199907

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-25080iBU10#,RZU100..WT..(15T,20T)..TB199610

main47044-36090iBU100,102..ST199505-199908

sub47044-36091

sub47492-28010

main47044-36091iBU101..ST199905

main47044-36100iBU102..WT..20T..TB199505-199610

sub47044-25080

sub47492-28010

main47044-36120iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505

main47044-37020iBU21#,22#..40T199505-199507

sub47044-37021

sub47491-37050

main47044-37021iBU21#,22#..40T199507-199802

sub47044-37031

sub47473-37020

sub47491-37090

sub47556-37010

main47044-37030iBU21#,22#..40T199802-200107

sub47044-37031

sub47491-37090

main47044-37031iBU21#,22#..40T200107

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90101-14032iBU21#,22#..40T199505

main90114-10019iBU101;BU100,102,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505-199907

sub90114-10063

main90114-10063iBU10#,RZU100..WT..(15T,20T)..TB199907

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011iBU211,YU210..30T;BU10#,11#,14#,212,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW)199505-200111

main47491-36020iBU211,YU210..30T;BU10#,111,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN)200111

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iBU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T199505-199905

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006iBU10#..ST199505-199905

main90507-29002iBU10#,RZU100..WT..(15T,20T)..TB199505

main90507-29006iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iBU10#,RZU100..WT..(15T,20T)..TB199505

main47447-36020iBU101..ST199505-199905

main47447-60010iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iBU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T199505-199905

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47473-37010iBU21#,22#..40T199505-199802

main47473-37020iBU21#,22#..40T199802

main47506-36020iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

main47551-36150iBU10#..ST199505-199905

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47473-37010iBU21#,22#..40T199505-199802

main47473-37020iBU21#,22#..40T199802

main47507-36020iBU211..LHD..30T..IV3199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

main47552-36150iBU10#..ST199505-199905

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36050iBU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB199505-199905

main47553-36060iBU101..WT..GEN;BU211,YU210..30T;BU100,102,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47553-36070iBU212..30T..ARL;BU101,211..WT..(20T,30T)..GEN;BU100,110,14#..(DM1,T3)..WT..(20T,25T)..DSL..(ARL,GEN)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47553-36070iBU211..LHD..30T..IV3199505-199905

VENEZUELA SPEC

main47553-37070iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

main47553-37080iBU222..EUR199902

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36050iBU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB199505-199905

main47554-36060iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47554-36070iBU14#..EUR,SA;BU101..(ARL,SA)..IV3..TS199505

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47554-36070iBU211..LHD..30T..IV3199505-199905

VENEZUELA SPEC

main47554-36070iBU14#..EUR,SA;BU101..(ARL,SA)..IV3..TS199505

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER)

main47554-37030iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

sub47554-37050

main47554-37080iBU222..EUR199902

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47491-37090iBU21#,22#..40T200107

main47492-28010iBU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505-199905

main47492-37010iBU21#,22#..40T199505-200107

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010iBU101..ARL,GEN;BU211,YU210..30T;BU100,102,11#,14#,212,213,223,RZU100..WT..(15T,20T,25T,30T)..(ARL,GEN)199505-200111

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub47491-36020

main47491-36010iBU101,14#..EUR,SA199505-200111

VENEZUELA SPEC

sub47491-36020

main47491-36020iBU101,141..SA200111

VENEZUELA SPEC

main47491-36020iBU211,YU210..30T;BU10#,111,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN)200111

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47491-37030iBU21#,22#..40T199505-199507

main47491-37040iBU21#,22#..40T199507-200107

RH

main47491-37050iBU21#,22#..40T199507-200107

LH

main47491-37090iBU21#,22#..40T200107

47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-40013iBU10#..ST199505

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47536-36020iBU10#..ST199505

main47536-37080iBU222..EUR199902

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iBU100,102,11#;BU101..175T..GEN;BU212..30T..GEN..IV3;BU101..T3..(ARL,GEN)..TS199505-199905

main47547-27020iBU212..RHD..(25T,30T);BU211,RZU100,YU210..20T,30T;BU101,14#,213,223..T3..WT..(20T,25T,30T)..(ARL,GEN)..TB199905

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47547-37020iBU21#,22#..40T199505

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

main31478-37020iBU21#,22#..40T199505

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36100iBU10#..ST199505-200212

main47550-36191iBU10#,RZU100..WT..(15T,20T)..TB199505-200212

main47550-36200iBU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB199505-199908

main47550-36210iBU101,14#..EUR,SA199505-199908

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47550-36210iBU101,14#..EUR,SA199505-199905

VENEZUELA SPEC

main47550-37050iBU10#,110,111..(DM1,DM6,T3)..WT..20T..(ARL,GEN,TAIW)199505

sub47550-37051

main47550-37070iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

sub47550-37071

main47550-37080iBU222..EUR199902-200110

sub47550-37081

main47550-37111iBU141..25T;BU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR)199905-200209

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub47550-37112

main47550-37112iBU101..T3..WT;BU211..30T..GEN;BU212..30T..IV3;BU14#..(20T,25T)..DSL200209

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub47550-37113

main47550-37120iBU212..RHD..(25T,30T);BU211,RZU100,YU210..20T,30T;BU101,14#,213,223..T3..WT..(20T,25T,30T)..(ARL,GEN)..TB199905

sub47550-37121

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09735iBU10#..ST199505

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081iBU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB199505-199905

main90101-10127iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002iBU101..T3..ST;BU101..T1,T2,TW2;BU100,102,RZU100..WT..(15T,20T)..TB199505-199905

main90201-10287iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47556-37010iBU21#,22#..40T199802

47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)

main47555-36051iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW)199505

main47555-37070iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505-200008

47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)

main47555-36051iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW)199505

main47555-37070iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505-200008

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36100iBU101..ST199505-200212

main47560-36191iBU10#,RZU100..WT..(15T,20T)..TB199505-200212

main47560-36200iBU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB199505

sub47560-36201

main47560-36210iBU101,14#..EUR,SA199505-199905

VENEZUELA SPEC

main47560-36210iBU101,14#..EUR,SA199505-199908

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47560-37020iBU10#,110,111..(DM1,DM6,T3)..WT..20T..(ARL,GEN,TAIW)199505

sub47560-37021

main47560-37040iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

sub47560-37041

main47560-37050iBU222..EUR199902-200110

sub47560-37051

main47560-37081iBU141..25T;BU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR)199905-200209

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER)

sub47560-37082

main47560-37082iBU101..T3..WT;BU211..30T..GEN;BU212..30T..IV3;BU14#..(20T,25T)..DSL200209

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER)

sub47560-37083

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36100iBU10#..ST199505-200212

main47570-36191iBU10#,RZU100..WT..(15T,20T)..TB199505-200212

main47570-36200iBU102,112,212..30T..GEN..IV3199505-199908

main47570-36210iBU211..LHD..30T..IV3199505-199908

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47570-36210iBU101,14#..EUR,SA199505-199905

VENEZUELA SPEC

main47570-37010iBU10#,110,111..(DM1,DM6,T3)..WT..20T..(ARL,GEN,TAIW)199505

sub47570-37011

main47570-37030iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

sub47570-37031

main47570-37040iBU222..EUR199902-200110

sub47570-37041

main47570-37071iBU141..25T;BU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR)199905-200209

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub47570-37072

main47570-37072iBU101..T3..WT;BU211..30T..GEN;BU212..30T..IV3;BU14#..(20T,25T)..DSL200209

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub47570-37073

main47570-37080iBU212..RHD..(25T,30T);BU211,RZU100,YU210..20T,30T;BU101,14#,213,223..T3..WT..(20T,25T,30T)..(ARL,GEN)..TB199905

sub47570-37081

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36100iBU101..ST199505-200212

main47580-36191iBU10#,RZU100..WT..(15T,20T)..TB199505-200212

main47580-36200iBU112,211,RZU100,YU210..20T,30T;BU101,102,14#,212,213,223..(T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)..TB199505

sub47580-36201

main47580-36210iBU141..25T..GEN;BU212..30T..ARL;BU100,101,110,140,142,211..(DM1,T3,TW1)..WT..(20T,25T,30T)..DSL..(ARL,GEN)199505-199905

VENEZUELA SPEC

main47580-36210iBU141..25T..GEN;BU212..30T..ARL;BU100,101,110,140,142,211..(DM1,T3,TW1)..WT..(20T,25T,30T)..DSL..(ARL,GEN)199505-199908

W(FRONT DRUM BRAKE:REAR AUTO ADJUSTER)

main47580-37010iBU10#,110,111..(DM1,DM6,T3)..WT..20T..(ARL,GEN,TAIW)199505

sub47580-37011

main47580-37030iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

sub47580-37031

main47580-37040iBU222..EUR199902-200110

sub47580-37041

main47580-37071iBU141..25T;BU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR)199905-200209

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER)

sub47580-37072

main47580-37072iBU101..T3..WT;BU211..30T..GEN;BU212..30T..IV3;BU14#..(20T,25T)..DSL200209

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER)

sub47580-37073

9015950146

main90159-50146

9020110287

main90201-10287

34 parts on this diagram · 7 diagrams in section
