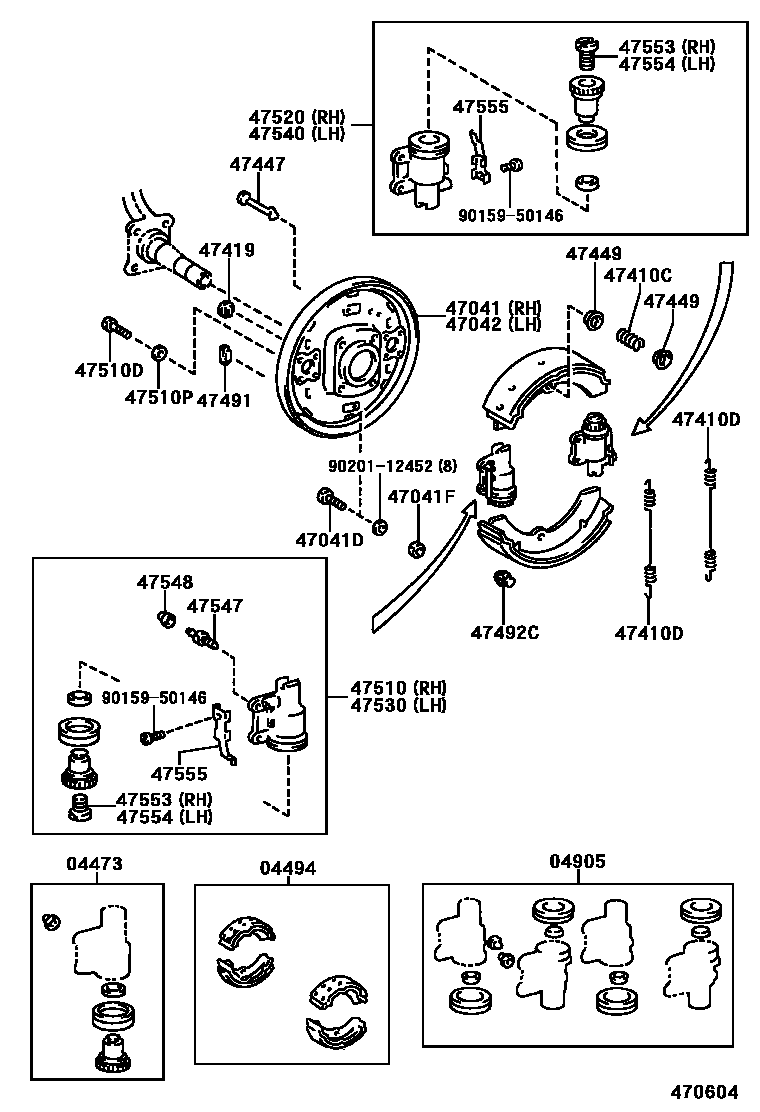

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0005 1 0006 1

04473CYLINDER KIT, FRONT WHEEL

main04473-36030iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

RH

main04473-36040iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

LH

main04473-36070iBU101..T3..ST;BU101..T1,T2,TW2199505-200212

RH

main04473-36080iBU100,101..T3..ST;BU102..(15T,20T)..TB;BU100,101,RZU100..T1,T2,T4,TW2199505-200212

LH

main04473-37010iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

RH

main04473-37020iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

LH

main04473-37030iBU222..EUR199902-200110

RH

main04473-37040iBU222..EUR199902-200110

LH

04494SHOE KIT, FRONT BRAKE

main04494-36150iBU102,RZU100..WT..15T199712-200001

MARK AK LA514

main04494-36160iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

MARK AK LA514

sub04494-36280

main04494-36190iBU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,SA,TAIW)199505-199704

MARK NBK LN519

sub04494-36210

main04494-36210iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN)199704

MARK NBK LN519

sub04494-36290

main04494-37010iBU21#,22#..40T199505-200104

MARK NBK D2146

sub04494-37011

main04494-37030iBU21#,22#..40T200104-200310

MARK NBK D2146

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36110iBU10#,11#,14#,21#,YU210..(DM1,DM6,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,SA,TAIW)199505-199506

sub04905-36140

main04905-36120iBU100,101..T3..ST;BU102..(15T,20T)..TB;BU100,101,RZU100..T1,T2,T4,TW2199505-200212

main04905-36140iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199506

main04905-37030iBU211,221..40T;BU212..RHD..40T;BU222..RHD..GEN;BU222..ARL,SA,TAIW;BU212..LHD..40T..TD199505-199905

main04905-37040iBU222..EUR199902-200110

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36110iBU100,101..ST;BU102..20T..TB199505-199610

sub47041-36111

sub47492-28010

main47041-36111iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199610-200212

main47041-37030iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47041-37050iBU21#,22#..40T199505-199802

sub47041-37081

sub47473-37020

sub47491-37090

sub47556-37010

main47041-37071iBU102,RZU100..WT..15T199712-200001

main47041-37080iBU21#,22#..40T..(ARL,GEN,SA)199802-200107

sub47041-37081

sub47491-37090

main47041-37081iBU21#,22#..40T200107

main47041-37090iBU222..EUR199902-200107

sub47041-37081

sub47491-37090

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12113iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW)199505-200001

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-71200iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW)199505-200001

main94130-01441iBU21#,22#..40T199505

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36110iBU100,101..ST;BU102..20T..TB199505-199610

sub47042-36111

sub47492-28010

main47042-36111iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199610-200212

main47042-37030iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47042-37050iBU21#,22#..40T199505-199802

sub47042-37081

sub47473-37020

sub47491-37090

sub47556-37010

main47042-37071iBU102,RZU100..WT..15T199712-200001

main47042-37080iBU21#,22#..40T..(ARL,GEN,SA)199802-200107

sub47042-37081

sub47491-37090

main47042-37081iBU21#,22#..40T200107

main47042-37090iBU222..EUR199902-200107

sub47042-37081

sub47491-37090

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW)199505

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29006iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

main90507-29004iBU102,RZU100..WT..15T199712-200001

RH

main90507-29005iBU102,RZU100..WT..15T199712-200001

LH

main90507-29006iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011iBU211,YU210..30T;BU10#,111,14#,212,213,223,RZU100..(175T,20T,25T,30T)..(ARL,GEN)199505-200111

main47491-36020iBU211,YU210..30T;BU10#,111,14#,212,213,223..(175T,20T,25T,30T)..(ARL,GEN)200111

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20010iBU102,RZU100..WT..15T199712-200212

main47447-35020iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

main47447-36020iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW)199505

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iBU211,YU210..30T;BU10#,111,14#,212,213,223,RZU100..(175T,20T,25T,30T)..(ARL,GEN)199505-200111

sub47491-36020

main47491-36020iBU211,YU210..30T;BU10#,111,14#,212,213,223..(175T,20T,25T,30T)..(ARL,GEN)200111

main47491-37030iBU21#,22#..40T199505-200107

main47491-37090iBU21#,22#..40T200107

47492CPLUG, HOLE(FOR FRONT BRAKE)

main47491-37090iBU21#,22#..40T200107

main47492-28010iBU101..T3..ST;BU101..T1,T2,TW2199505-200212

main47492-37010iBU21#,22#..40T199505-200107

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36091iBU101..T3..ST;BU101..T1,T2,TW2199505-200212

main47510-36170iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

sub47510-36171

main47510-37050iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

main47510-37060iBU222..EUR199902-200110

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-08081iBU100,101..T3..ST;BU102..(15T,20T)..TB;BU100,101,RZU100..T1,T2,T4,TW2199505-200212

main90101-10127iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-08002iBU100,101..T3..ST;BU102..(15T,20T)..TB;BU100,101,RZU100..T1,T2,T4,TW2199505-200212

main90201-10287iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36091iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

main47520-36162iBU102,RZU100..WT..15T199712-200001

main47520-37030iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47520-37070iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

main47520-37080iBU222..EUR199902-200110

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36091iBU100,101..T3..ST;BU102..(15T,20T)..TB;BU100,101,RZU100..T1,T2,T4,TW2199505-200212

main47530-36170iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

sub47530-36171

main47530-37050iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

main47530-37060iBU222..EUR199902-200110

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36091iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

main47540-36162iBU102,RZU100..WT..15T199712-200001

main47540-37030iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47540-37070iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

main47540-37080iBU222..EUR199902-200110

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iBU211,YU210..30T;BU10#,11#,14#,212,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW)199505-200001

main47547-27020iBU101..WT..GEN;BU211,YU210..30T;BU100,102,11#,14#,212,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN)199905

main47547-37020iBU21#,22#..40T199505

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW)199505-200001

main31478-37020iBU21#,22#..40T199505

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36050iBU102..(15T,20T)..TB;BU100,RZU100..T2,T4,TW2199505-200001

main47553-36060iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47553-37050iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

main47553-37060iBU222..EUR199902-200110

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36040iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

REAR

main47554-36050iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

FRONT

main47554-36050iBU102,RZU100..WT..15T199712-200001

main47554-36060iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47554-37050iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

main47554-37060iBU222..EUR199902-200110

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-36040iBU211,YU210..30T;BU10#,111,14#,212,213,223,RZU100..(175T,20T,25T,30T)..(ARL,GEN)199505-200001

main47555-37050iBU21#,22#..40T..(ARL,GEN,SA,TAIW)199505

9015950146

main90159-50146

9020112452

main90201-12452

27 parts on this diagram · 3 diagrams in section
