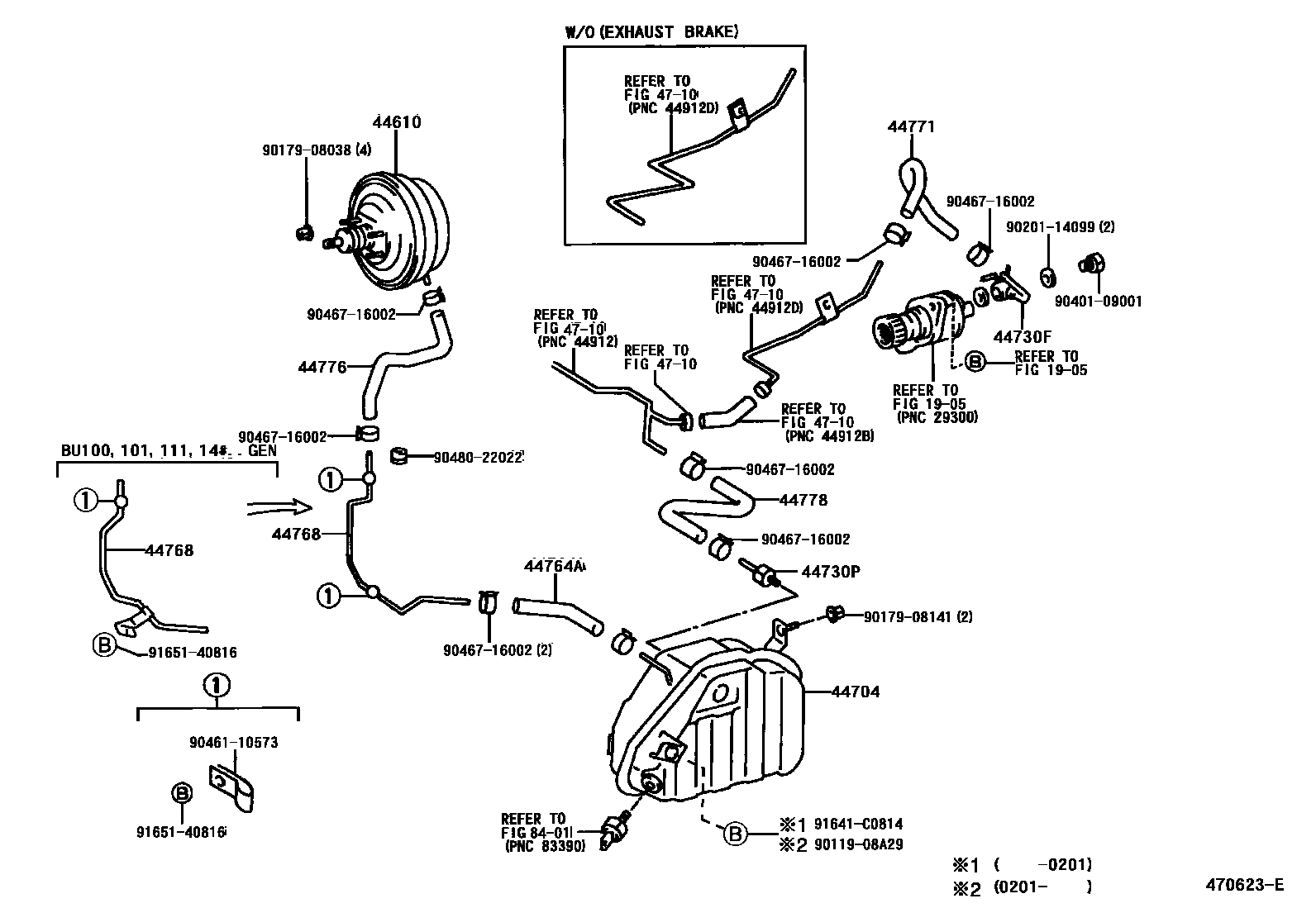

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1905

44610BOOSTER ASSY, BRAKE

main44610-37060iRZU100,YU210..RHD199505

main44610-37070iBU211..30T..GEN;BU100,110,111..DM1,DM6,T2;BU14#..(20T,25T)..(ARL,GEN)199505-199905

main44610-37080iBU100,101,110,14#..(DM1,T3)..WT..(20T,25T)..DSL..(ARL,GEN)199505-199905

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main44610-37090iBU212..RHD..(25T,30T);BU101,14#,213,223..30T;BU101,14#,211..(20T,25T,30T)..(EUR,SA)199505-199905

main44610-37090iBU211..30T..GEN199505

W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER)

main44610-37100iBU21#,22#..40T199505-200008

main44610-37110iBU102..TD;BU101..(T1,T3,TW2)..(175T,20T)..(ARL,GEN)199505-199905

main44610-37130iBU102..15T,20T199505-199905

main44610-37180iRZU100..15T199908

44704RESERVOIR SUB-ASSY, VACUUM

main44704-37030iBU10#,111,14#,211,212,221,222..RHD199505-200201

sub44704-37031

sub90119-08A29

main44704-37031iBU10#,111,14#,211,212,221,222..RHD200201

main44704-37040iBU10#,111,112,14#,21#,22#..LHD199505-200201

sub44704-37041

sub90080-11414

main44704-37041iBU101,111,14#,21#,221,223..LHD200201

main44704-37050iBU142,222..EUR199708

sub44704-37051

sub90080-11414

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iRZU100..15T199908

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51031iYU210199505

main90404-51319iRZU100199703

main90405-09164iBU101..GEN;BU212..30T..DSL;BU212..40T..ARL;BU212,222..LHD..TD..GEN;BU100,102,11#,14#,211,221,222..(DM1,DM7,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..DSL..(ARL,EUR,GEN199505

W(AIR CONDITIONER)

main90405-09164iBU222..SA;BU102,212..(15T,40T)..DSL..(GEN,SA)199712

main90405-09178iBU102,212,222..TAIW;BU100,101,11#,140,141,211,221..DM1,DM6,T1,T2,T3,TW1,TW2199505-200008

main90405-09182iBU222..EUR;BU212,222..RHD..TD..GEN;BU102,142,213,223..TD,TDEFI199605

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iBU10#,111,14#,21#,22#199505-200008

44764TUBE, BOOSTER VACUUM

main44764-37070iRZU100..RHD199703

main44764-37280iRZU100..15T199908

main44912-37060iRZU100..20T199703

W(P.T.O OIL PUMP SEPARATE TYPE)

main44912-37490iRZU100..15T199908

W(P.T.O OIL PUMP SEPARATE TYPE)

44764AHOSE, BOOSTER VACUUM

main44774-37090iBU142,222..EUR199708

main90445-17141iBU10#,11#,14#,21#,22#..ARL,GEN,SA199505-200008

main90445-17142iRZU100..15T199908

44768TUBE, BOOSTER VACUUM

main44768-37010iBU211,212,221,222..RHD199505-200008

main44768-37020iBU21#,22#..LHD..(GEN,TAIW)199505

main44768-37050iBU111..RHD;BU101..RHD..WT..IV3199505-199708

HONG KONG SPEC

main44768-37050iBU101..T1..CBU;BU101,141..RHD..(20T,30T)..GEN..IV3199708-200009

THAILAND SPEC

main44768-37050iBU102,142..RHD;BU100,101,110..ARL199505

main44768-37060iBU101,111,140,141..RHD..(GEN,SA)199505

main44768-37070iBU140..EUR;BU102,112,142..LHD199505-199708

main44768-37080iBU100,101,111,14#..LHD..GEN199505

main44768-37090iBU142..EUR199708

main44768-37100iBU222..EUR199902

44771HOSE, VACUUM TUBE CONNECTOR

main44774-37010iBU10#,11#,14#..DSL199505

main44774-37030iRZU100..RHD199703-200009

main44774-37050iBU102,142..TD199605

main44774-37060iBU212..DSL;BU211..30T..SA;BU211,221..GEN;BU222..ARL,SA,TAIW;BU212,222..LHD..TD..GEN199508

main44774-37080iBU212..LHD..40T..TD199808

CHILE SPEC

main44774-37080iBU213,223;BU222..EUR;BU212,222..RHD..TD..GEN199703

main44774-37170iRZU100..15T199908

main95446-09250iBU211..30T..SA;BU21#,22#..ARL,GEN,TAIW199505-199508

44776HOSE, BRAKE BOOSTER

main44776-37010iBU10#,111,112,14#,211,221,RZU100..LHD199505

main44776-37020iBU142..30T;BU10#,110,111,140,141,211,221,RZU100,YU210..RHD199505-200008

main44776-37030iBU211,221..RHD..40T..GEN..IV3199505-199708

HONG KONG SPEC OR W(*CLB)

main44776-37030iBU211..RHD..CBU;BU142,212,222..RHD;BU211..RHD..30T..GEN..IV3199505-199708

W(*CLB)

main44776-37030iBU212,222..SA;BU212..TD..CBU199808

main44776-37040iBU211,221..LHD199505

W(*CLB)

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-37010iBU21#,22#;BU100,101,110,111,14#..RHD199505-200008

main44778-37030iRZU100,YU210..RHD199505

main44778-37050iBU10#,111,112,14#..LHD199505-199703

sub44778-37010

4710

8401

9011908A29

main90119-08A29

9017908038

main90179-08038

9017908141

main90179-08141

9020114099

main90201-14099

9040109001

main90401-09001

9046110573

main90461-10573

9046716002

main90467-16002

9048022022

main90480-22022

91641C0814

main91641-C0814

9165140816

main91651-40816

24 parts on this diagram · 7 diagrams in section
