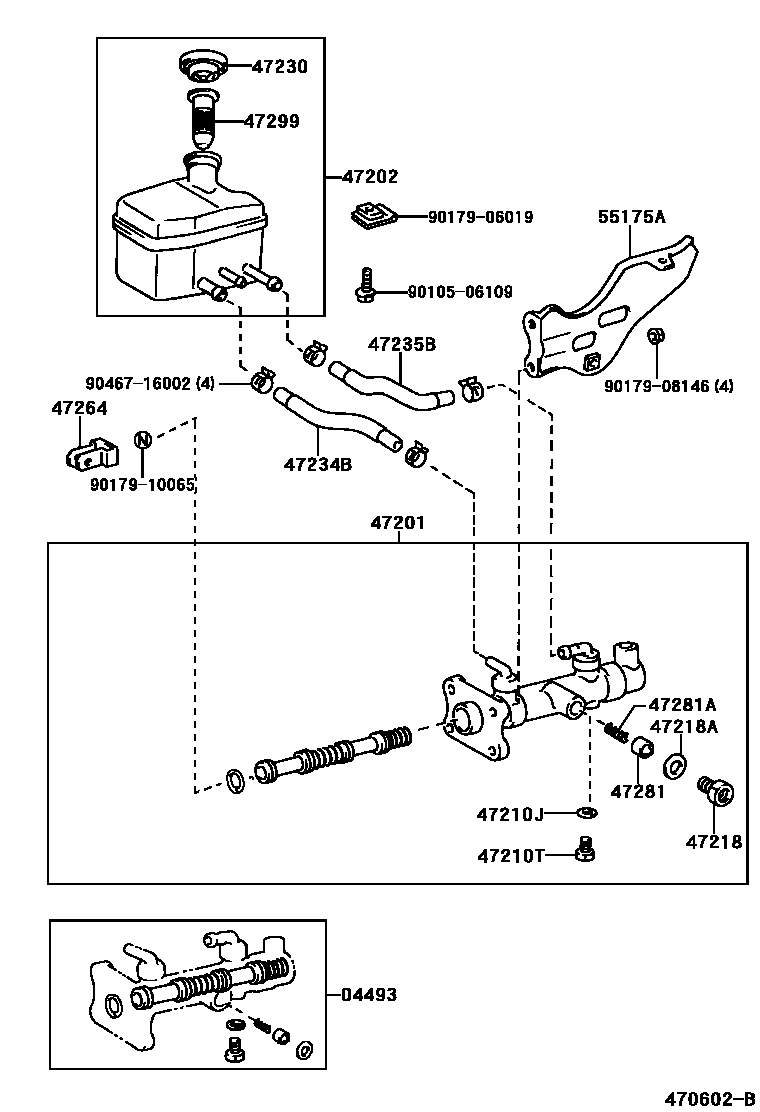

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-37010iBU211..30T..GEN;BU10#,110,111,14#..(15T,175T,20T,25T)..(ARL,GEN,TAIW)199505-199805

sub04493-37011

main04493-37011iBU211..30T..GEN;BU10#,110,111,14#..(15T,175T,20T,25T)..(ARL,GEN)199805-199810

sub04493-37012

main04493-37012iBU211..30T..GEN;BU10#,110,111,14#..(15T,175T,20T,25T)..(ARL,GEN)199810

main04493-37020iBU211..LHD..30T..IV3199505-199805

VENEZUELA SPEC

sub04493-37021

main04493-37020iBU211..LHD..30T..IV3199505-199805

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub04493-37021

main04493-37020iBU211..LHD..30T..IV3199505-199805

W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER)

sub04493-37021

main04493-37021iBU212..TD..CBU199808-199810

sub04493-37022

main04493-37021iBU142..ARL,EUR;BU212..TD..IV3;BU102,212..(30T,40T)..DSL;BU100,101,110,112,140,141,211,22#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT199805-199810

W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER)

sub04493-37022

main04493-37022iBU142..30T;BU212,222..DSL..SA200005

main04493-37022iBU101..T3..WT;BU222..TD..SA;BU110,142..ARL,EUR;BU102,112,140,141,211,213,221,223,YU210..25T,30T,40T;BU100,212,222,RZU100..(DM6,T3,TW1)..WT..(ARL,EUR,GEN)199810-200008

W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-37020iBU211..RHD..30T..GEN;BU101,102,111,14#..RHD..(175T,20T,25T)..(ARL,GEN)199505-199905

main47201-37030iBU211..RHD..30T..GEN;BU100,101,110,14#..RHD..(DM1,T3)..(20T,25T)..(ARL,GEN)199505-199905

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER)

main47201-37030iBU211..RHD..40T;BU141,RZU100..20T,30T;BU142,212,221,222..RHD..(25T,30T,40T);BU101,141,211,YU210..(20T,25T,30T)..SA199505-200008

main47201-37060iBU211..LHD..30T;BU10#,111,14#..LHD..(15T,175T,20T,25T)..(GEN,TAIW)199505-199905

main47201-37070iBU142,222..EUR;BU211..LHD..40T;BU212..LHD..40T..TD;BU101,213,221,223..LHD..WT..TB199505-199905

main47201-37070iBU211..LHD..30T;BU100,101,140,141..LHD..WT..(20T,25T)..GEN199505

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37020iBU10#,111,14#,211,212,221,222,RZU100,YU210..RHD199505-200008

main47220-37040iBU10#,111,112,14#,21#,22#,RZU100..LHD199505

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBU10#,11#,14#,21#,22#,RZU100,YU210199505

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBU10#,11#,14#,21#,22#,RZU100,YU210199505

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36070iBU10#,11#,14#,21#,22#,RZU100,YU210199505

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iBU10#,11#,14#,21#,22#,RZU100,YU210199505

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

47234BTUBE, RESERVOIR, NO.1

main47234-37020iBU211..RHD..30T..GEN199505

main47234-37030iBU211..30T..SA;BU211..RHD..40T;BU212,221,222,YU210..RHD199505-200008

main47234-37030iBU211..RHD..30T..GEN199505

W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER)

main47234-37040iBU21#,22#..LHD199505

main47234-37050iBU101,141..SA;BU141,142,RZU100..(20T,30T)..GEN199505

main47234-37060iBU10#,110,111,14#..RHD..(175T,20T,25T)..(ARL,GEN)199505

main47234-37070iBU10#,111,112,14#,RZU100..LHD199505

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37020iBU211,212,221,222,YU210..RHD199505-200008

main47235-37030iBU21#,22#..LHD199505

main47235-37040iBU10#,110,111,14#..RHD..(175T,20T,25T)..(ARL,GEN)199505

main47235-37050iBU101,141..SA;BU141,142,RZU100..(20T,30T)..GEN199505

main47235-37060iBU10#,111,112,14#,RZU100..LHD199505

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-28010iBU102..TD;BU100,101..(T1,T3,TW2)..(175T,20T)..(ARL,GEN)199505

main47264-50010iBU102..DSL;BU222..TD..SA;BU212..ARL,GEN,TAIW;BU142,222..(20T,25T,40T)..(ARL,EUR,GEN,TAIW);BU100,101,11#,140,141,211,213,221,223,RZU100,YU210..WT199505-200008

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47264-50010iBU142..30T;BU212,222..DSL..SA200005

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020iBU10#,11#,14#,21#,22#,RZU100,YU210199505

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90501-05012iBU10#,11#,14#,21#,22#,RZU100,YU210199505

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-37010iBU100..WT..TS;BU101..WT..20T..(ARL,GEN)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main55175-37020iBU212;BU211..40T;BU101,141,211..SA;BU101,14#,213,22#,YU210..30T,40T199505-200110

main55175-37020iBU211..T3..30T..GEN199505

W(FR DISC BRAKE: RR AUTO ADJUSTER OR TANDEM BOOSTER)

main55175-37020iBU211..TW1199610

W(TANDEM BOOSTER)

main55175-37030iBU102..TD;BU100,101..(T1,T3,TW2)..(175T,20T)..(ARL,GEN)199505

9010506109

main90105-06109

9017906019

main90179-06019

9017908146

main90179-08146

9017910065

main90179-10065

9046716002

main90467-16002

20 parts on this diagram · 1 diagram in section
