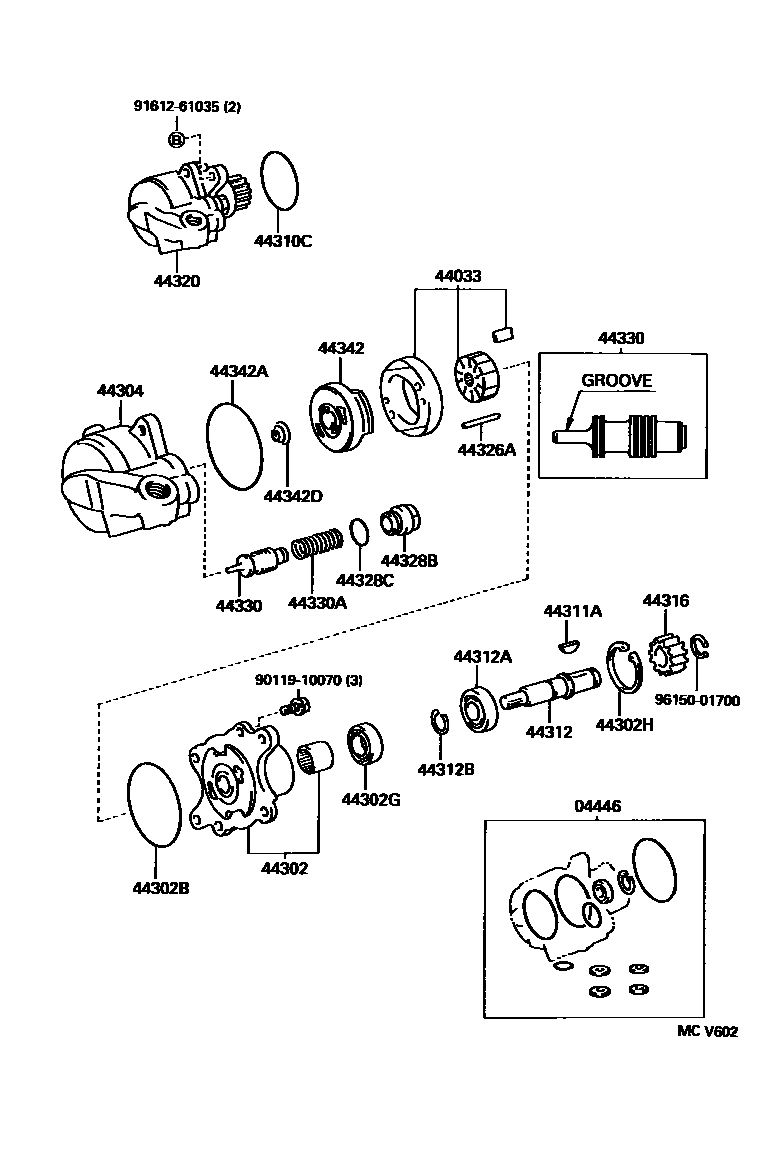

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36081iBU222;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200111

main04446-36110iRZU100199703

main04446-60100iBU213,223199908

sub04446-37040

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36060iBU141,211,212,222..CBU,IV3;BU10#,111,142,221,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN)199505-200203

main44033-60010iBU213,223199908

sub44033-EV010

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36170iRZU100199703

main44302-36230iBU141,212,222;BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)199505-200203

main44302-36290iBU213,223199908

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iBU141,211,212,222..CBU,IV3;BU10#,111,142,221,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN)199505-200203

main90029-20056iBU213,223199908

INNER

main90029-20057iBU213,223199908

OUTER

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21018iBU141,212,222,RZU100;BU142,211..(20T,25T,30T)..(ARL,EUR,SA);BU10#,11#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,GEN)..(CBU,IV3)199505-200203

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90029-52011iBU213,223199908

main96151-04000iBU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200203

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36170iRZU100199703

main44304-36230iBU222;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200203

main44304-60040iBU213,223199908

44310CRING, O(FOR VANE PUMP)

main90301-60002iBU222;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200203

44311PULLEY, VANE PUMP

main44311-36060iRZU100199703

44311AKEY, VANE PUMP PULLEY

main90029-18001iBU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200203

44312SHAFT, VANE PUMP

main44312-36100iRZU100199703

main44312-36110iBU141,211,212,222..CBU,IV3;BU101,111,142,221..DSL..(ARL,GEN)199505-200203

main44312-60030iBU213,223199908

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBU141,211,212,222..CBU,IV3;BU10#,111,142,213,221,223..(175T,20T,30T,40T)..(ARL,GEN)199505-200203

main90029-36004iRZU100199703

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBU141,211,212,222..CBU,IV3;BU10#,111,142,213,221,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN)199505-200203

44316GEAR, VANE PUMP

main44316-36020iBU222;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200203

main44316-37020iBU213,223199908

44320PUMP ASSY, VANE

main44310-37030iBU212,222..40T;BU211,221..40T..GEN..(CBU,IV3)199505

main44310-37070iBU141;BU142..ARL,EUR;BU10#,11#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,GEN)199505-200203

main44310-37080iBU21#..(25T,30T)..(ARL,GEN,TAIW)199505-199905

main44310-37130iBU213,223199908

main44320-37030iRZU100199703

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iBU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200203

L=29.1

main90029-14205iBU213,223199908

L=25.8

44328BEND, VANE PUMP HOUSING

main44328-89101iBU141,211,212,222..CBU,IV3;BU101,111,142,221,RZU100..(DSL,EFI)..(ARL,GEN)199505-200203

subS4432-61180

44328CRING, O(FOR PUMP HOUSING END)

main90029-20058iBU213,223199908

main96711-19020iBU141,211,212,222..CBU,IV3;BU10#,111,142,221,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN)199505-200203

44330VALVE ASSY, FLOW CONTROL

main40410-37090iBU213,223199908

MARK C

main40420-37090iBU213,223199908

MARK B

main40430-37090iBU213,223199908

MARK A

main44330-36021iBU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW)199505-200203

TWO GROOVE

main44330-36030iBU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW)199505-200203

ONE GROOVE

main44330-36040iBU141;BU142..ARL,EUR;BU10#,11#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,GEN)199505-200203

NO GROOVE

main44330-36050iBU211,212..25T,30T199505-199905

TWO GROOVE

main44330-36060iBU21#..(25T,30T)..(ARL,GEN,TAIW)199505-199905

ONE GROOVE

main44330-36070iBU211,212..25T,30T199505-199905

NO GROOVE

main44330-36080iRZU100199703

TWO GROOVE

main44330-36090iRZU100199703

ONE GROOVE

main44330-36100iRZU100199703

NO GROOVE

main44330-36110iBU212,222..40T;BU211,221..40T..GEN..(CBU,IV3)199505

TWO GROOVE

main44330-36120iBU212,222..40T;BU211,221..40T..GEN..(CBU,IV3)199505

ONE GROOVE

main44330-36130iBU212,222..40T;BU211,221..40T..GEN..(CBU,IV3)199505

NO GROOVE

main44330-37090iBU213,223199908

MARK D

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iBU141,211,212,222..CBU,IV3;BU10#,111,142,221,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN)199505-200203

main90029-60013iBU213,223199908

44342PLATE, VANE PUMP SIDE, REAR

main44342-36060iBU141,211,212,222..CBU,IV3;BU10#,111,142,221,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN)199505-200203

main44342-60050iBU213,223199908

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main96711-24060iBU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200203

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60003iBU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200203

9011910070

main90119-10070

9161261035

main91612-61035

9615001700

main96150-01700

26 parts on this diagram · 4 diagrams in section
