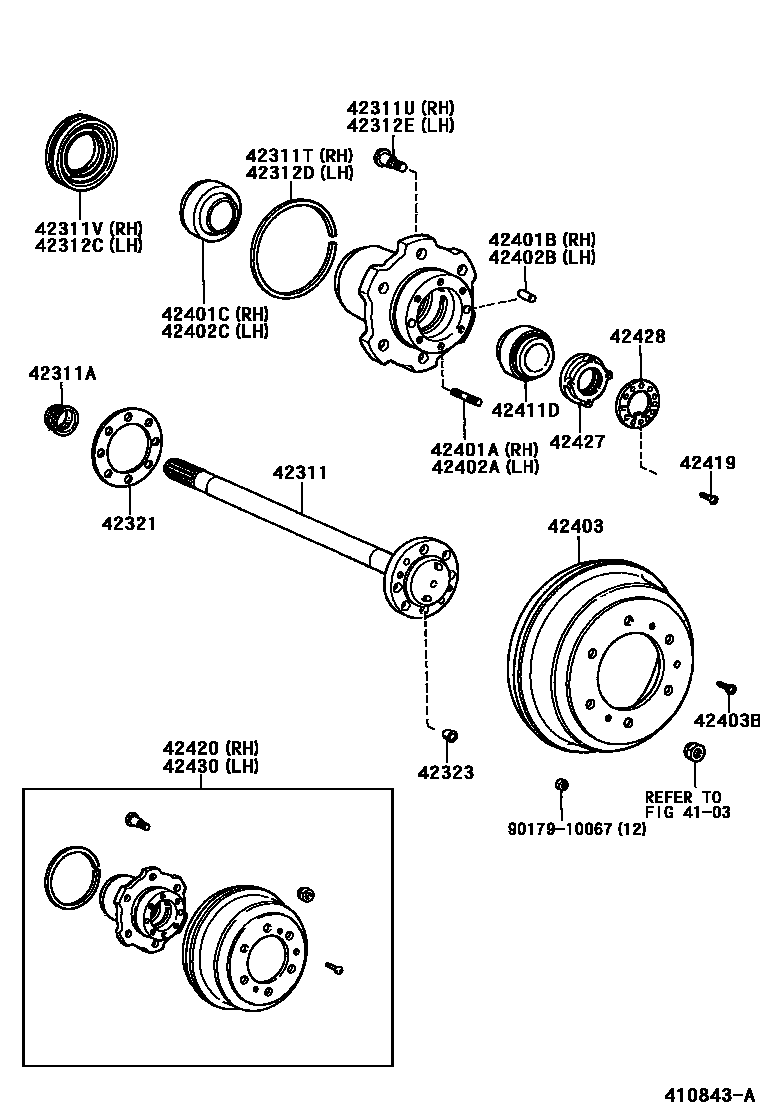

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

4103

42311SHAFT, REAR AXLE

main42311-36051iBU10#,14#..(T1,T3,TW2)..(15T,175T,20T,25T)..DSL..(ARL,GEN,SA,TAIW)199505

main42311-36091iBU100,101..ARL..TB199708

main42311-36131iBU21#,22#..40T199505-200008

main42311-36151iBU102,RZU100..WT..(15T,20T)..TB199505

main42311-36171iBU11#,RZU100..20T,30T199505

main42311-36181iBU141..LHD199505

HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL)

main42311-36181iBU140..EUR;BU102,142..TD;BU101,102,141..30T199505

HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)

main42311-37050iBU21#,223,YU210..25T,30T199505

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-38033iBU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS)199505

main90310-40001iBU141..LHD199505

HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL)

main90310-40001iBU140..EUR;BU102,142..TD;BU11#,212,RZU100..20T,25T,30T;BU101,102,141,211,213,223,YU210..30T199505

HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)

main90310-41001iBU21#,22#..40T199505-200008

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-99065iBU10#..ST199505

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02024iBU10#..ST199505

main90942-02045iBU21#,22#..40T199505-200008

main90942-02050iBU10#,RZU100..WT..(15T,20T)..TB199505

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90311-75003iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

main90311-88102iBU21#,22#..40T199505-200008

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90311-75003iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

main90311-88102iBU21#,22#..40T199505-200008

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-99065iBU10#..ST199505

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02025iBU10#..ST199505

main90942-02046iBU10#,11#,14#,21#,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)199505-200008

main90942-02051iBU10#,RZU100..WT..(15T,20T)..TB199505

42321GASKET, REAR AXLE SHAFT

main42321-36020iBU21#,22#..40T199505-200008

main42321-36050iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010iBU141..LHD199505

HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)

main42323-36010iBU141..LHD199505

HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL)

main42323-36020iBU21#,22#..40T199505-200008

42401ABOLT, STUD (FOR REAR AXLE HUB RH)

main90116-10191iBU141..RHD..25T..GEN;BU100,101,140..WT..(20T,25T)..GEN199505

HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)

main90116-10191iBU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS)199505

HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL)

main90116-12009iBU21#,22#..40T199505-200008

42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)

main90250-10055iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

main90250-13066iBU21#,22#..40T199505-200008

42401CBEARING (FOR REAR AXLE HUB INNER RH)

main90368-57010iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

main90368-66006iBU21#,22#..40T199505-200008

42402ABOLT, STUD (FOR REAR AXLE HUB LH)

main90116-10191iBU141..LHD199505

HEAVY DUTY SPEC & W(12INCHES REAR DIFFERENTIAL)

main90116-10191iBU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS)199505

HEAVY LOAD SPEC & W(12INCHES REAR DIFFERENTIAL)

main90116-12009iBU21#,22#..40T199505-200008

42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)

main90250-10055iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

main90250-13066iBU21#,22#..40T199505-200008

42402CBEARING (FOR REAR AXLE HUB INNER LH)

main90368-57010iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

main90368-66006iBU21#,22#..40T199505-200008

42403DRUM SUB-ASSY, REAR BRAKE

main42431-36090iBU100,101..ARL..TB199708

main42431-36100iBU102,RZU100..WT..(15T,20T)..TB199505

main42431-37020iBU21#,22#..40T199505-200008

main42431-37030iBU10#,11#,14#,21#,YU210..(DM1,DM6,T3,TW1)..WT..(20T,25T,30T)199505-199605

main43512-36020iBU10#..ST199505

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035iBU10#..ST199505

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90368-52043iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

main90368-57046iBU21#,22#..40T199505-200008

42419SCREW, REAR AXLE BEARING LOCK NUT

main93311-16012iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-36050iBU10#..ST199505

main42420-36100iBU100,101..ARL..TB199708

sub42420-29035

main42420-36110iBU102,RZU100..WT..(15T,20T)..TB199505

main42420-37030iBU21#,22#..40T199505-200008

main42420-37900iBU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW)199505

main42420-37901iBU141..LHD199505

HEAVY DUTY SPEC & W(12INCHIS DIFFERENTIAL)

main42420-37901iBU141..LHD199505

HEAVY DUTY SPEC

main42420-37901iBU102,142..TD;BU11#,212,RZU100..20T,25T,30T;BU101,102,141,211,213,223,YU210..30T199505-199605

42427NUT, REAR AXLE BEARING LOCK

main42427-36020iBU21#,22#..40T199505-200008

main42427-36030iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

42428PLATE, REAR AXLE LOCK NUT

main42428-36020iBU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T199505

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-36050iBU10#..ST199505

main42430-36100iBU100,101..ARL..TB199708

sub42430-29035

main42430-36110iBU102,RZU100..WT..(15T,20T)..TB199505

main42430-37030iBU21#,22#..40T199505-200008

main42430-37900iBU10#,14#..T3..WT..(20T,25T)..DSL..(ARL,GEN,SA,TAIW)199505

main42430-37901iBU102,142..TD;BU11#,212,RZU100..20T,25T,30T;BU101,102,141,211,213,223,YU210..30T199505-199605

main42430-37901iBU141..RHD..25T..GEN;BU100,101,140..WT..(20T,25T)..GEN199505

HEAVY DUTY SPEC

main42430-37901iBU141..RHD..25T..GEN;BU100,101,140..WT..(20T,25T)..GEN199505

HEAVY DUTY SPEC & W(12INCHIS DIFFERENTIAL)

9017910067

main90179-10067

26 parts on this diagram · 4 diagrams in section
