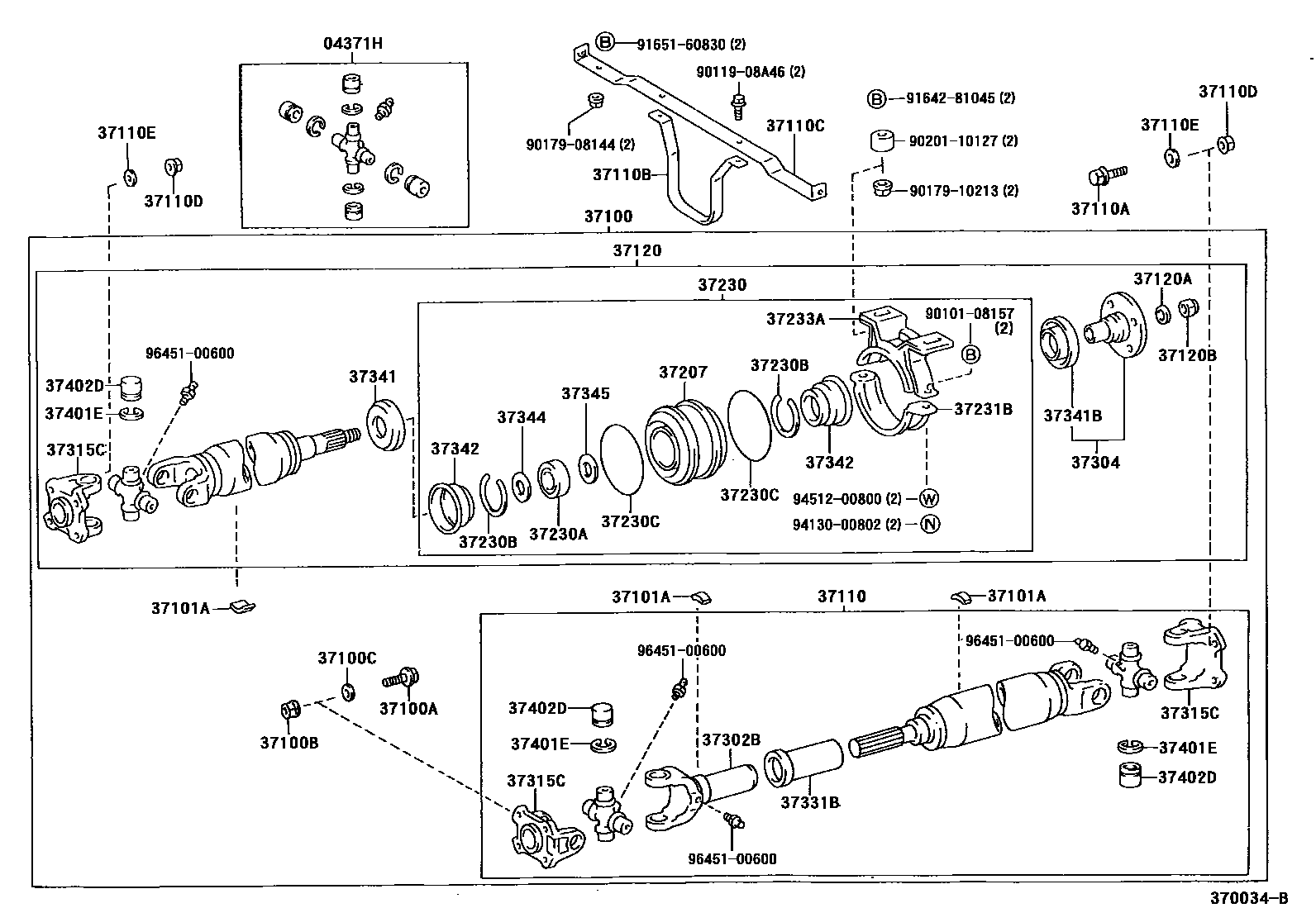

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

main04371-36030iBU10#,11#,RZU100199505-200008

sub04371-60210

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-36390iYU210199505-200008

sub37100-36391

main37100-36391iYU210200008

main37100-36420iBU211..40T..SA199505-200008

sub37100-36421

main37100-36530iBU211,212..25T,30T199505-200008

sub37100-36531

main37100-36531iBU211,212..25T,30T200008

main37100-36540iBU212..40T;BU211..40T..GEN199505-200008

sub37100-36541

main37100-36541iBU211,212..40T200008

main37100-36550iBU222;BU221..GEN199505-200008

sub37100-36551

main37100-36551iBU221,222200008

main37100-36580iBU221..SA199505-200005

sub37100-36581

main37100-36640iBU140..GEN199505-199905

sub37100-36641

main37100-36650iBU140..GEN199505-199610

HEAVY LOAD SPEC

sub37100-36651

main37100-37070iBU140199610-199905

HEAVY LOAD SPEC

sub37100-37071

main37100-37070iBU141,142199610-200008

sub37100-37071

main37100-37071iBU14#200008

main37100-37100iBU213..30T199908-200008

sub37100-37101

main37100-37101iBU213..30T200008

main37100-37120iBU223199908-200008

sub37100-37121

main37100-37121iBU223200008

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-11013iBU14#,21#,22#,YU210199505-200008

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-11005iBU14#,21#,22#,YU210199505-200008

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-11013iBU14#,21#,22#,YU210199505-200008

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

10G,L=20.7

main90937-01136iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

20G,L=41.4

main90937-01140iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

30G,L=62.2

main90937-01147iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

2G,T=2.0

main90937-01148iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

4G,T=2.0

main90937-01149iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

6G,L=12.4

main90937-01150iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

8G,L=16.6

main90937-01151iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

12G,L=24.9

main90937-01152iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

14G,L=29.0

main90937-01153iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

16G,L=33.2

main90937-01154iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

18G,L=37.3

main90937-01155iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

22G,L=45.6

main90937-01156iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

24G,L=49.7

main90937-01157iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

26G,L=53.9

main90937-01158iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

28G,L=58.1

main90937-01184iBU10#,11#,RZU100199505

4G,T=1.6

main90937-01191iBU10#,11#,RZU100199505

8G,T=1.6

main90937-01192iBU10#,11#,RZU100199505

12G,T=4.5

main90937-01193iBU10#,11#,RZU100199505

16G,T=4.5

main90937-01194iBU10#,11#,RZU100199505

20G,T=4.5

main90937-01198iBU10#,11#,RZU100199505

24G,T=4.5,L=25.1

main90937-01199iBU10#,11#,RZU100199505

28G,T=6,L=22.7

main90937-01200iBU10#,11#,RZU100199505

32G,T=6,L=24.3

main90937-01268iBU10#,11#,RZU100199505

36G,L=23.1,T=8.0

main90937-01269iBU10#,11#,RZU100199505

40G,L=25.6

main90937-01270iBU10#,11#,RZU100199505

44G,L=22.6

main90937-01271iBU10#,11#,RZU100199505

48G,L=24.6

main90937-01272iBU10#,11#,RZU100199505

52G,L=26.7

main90937-01273iBU10#,11#,RZU100199505

56G,L=28.7

main90937-01274iBU10#,11#,RZU100199505

60G,L=28.7

37110SHAFT ASSY, PROPELLER

main37110-36500iBU100,RZU100199505

main37110-36560iYU210199505

main37110-36570iBU21#..25T,30T199505

main37110-36590iBU21#..40T199505-200008

main37110-36610iBU221,222199505

main37110-36630iBU101,102,11#199505

main37110-36630iBU100..WT..GEN199505-199905

HEAVY LOAD SPEC

main37110-36660iBU140..GEN199505-199905

main37110-36680iBU140..GEN199505-199610

HEAVY LOAD SPEC

main37110-37130iBU140199610-199905

HEAVY LOAD SPEC

main37110-37130iBU141,142199610

main37110-37150iBU223199908

37110ABOLT (FOR PROPELLER SHAFT)

main90105-11013iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

*11-1.00PX28-16

37110BGUARD, PROPELLER SHAFT

main51569-36120iBU222..LHD;BU212..30T..TD;BU212..DSL..GEN..IV3199702-200005

main51569-36120iBU211..RHD..40T..GEN..IV3199505

THAILAND SPEC

main51569-37010iBU112199703-199908

main51569-37070iBU101..T1..CBU;BU101..RHD..GEN..IV3199505-200008

THAILAND SPEC

main51569-37070iBU102199703

main51569-37110iRZU100..15T199908-200005

main51569-37110iBU141..30T199505

THAILAND SPEC

37110CBRACKET, PROPELLER SHAFT GUARD

main51568-36020iBU222..LHD;BU212..30T..TD;BU212..DSL..GEN..IV3199702-200005

main51568-36020iBU211..RHD..40T..GEN..IV3199505

THAILAND SPEC

main51568-37010iBU112199703-199908

main51568-37040iBU102..15T,20T199703-199908

main51568-37040iBU101..T1199505-200008

THAILAND SPEC

main51568-37050iBU102..30T199703-199708

sub51568-37051

main51568-37050iBU101..RHD..WT..IV3199505-199708

THAILAND SPEC

sub51568-37051

main51568-37051iBU102..30T;BU101,102..RHD..WT..GEN..IV3199708

main51568-37080iBU142;BU141..25T200005

main51568-37080iBU141..30T199505

THAILAND SPEC

main51568-37121iRZU100..15T199908

37110DNUT (FOR PROPELLER SHAFT)

main90179-11005iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

37110EWASHER (FOR PROPELLER SHAFT)

main90201-11013iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-36300iBU140..GEN199505-199905

sub37120-36301

main37120-36310iYU210199505-200008

sub37120-36311

main37120-36311iYU210200008

main37120-36390iBU211,212..25T,30T199505-200008

sub37120-36391

main37120-36391iBU211,212..25T,30T200008

main37120-36400iBU212,222..40T;BU211,221..40T..GEN199505-200008

sub37120-36401

main37120-36401iBU211,212,221,222..40T200008

main37120-36430iBU141,142;BU140,211,221..(25T,40T)..(EUR,SA)199505-200008

sub37120-36431

main37120-36430iBU140..GEN199505-199905

HEAVY LOAD SPEC

sub37120-36431

main37120-36431iBU14#200008

main37120-37060iBU213..30T199908-200008

sub37120-37061

main37120-37061iBU213..30T200008

main37120-37080iBU223199908-200008

sub37120-37081

main37120-37081iBU223200008

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-20005iBU14#,21#,22#,YU210199505-200008

OD=33.5,T=4.0

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-20006iBU14#,21#,22#,YU210199505-200008

37207CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1

main37207-35011iBU14#,21#,22#,YU210199505-200008

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-36062iBU14#,21#,22#,YU210199505-200008

sub37230-36063

main37230-36063iBU14#,21#,22#,YU210200008

37230ABEARING, NO.1 (FOR CENTER SUPPORT)

main90363-30029iBU14#,21#,22#,YU210199505-200008

37230BRING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)

main90521-66077iBU14#,21#,22#,YU210199505-200008

37230CRING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)

main90522-97001iBU14#,21#,22#,YU210199505-200008

37231BHOUSING, CENTER SUPPORT BEARING, NO.1

main37231-36020iBU14#,21#,22#,YU210199505-200008

sub37231-36021

main37231-36021iBU14#,21#,22#,YU210200008

37233AHOUSING, CENTER SUPPORT BEARING, NO.2

main37233-36050iBU14#,21#,22#,YU210199505-200008

37302BYOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE

main37302-36020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-36030iBU14#,21#,22#,YU210199505-200008

37315CYOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE

main37315-36020iBU14#,21#,22#,YU210199505-200008

sub37315-60090

37331BCOVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST

main37305-36020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1

main37341-36010iBU14#,21#,22#,YU210199505-200008

37341BDEFLECTOR, PROPELLER SHAFT DUST, NO.5

main37341-36010iBU14#,21#,22#,YU210199505-200008

37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2

main37342-36010iBU14#,21#,22#,YU210199505-200008

37344DEFLECTOR, PROPELLER SHAFT DUST, NO.3

main37344-36010iBU14#,21#,22#,YU210199505-200008

37345DEFLECTOR, PROPELLER SHAFT DUST, NO.4

main37345-36010iBU14#,21#,22#,YU210199505-200008

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-29024iBU14#,21#,22#,YU210199505-200008

T=2.00,NO MARK

main90520-29025iBU14#,21#,22#,YU210199505-200008

T=2.03,BROWN

main90520-29026iBU10#,11#,RZU100199505-200008

T=2.06,BLUE

main90520-29027iBU10#,11#,RZU100199505-200008

T=2.09,NO MARK

37402DBEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER

main37402-36070iBU14#,21#,22#,YU210199505-200008

main37402-36080iBU14#,21#,22#,YU210199505-200008

WHITE PAINTED

9010108157

main90101-08157

9011908A46

main90119-08A46

9017908144

main90179-08144

9017910213

main90179-10213

9020110127

main90201-10127

9164281045

main91642-81045

9165160830

main91651-60830

9413000802

main94130-00802

9451200800

main94512-00800

9645100600

main96451-00600

43 parts on this diagram · 2 diagrams in section
