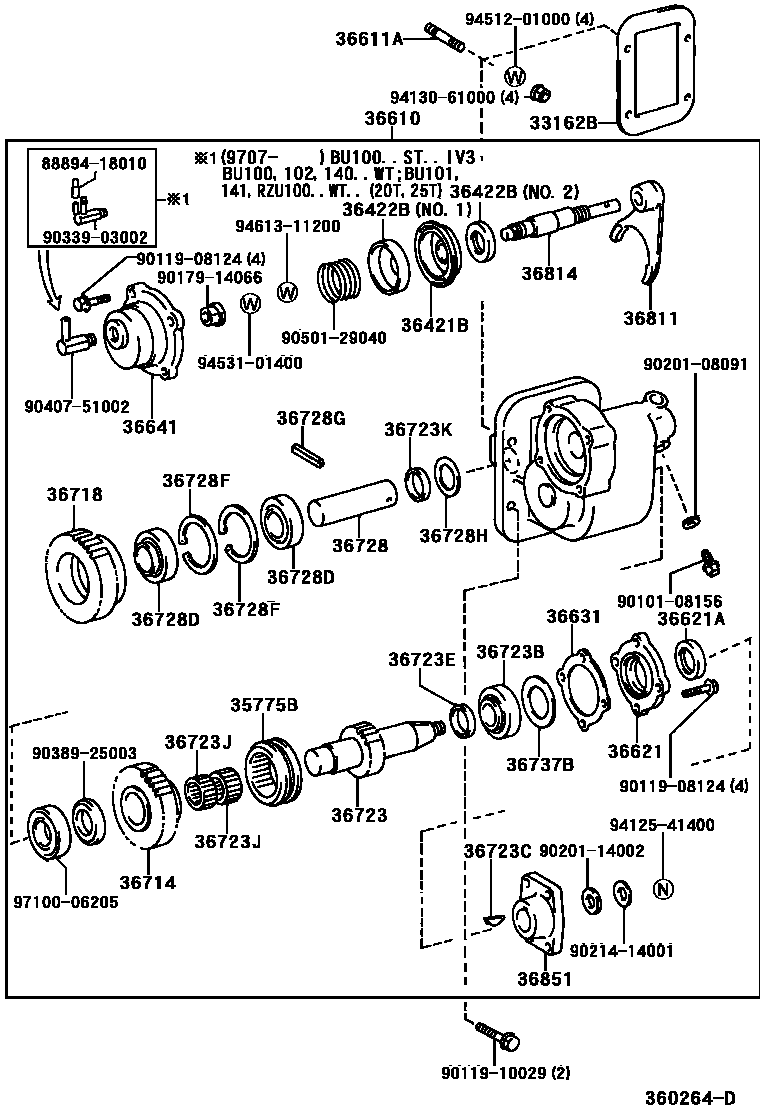

POWER TAKE-OFF CASE & GEAR

0001 1SEPARATE TYPE VACUUM P.T.O 0005 1 0008 1 0010 1 0011 1 0012 1SEPARATE TYPE MANUAL LEVER P.

33162BGASKET, POWER TAKE-OFF COVER

main33162-96300iBU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,11#,14#,211,221..WT..(ARL,EUR,GEN,TAIW)199505-200212

sub33162-37030

35775BSLEEVE, OUTPUT SHAFT

main35775-93100iBU213..40T199505-200212

36421BDIAPHRAGM (FOR POWER TAKE-OFF)

main36421-93100iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

sub36421-37010

main36421-93100iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

sub36421-37010

36422BPLATE, DIAPHRAGM (FOR POWER TAKE-OFF)

main36422-93100iBU213..40T199505-200212

NO.1

main36422-93100iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O,NO.1

main36422-93101iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

NO.2

main36422-93101iBU101..T3..ST..IV3..TS;BU101,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O,NO.2

36610POWER TAKE-OFF ASSY

main36610-37030iBU110199505-199905

main36610-37040iBU111..CBU199505-200212

main36610-93116iBU140..EUR;BU212..40T..DSL..GEN;BU101,141,211,221..(30T,40T)..GEN..(CBU,IV3)199505-200212

main36610-93116iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

HEAVY LOAD SPEC & SEPARATE TYPE VACUUM P.T .O

main36610-93117iBU101,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

main36610-93117iBU102..WT..DSL;RZU100..15T,20T;BU100,101..ARL..IV3;BU100,101..T3..ST..IV3..TS199505-200212

main36610-93118iBU142,212,222..ARL;BU212..LHD..40T..TD199505-200212

main36610-93124iBU112199703-199908

main36610-93124iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

main36610-93125iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

HEAVY LOAD SPEC & SEPARA TYPE MANUAL LEVER P.T.O

main36610-93128iBU213..40T199908

36611CASE, POWER TAKE-OFF

main36611-36040iBU110,111..CBU199505

main36611-93106iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505

HEAVY LOAD SPEC & SEPARA TYPE MANUAL LEVER P.T.O

main36611-93110iBU112199703-199908

main36611-93110iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505

SEPARATE TYPE MANUAL LEVER P.T.O

36611ABOLT, STUD (FOR POWER TAKE-OFF CASE)

main90116-10103iBU110,111..CBU199505-200212

main90116-10103iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

36621RETAINER, POWER TAKE-OFF BEARING

main36621-93200iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O OR SEPARATE TYPE MANUAL LEVER P.T.O

main36621-93200iBU141..RHD..25T..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

main36621-93200iBU101..30T;BU212..LHD..40T;BU100,101,212..ARL..IV3;BU213,RZU100..15T,20T,40T;BU100,101..T3..ST..IV3..TS;BU102,111,112,141,142,211,221,222..(DM6,DM7,T2,T3,T4,TW1)..W199505-200212

36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)

main90311-25110iRZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

main90311-25110iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O OR SEPARATE TYPE MANUAL LEVER P.T.O

main90311-25110iBU141..RHD..25T..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

36631GASKET, POWER TAKE-OFF BEARING RETAINER

main36631-36030iBU110,111..CBU199505-200212

main36632-93101iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

main36632-93101iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

main36632-93200iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

36641CAP, POWER TAKE-OFF SHIFT SHAFT

main36641-93100iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

main36641-93100iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

36714GEAR, POWER TAKE-OFF OUTPUT

main36714-36040iBU110,111..CBU199505-200212

main36714-93101iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

main36714-93108iBU102..WT..DSL;RZU100..15T,20T;BU212..LHD..40T;BU100,101,212..ARL..IV3;BU100,101..T3..ST..IV3..TS;BU101,141,142,211,221,222..(T3,TW1)..WT..(20T,30T,40T)..DSL..(ARL,199505-200212

main36714-93108iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

main36714-93111iBU213..40T199908

36718GEAR, POWER TAKE-OFF IDLER

main36718-36040iBU111..CBU199505-200212

main36718-36050iBU110199505-199905

main36718-93107iBU111,112..20T..IV3199505-200212

HEAVY LOAD SPEC & SEPARA TYPE MANUAL LEVER P.T.O

main36718-93109iBU112199703-199908

main36718-93109iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

main36718-93112iBU101,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

main36718-93112iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

main36718-93114iBU213..40T199908

36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1

main36723-93101iBU111,112..IV3199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

main36723-93107iBU101,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

main36723-93107iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

36723BBEARING (FOR OUTPUT SHAFT REAR)

main90366-22001iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

T=16.25

main90366-22001iBU101,141..WT..(20T,25T)..GEN199505-200212

T=16.25,SEPARATE TYPE VACUUM P.T.O

main90366-25011iBU213..40T199908

T=14

main90564-42003iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

T=0.17-0.23,SEPARATE TYPE VACUUM P.T.O

main90564-42003iBU100..ST..IV3;BU102..WT..TAIW;BU212..30T..ARL;BU100,141,142..RHD..T3..(20T,25T)..(ARL,GEN)199505-200212

T=0.17-0.23

main97100-06205iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

36723CKEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)

main90280-07011iRZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

main90280-07011iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O OR SEPARATE TYPE MANUAL LEVER P.T.O

main90280-07011iBU141..RHD..25T..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

36723ESPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)

main90560-25001iBU111,112..IV3199505

FR

main90560-25001iBU111,112..IV3199505

SEPARATE TYPE MANUAL LEVER P.T.O,FR

main90560-25002iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505

RR

main90560-25002iBU111,112..IV3199505

SEPARATE TYPE MANUAL LEVER P.T.O,RR

main90560-25002iBU213..40T199908

36723JBEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)

main90364-28020iBU212..ARL;BU212..LHD..40T;BU101..T3..ST..IV3..TS;BU213,RZU100..15T,20T,40T;BU10#,14#,211,221,222..WT..DSL..(ARL,GEN)..(CBU,IV3)199505-200212

36723KCOLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)

main90387-25009iBU212..ARL;RZU100..15T,20T;BU212..LHD..40T;BU101..T3..ST..IV3..TS;BU10#,14#,211,221,222..WT..DSL..(ARL,GEN)..(CBU,IV3)199505-200212

36728SHAFT, POWER TAKE-OFF IDLER

main36728-36040iBU110,111..CBU199505-200212

main36728-93101iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

main36728-93107iBU213..40T199505-200212

main36728-93107iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

36728DBEARING (FOR POWER TAKE-OFF IDLER SHAFT)

main90366-22001iBU101,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

main90366-22001iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

main90366-25011iBU213..40T199908

main97103-06304iBU110,111..CBU199505-200212

36728FRING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)

main90521-56108iBU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,22#..WT..DSL..(ARL,GEN)..(CBU,IV3)199505-200212

36728GPIN (FOR POWER TAKE-OFF IDLER SHAFT)

main90254-04002iBU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW)199505-200212

36728HSHIM (FOR POWER TAKE-OFF IDLER SHAFT)

main90564-25001iBU213..40T199505-200212

T=0.05

main90564-25001iBU101..T3..ST..IV3..TS;BU100,101,140,141..WT..(20T,25T)..GEN199505-200212

T=0.05,SEPARATE TYPE VACUUM P.T.O

main90564-25002iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

T=0.1

main90564-25002iBU101..T3..ST..IV3..TS;BU100,101,140,141..WT..(20T,25T)..GEN199505-200212

T=0.1,SEPARATE TYPE VACUUM P.T.O

main90564-25003iBU101..T3..ST..IV3..TS;BU100,101,140,141..WT..(20T,25T)..GEN199505-200212

T=0.2,SEPARATE TYPE VACUUM P.T.O

main90564-25003iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

T=0.2

main90564-25004iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

T=0.5

main90564-25004iBU101..T3..ST..IV3..TS;BU100,101,140,141..WT..(20T,25T)..GEN199505-200212

T=0.5,SEPARATE TYPE VACUUM P.T.O

36737BSHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)

main90564-42001iBU101..T3..ST..IV3..TS;BU101,141..WT..(20T,25T)..GEN199505-200212

T=0.02-0.08,SEPARATE TYPE VACUUM P.T.O

main90564-42001iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

T=0.02-0.08

main90564-42002iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

T=0.07-0.13,SEPARATE TYPE VACUUM P.T.O

main90564-42002iBU100..ST..IV3;BU102..WT..DSL;BU212..LHD..40T;BU100,101,212..ARL..IV3;BU213,RZU100..15T,20T,40T;BU101,141,142,211,221,222..(T3,TW1)..WT..(20T,30T,40T)..DSL..(ARL,GE199505-200212

T=0.07-0.13

main90564-42003iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

T=0.17-0.23,SEPARATE TYPE VACUUM P.T.O

main90564-42003iBU100..ST..IV3;BU102..WT..DSL;BU212..LHD..40T;BU100,101,212..ARL..IV3;BU213,RZU100..15T,20T,40T;BU101,141,142,211,221,222..(T3,TW1)..WT..(20T,30T,40T)..DSL..(ARL,GE199505-200212

T=0.17-0.23

main90564-42004iBU101..T3..ST..IV3..TS;BU101,141..WT..(20T,25T)..GEN199505-200212

T=0.47-0.53,SEPARATE TYPE VACUUM P.T.O

main90564-42004iBU100..ST..IV3;BU102..WT..DSL;BU212..LHD..40T;BU100,101,212..ARL..IV3;BU213,RZU100..15T,20T,40T;BU101,141,142,211,221,222..(T3,TW1)..WT..(20T,30T,40T)..DSL..(ARL,GE199505-200212

T=0.47-0.53

36811FORK, POWR TAKE-OFF SHIFT, NO.1

main36811-36040iBU110,111..CBU199505-200212

main36811-93101iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

main36811-93104iBU213..40T199505-200212

main36811-93104iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

36814SHAFT, POWR TAKE-OFF FORK, NO.1

main36814-36040iBU110,111..CBU199505-200212

main36814-93104iBU100,101,140,141..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

main36814-93104iRZU100..20T;BU102,142..WT;BU100..ST..IV3;BU212..LHD..40T;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

main36814-93110iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE MANUAL LEVER P.T.O

36851RETAINER, POWER TAKE-OFF JOINT

main36851-93200iRZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU102,111,112,142..WT..IV3;BU100,140,212..(ARL,EUR)..IV3;BU101,141,211,221..(30T,40T)..GEN199505-200212

main36851-93200iBU141..LHD;BU100,101,140..WT..(20T,25T)..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O OR SEPARATE TYPE MANUAL LEVER P.T.O

main36851-93200iBU141..RHD..25T..GEN199505-200212

SEPARATE TYPE VACUUM P.T.O

8889418010

main88894-18010

9010108156

main90101-08156

9011908124

main90119-08124

9011910029

main90119-10029

9017914066

main90179-14066

9020108091

main90201-08091

9020114002

main90201-14002

9021414001

main90214-14001

9033903002

main90339-03002

9038925003

main90389-25003

9040751002

main90407-51002

9050129040

main90501-29040

9412541400

main94125-41400

9413061000

main94130-61000

9451201000

main94512-01000

9453101400

main94531-01400

9461311200

main94613-11200

9710006205

main97100-06205

46 parts on this diagram · 6 diagrams in section
