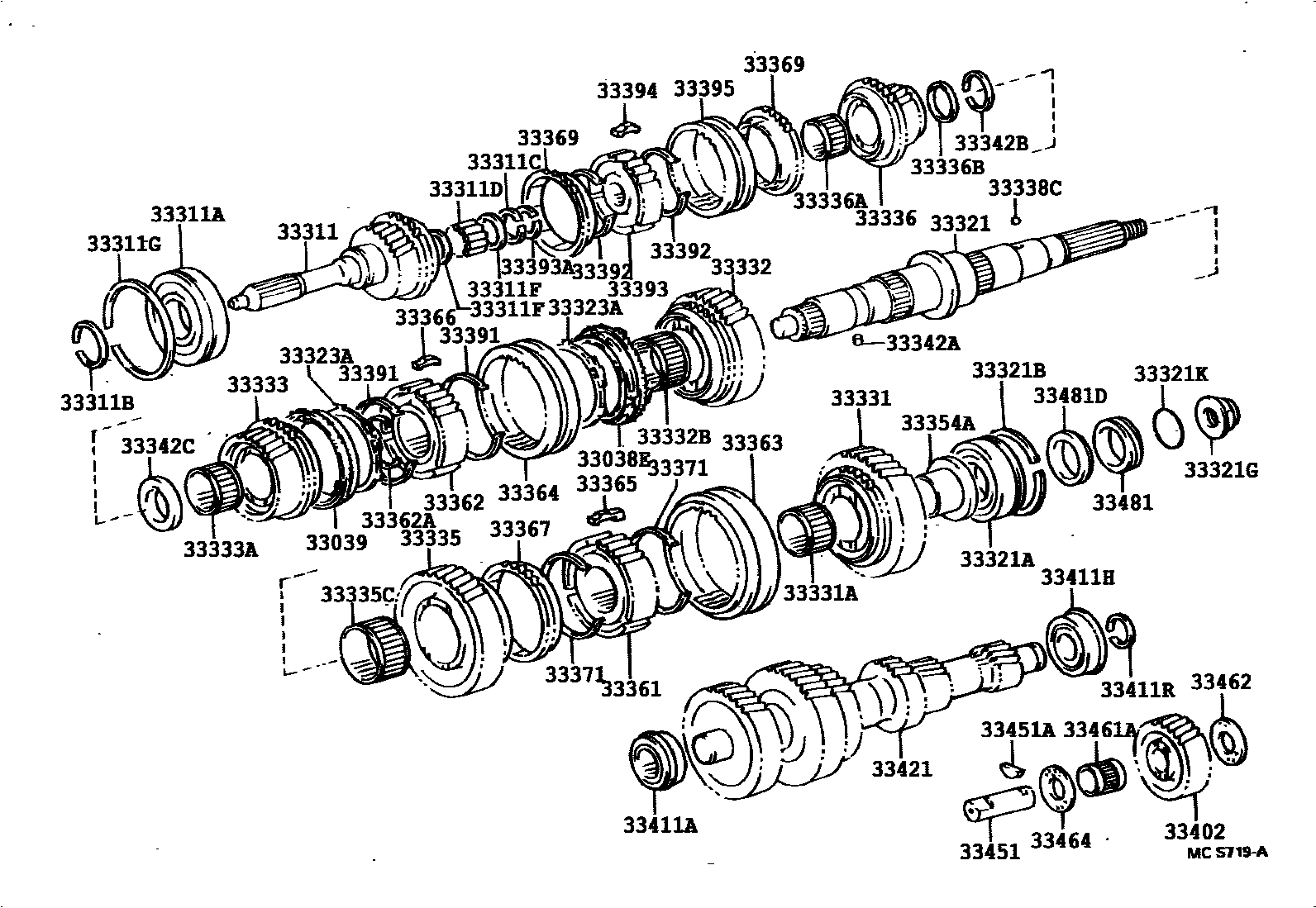

TRANSMISSION GEAR (MTM)

0001 1M150,M153,M155 0002 1M150,M153 0003 1H260

33038ERING SET, SYNCHRONIZER, NO.2

main33038-36010iBU10#,11#,14#,211,212,221,222199505-200110

main33038-37011iBU213,223199908-200304

main33038-37012iBU213,223200304

33039RING SET, SYNCHRONIZER, NO.3

main33039-36010iBU10#,11#,14#,211,212,221,222199505-200110

main33039-37010iBU213,223199908-200304

main33039-37011iBU213,223200304

33311SHAFT, INPUT

main33301-37030iBU111,112,YU210;BU140,211..(25T,30T)..(EUR,SA);BU101,141,21#,22#..(30T,40T)..DSL..(GEN,TAIW)199505-199508

main33301-37030iBU100,101,140,141..WT..(20T,25T)..GEN199505

HEAVY LOAD SPEC

main33301-37050iBU211..40T..SA;BU102,221..SA,TAIW;BU100,101,110,140,141..(175T,20T,25T)..(ARL,GEN)199505-199508

main33301-37060iBU102,112..30T199703-199908

main33301-37070iBU212,222;BU102,142..GEN199505-200110

main33301-37100iBU142..ARL199505

main33301-37131iBU213,223199908

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-45010iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

main90363-50007iBU213,223199908

sub90363-50012

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-42002iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=2.50-2.55,MARK 2

main90520-42003iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.55-2.60,MARK 3

main90520-42004iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=2.60-2.65,MARK 4

main90520-42005iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.65-2.70,MARK 5

main90520-42006iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.70-2.75,MARK 6

main90520-42007iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=2.75-2.80,MARK 7

main90520-99010iBU213,223199908

T=2.36-2.46

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main96151-04500iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33311DBEARING, INPUT SHAFT

main90361-08004iBU213,223199908

main90361-09002iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

33311FSPACER (FOR INPUT SHAFT)

main90560-38004iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-96001iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33321SHAFT, OUTPUT

main33321-37030iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main33321-37070iBU213,223199908

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-38007iBU213,223199908

main90363-40034iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-88001iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.36-2.46

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-24008iBU10#,111,14#,21#,22#,RZU100,YU210..ARL,GEN,SA199505-200110

33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)

main90301-31003iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200110

33323ASPACER, SYNCHRONIZER RING

main33323-36010iBU10#,11#,14#,211,212,221,222199505-200110

33331GEAR, REVERSE

main33331-37030iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main33331-37060iBU213,223199908

33331ABEARING (FOR REVERSE GEAR)

main90364-47008iBU213,223199908

main90364-54004iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

33332GEAR, 2ND

main33033-36070iBU100,101,140,141..WT..(20T,25T)..GEN199505

HEAVY LOAD SPEC

main33033-36070iBU111,112;BU140,211..(25T,30T)..(EUR,SA);BU101,141,21#,22#..(30T,40T)..DSL..(GEN,TAIW)199505-199508

main33033-36080iRZU100199703

main33033-36090iBU211..40T..SA;BU102,221..SA,TAIW;BU100,101,110,140,141..(175T,20T,25T)..(ARL,GEN)199505-199508

main33033-36100iBU102,142,212,222199505-200110

main33033-37010iYU210199505

main33033-37020iBU213,223199908

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-54003iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main90364-58006iBU213,223199908

33333GEAR, 3RD

main33034-36050iYU210199505

main33034-36060iBU100,101,140,141..WT..(20T,25T)..GEN199505

HEAVY LOAD SPEC

main33034-36060iBU111,112;BU140,211..(25T,30T)..(EUR,SA);BU101,141,21#,22#..(30T,40T)..DSL..(GEN,TAIW)199505-199508

main33034-36090iBU211,221..SA;BU102,112..(DM7,T2,T3,T4)..DSL;BU100,101,110,140,141..(175T,20T,25T)..(ARL,GEN,SA)199505-199508

main33034-36100iBU102,142,212,222..ARL,GEN,SA199505-200110

main33034-37010iRZU100199703

main33034-37020iBU213,223199908

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-38017iBU213,223199908

main90364-47007iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33335GEAR, 1ST

main33335-37040iBU212,222..TAIW;BU10#,11#,140,141,211,221,RZU100,YU210..CBR,DSL,EFI199505

main33335-37050iBU102,142,212,222..ARL,GEN,SA199505-200110

main33335-37090iBU213,223199908

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-50002iBU213,223199908

main90364-58005iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

33336GEAR, 5TH

main33036-37010iBU212,222..TAIW;BU10#,11#,140,141,211,221,RZU100,YU210..CBR,DSL,EFI199505

main33036-37020iBU102,142,212,222199505-200110

main33036-37030iBU213,223199908

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90364-37012iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

main90364-46005iBU213,223199908

33336BSPACER (FOR 5TH GEAR BEARING)

main90560-37003iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33338CBALL, REVERSE SHIFT RESTRICT

main90360-06004iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)

main90250-04056iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main90360-06004iBU213,223199908

33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)

main90520-34010iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=2.90-2.95,MARK A

main90520-34011iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.95-3.00,MARK B

main90520-34012iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=3.00-3.05,MARK C

main90520-34015iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

T=3.05-3.10,MARK D

main90520-34016iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=3.10-3.15,MARK F

33342CWASHER, 3RD GEAR THRUST

main33342-36021iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33354ARACE, REVERSE GEAR BEARING, INNER

main33354-36010iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main33354-37010iBU213,223199908

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-36030iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

main33361-37040iBU213,223199908

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-36040iBU10#,11#,14#,211,212,221,222199505-200110

main33362-36050iRZU100,YU210199505

main33362-37020iBU213,223199908

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-28054iBU213,223199908

T=1.90-1.95,MARK 4

main90520-28055iBU213,223199908

T=1.95-2.00,MARK 5

main90520-28056iBU213,223199908

T=2.00-2.05,MARK 6

main90520-28057iBU213,223199908

T=2.05-2.10,MARK 7

main90520-28058iBU213,223199908

T=2.10-2.15,MARK 8

main90520-28059iBU213,223199908

T=2.15-2.20,MARK 9

main90520-43002iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=1.90-1.95,MARK=2

main90520-43003iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

T=1.95-2.00,MARK=3

main90520-43004iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.00-2.05,MARK=4

main90520-43005iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.05-2.10,MARK=5

main90520-43006iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.10-2.15,MARK=6

main90520-43007iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=2.15-2.20,MARK=7

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-37020iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main33363-60051iBU213,223199908-200303

sub33363-60052

main33363-60052iBU213,223200303

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-36061iRZU100,YU210199505-200212

main33364-36080iBU10#,11#,14#,211,212,221,222199505-200110

main33364-37020iBU213,223199908-200303

sub33364-37021

main33364-37021iBU213,223200303

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-36030iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

main33365-60010iBU213,223199908

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-36032iRZU100,YU210199505

main33366-36040iBU10#,111,14#,211,212,221,222..ARL,GEN,SA199505-200110

main33366-37030iBU213,223199908

33367RING, SYNCHRONIZER, NO.1

main33367-36050iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33369RING, SYNCHRONIZER, NO.3

main33369-36010iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main33369-60010iBU213,223199908

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-36030iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main33371-60010iBU213,223199908

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-36030iBU10#,111,14#,211,212,221,222199505-200110

main33371-37030iBU213,223199908

main33391-36021iRZU100,YU210199505

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33392-36010iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main33392-60010iBU213,223199908

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-36060iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main33393-37010iBU213,223199908

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-28054iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=1.90-1.95,MARK 4

main90520-28055iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=1.95-2.00,MARK 5

main90520-28056iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.00-2.05,MARK 6

main90520-28057iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.05-2.10,MARK 7

main90520-28058iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.10-2.15,MARK 8

main90520-28059iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.15-2.20,MARK 9

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33394-36020iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

main33394-60010iBU213,223199908

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-36030iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

main33395-60040iBU213,223199908

33402GEAR SUB-ASSY, REVERSE IDLER

main33461-36090iBU212,222..TAIW;BU10#,11#,140,141,211,221,RZU100,YU210..CBR,DSL,EFI199505

main33461-36100iBU102,142,212,222..ARL,GEN,SA199505-200110

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-30030iBU213,223199908

main90365-37006iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-30049iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

33411RRING, SNAP, COUNTER GEAR REAR BEARING

main90520-26030iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=1.95-2.00,MARK 0

main90520-26031iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.00-2.05,MARK 1

main90520-26032iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

T=2.05-2.10,MARK 2

main90520-26033iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.10-2.15,MARK 3

main90520-26034iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.15-2.20,MARK 4

main90520-26035iBU10#,111,14#,211,212,221,222,RZU100,YU210199505-200110

T=2.20-2.25,MARK 5

main90520-29032iBU213,223199908

T=2.40-2.45,MARK A

main90520-29033iBU213,223199908

T=2.45-2.50,MARK B

main90520-29034iBU213,223199908

T=2.50-2.55,MARK C

main90520-29035iBU213,223199908

T=2.55-2.60,MARK D

main90520-29036iBU213,223199908

T=2.60-2.65,MARK E

main90520-29037iBU213,223199908

T=2.65-2.70,MARK F

main90520-29038iBU213,223199908

T=2.70-2.75,MARK G

main90521-22003iBU213,223199908

T=2.2,ID=17.7

33421GEAR, COUNTER

main33421-37030iBU140,212..EUR,TAIW;BU111,112,YU210..DM1,DM6,T3;BU101,141,211,221,222..(30T,40T)..DSL..(GEN,TAIW)199505-199508

main33421-37030iBU100,101,140,141..WT..(20T,25T)..GEN199505

HEAVY LOAD SPEC

main33421-37040iBU211,221..SA;BU102,112,RZU100..(DM6,DM7,T2,T3,T4)..(DSL,EFI);BU100,101,110,140,141..(175T,20T,25T)..(ARL,GEN,SA)199505-199508

main33421-37050iBU102..TD;BU142,212,222..ARL,EUR,GEN,SA199505-200106

main33421-37080iBU213,223199908

main33421-37100iBU102,142,212,222..ARL,GEN,SA200106-200110

33451SHAFT, REVERSE IDLER GEAR

main33451-36050iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

main33451-37020iBU213,223199908

33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)

main90280-03002iBU10#,111,14#,21#,22#,RZU100,YU210199505-200110

33461GEAR, REVERSE IDLER

main33461-37030iBU213,223199908

33461ABEARING, REVERSE IDLER GEAR

main90364-28018iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33462WASHER, REVERSE IDLER THRUST

main33462-60020iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33464WASHER, REVERSE IDLER THRUST, NO.2

main33464-60010iBU10#,11#,14#,211,212,221,222,RZU100,YU210199505-200110

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-36150iBU100..ST;BU222..EUR;BU102..WT..15T;BU212..30T..TD..CBU;BU101,102..175T,20T;BU141,142,211,221..ARL,EUR,SA;BU212,222..RHD..(25T,40T)..(GEN,SA)199505-200110

N=6,MARK 6X20-22

main33481-36150iBU222199505-199610

N=6,MARK 6X20-22,*AXC=B05A

main33481-36160iBU101,102..30T;BU212,222..LHD..TD;BU100,11#,140,141,21#,22#..WT..DSL..(ARL,EUR,GEN,TAIW)199505-199808

N=6,MARK 6X23-25

main33481-36160iBU101..WT..GEN..TS199505

N=6,MARK 6X23-25,W(700-16 TIRE)

main33481-36170iBU211,221..40T..GEN..(CBU,IV3)199505

N=5,MARK 5X22-24,*AXC=B09A

main33481-36170iBU211..IV2;RZU100,YU210..RHD199505

N=5,MARK 5X22-24

main33481-36170iBU140..LHD..GEN199505-199905

N=5,MARK 5X22-24,CHINA SPEC

main33481-37020iBU102..ST..15T199712-199908

N=7,MARK 7X20-22

main33481-37020iBU102..ST199705-199707

N=7,MARK 7X20-22,TAIWAN SPEC

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main33487-36070iBU10#,111,14#,211,212,221,222,RZU100,YU210..ARL,GEN,SA199505-200110

main33487-37020iBU213,223199908

60 parts on this diagram · 3 diagrams in section
