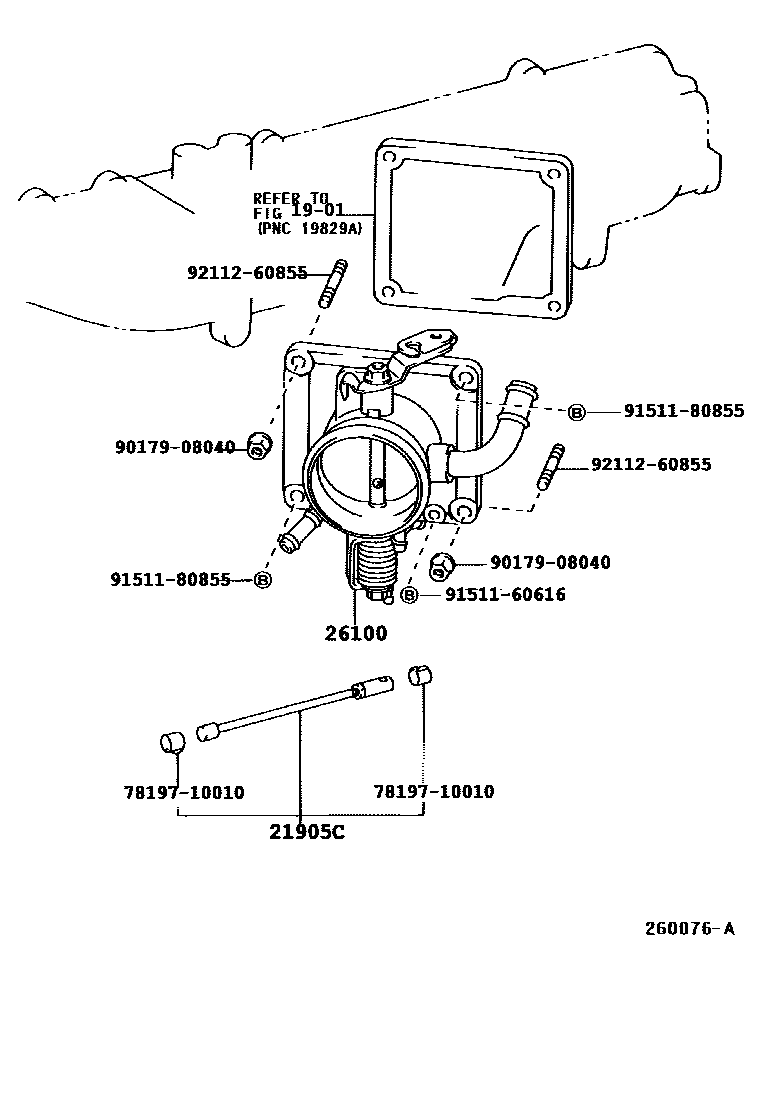

VENTURI

0001 1 0002 1 0003 1 0004 1

1901

21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)

main21905-58030i15BF..BU102,112,142,212,222199505

main21905-58040i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main21905-58080i3B..BU100,110,140199505-199908

26100VENTURI ASSY

main26100-58071i3B..BU100,110,140199505-199908

main26100-58102i14B..BU101,102,111,112,141,211,212,221,222199505

main26100-58160i15BF..BU142,212,222199505

main26100-58200i15BF..BU102,112199703-199908

main26100-58220i15BFTE..BU213,223199908

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9017908040

main90179-08040

9151160616

main91511-60616

9151180855

main91511-80855

9211260855

main92112-60855

8 parts on this diagram · 4 diagrams in section
