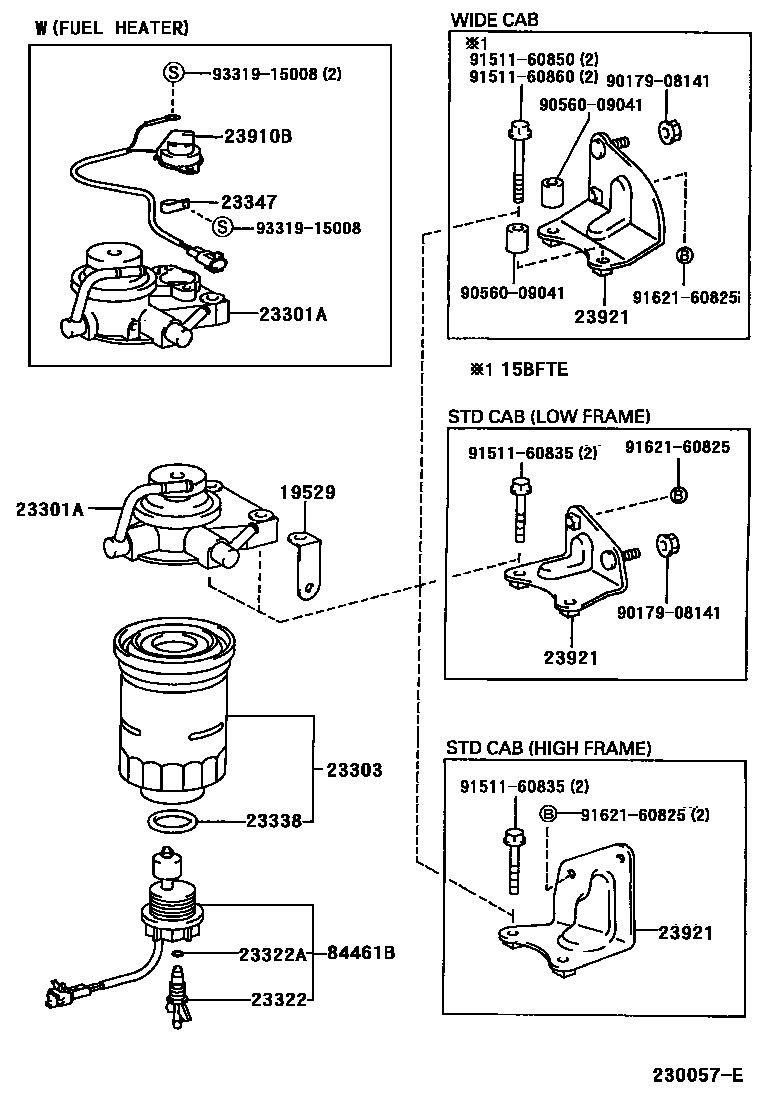

FUEL FILTER

0001 1 0003 1 0004 1W/DOUBLE FILTER(STD CAB) 0005 1W/DOUBLE FILTER(WIDE CAB) 0006 1 0010 1

19529CLAMP

main19529-56010i14B,15BF,15BFTE,3B..BU10#,11#,14#,213,223199505

main19529-56020i15BFT..BU222..SA;14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF..BU212,222;15BFT..BU212,222..LHD..GEN199505

23301ACAP ASSY, FUEL FILTER

main23301-56240i14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199505-200009

THAILAND SPEC

main23301-56280i14B,15BF,3B..BU11#199505

main23301-58170i14B..BU211..RHD..40T..GEN..IV3199505-200009

THAILAND SPEC

main23301-58190i15BFT..BU222..SA;14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF..BU212,222;15BFT..BU212,222..LHD..GEN199505

main23301-58200i14B..BU211..LHD..T3199905

RUSSIA SPEC

main23380-58220i14B..BU101..RHD;14B..BU101..LHD..T3;14B,15BF,3B..BU100,102,14#199505

main23380-58230i14B..BU101..175T..GEN199905

main23380-58320i15BFT..BU212..LHD..40T199808

CHILE SPEC

main23380-58320i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main23380-58350i15BFTE..BU213,223199908

sub23380-58351

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54072i15BFT..BU212..LHD..40T199808

CHILE SPEC

main23303-54072i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main23303-56040i15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223199505

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223199505

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223199505

main23344-54020i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main23344-54020i15BFT..BU212..LHD..40T199808

CHILE SPEC

23338GASKET(FOR WARNING SWITCH)

main23338-54010i14B..BU211,221..40T..SA199505-200008

main23344-64010i15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223199505

23347CLIP, CORD

main23347-54010i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905

23910BHEATER ASSY, FUEL

main23910-17030i14B..BU211..LHD..T3;14B..BU101..175T..GEN199505

23921SUPPORT, FUEL FILTER

main23921-35070i4Y..YU210199505

main23921-56011i14B,15BF,3B..BU10#,14#199505

main23921-56050i14B,15BF,3B..BU11#199505

main23921-58100i15BFT..BU222..SA;14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B,15BF,15BFTE..BU212,213,22#;14B,15BFT..BU211,212..LHD..40T..IV3199505-200009

main23921-58110i14B..BU211..RHD..40T..GEN..IV3199505-200009

THAILAND SPEC,PREFILTER SIDE

main23921-58130i14B..BU101..T1..CBU;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199505-200009

THAILAND SPEC

84461BSWITCH, LEVEL WARNING

main84461-36110iBU211,221..GEN;BU211..30T..SA;BU222..ARL,SA,TAIW;BU212,222..LHD..TD..GEN;BU10#,11#,14#,212,213,223..DSL,TDEFI199505-200211

9017908141

main90179-08141

9056009041

main90560-09041

9151160835

main91511-60835

9151160850

main91511-60850

9151160860

main91511-60860

9162160825

main91621-60825

9331915008

main93319-15008

17 parts on this diagram · 6 diagrams in section
