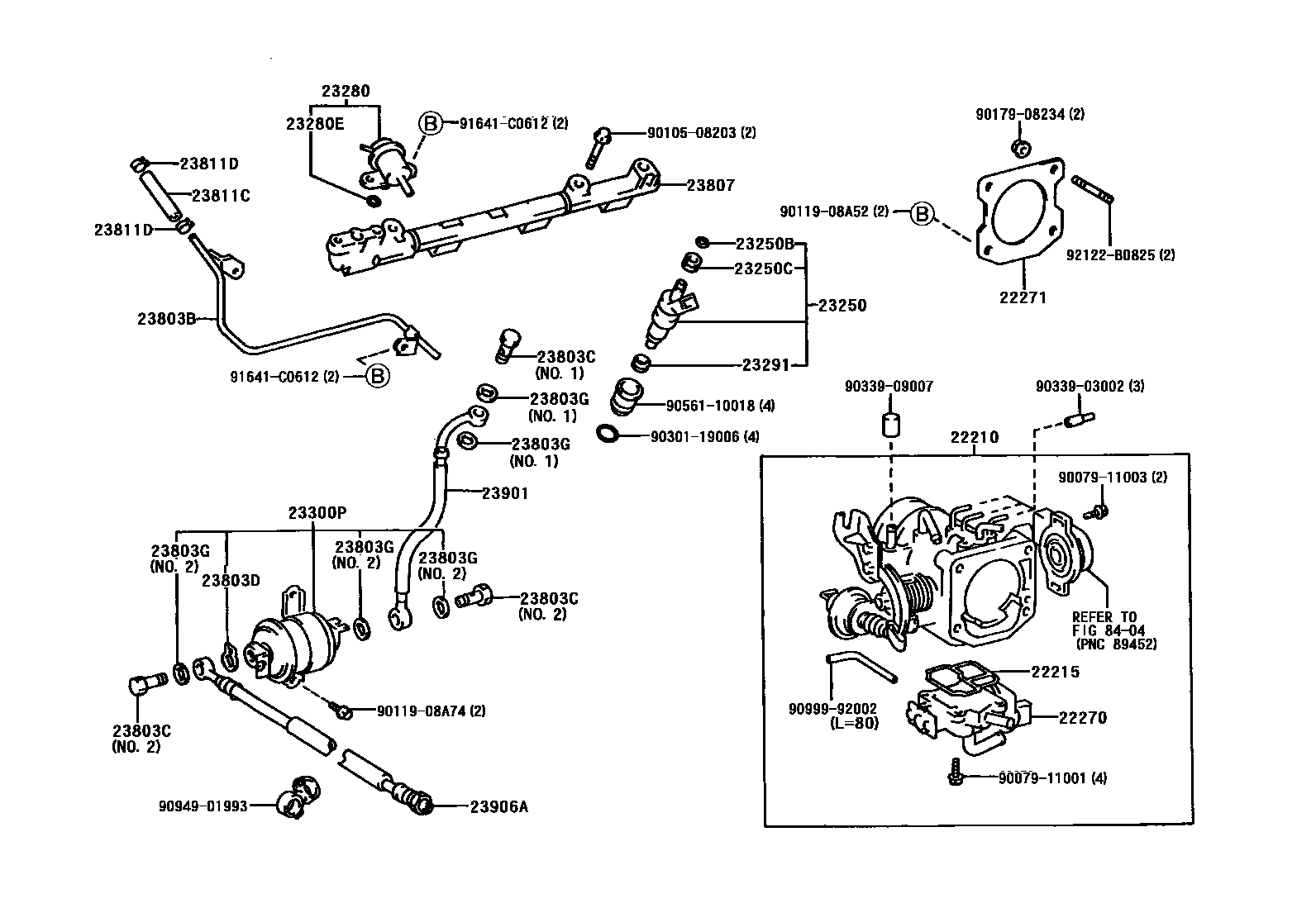

FUEL INJECTION SYSTEM

0001 1 0002 1

22210BODY ASSY, THROTTLE

main22210-75130i3RZFE..RZU100199703-199708

main22210-75220i3RZFE..RZU100..15T199908

main22210-75230i3RZFE..RZU100..RHD199708-200009

22215GASKET, THROTTLE BODY COVER

main22215-75050i3RZFE..RZU100199703

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-75030i3RZFE..RZU100..15T199908

main22270-75040i3RZFE..RZU100..RHD199703-200009

22271GASKET, THROTTLE BODY

main22271-75020i3RZFE..RZU100199703

23250INJECTOR ASSY, FUEL

main23209-79095i3RZFE..RZU100199703

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i3RZFE..RZU100199703-199812

main90301-07024i3RZFE..RZU100199812

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i3RZFE..RZU100199703

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75020i3RZFE..RZU100199703

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i3RZFE..RZU100199703-199812

main90301-07024i3RZFE..RZU100199812

23291INSULATOR, INJECTOR VIBRATION

main23291-73010i3RZFE..RZU100199703

23300PFILTER, FUEL(FOR EFI)

main23300-79446i3RZFE..RZU100199703

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-75020i3RZFE..RZU100..RHD199703

main23803-75060i3RZFE..RZU100..15T199908

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-12033i3RZFE..RZU100199905

NO.1

main90401-12097i3RZFE..RZU100199703-199905

NO.2

main90401-12097i3RZFE..RZU100199905

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-12017i3RZFE..RZU100199703-199905

main90430-12026i3RZFE..RZU100199905

23803GGASKET(FOR FUEL HOSE)

main23279-74010i3RZFE..RZU100199905

NO.1

main90430-12026i3RZFE..RZU100199703-199905

main90430-12026i3RZFE..RZU100199905

NO.2

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75020i3RZFE..RZU100199703-199708

main23807-75021i3RZFE..RZU100199708

sub23807-75022

23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)

main23271-75100i3RZFE..RZU100..15T199908

main95334-06012i3RZFE..RZU100..RHD199703

23811DCLIP, HOSE(FOR FUEL HOSE)

main96135-41100i3RZFE..RZU100199703-200204

sub96135-51100

main96135-51100i3RZFE..RZU100200204

23901TUBE SUB-ASSY, FUEL

main23901-75030i3RZFE..RZU100199703-199708

main23901-75031i3RZFE..RZU100199708-199905

sub23901-75050

main23901-75050i3RZFE..RZU100199905

23906AHOSE SUB-ASSY, FUEL

main23906-75050i3RZFE..RZU100199703

8404

9007911001

main90079-11001

9007911003

main90079-11003

9010508203

main90105-08203

9011908A52

main90119-08A52

9011908A74

main90119-08A74

9017908234

main90179-08234

9030119006

main90301-19006

9033903002

main90339-03002

9033909007

main90339-09007

9056110018

main90561-10018

9094901993

main90949-01993

9099992002

main90999-92002

91641C0612

main91641-C0612

92122B0825

main92122-B0825
