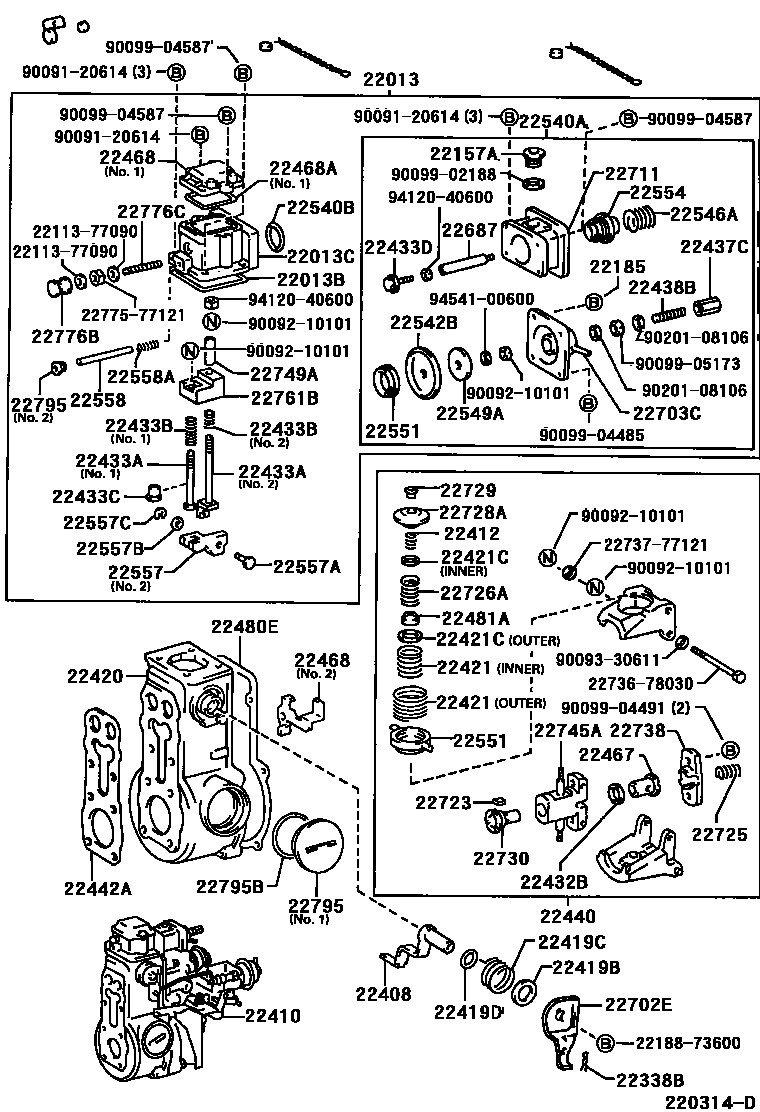

MECHANICAL GOVERNOR

0001 1 0002 1 0006 1

22013HOUSING SUB-ASSY, FULLROAD STOPPER

main22306-5C350i15BFT..BU102,142..RHD;15BFT..BU142,222..EUR199605

main22306-5C350i15BFT..BU212..RHD..IV3199808

THAILAND SPEC

main22306-5C440i15BFT..BU212,222..RHD199703-199808

22013BRING, O(FOR FULLROAD STOPPER HOUSING)

main90099-14081i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

sub22442-78360

22013CHOUSING, FULLROAD STOPPER, NO.2

main22559-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22157APLUG(FOR NB BOOST COMPENSATOR)

main22157-5C360i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

22185PLATE, TAPPET ADJUSTING SHIM(FOR NB BOOST COMPENSATOR)

main22185-73500i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22338BPIN, LEVER CONECTING

main22338-54410i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22408ARM, STOPPER

main22408-78030i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL

main22410-5C360i15BFT..BU102,142..RHD;15BFT..BU142,222..EUR199605

main22410-5C360i15BFT..BU212..RHD..IV3199808

THAILAND SPEC

main22410-5C440i15BFT..BU212,222..RHD199703-199808

22412SPRING, MECHANICAL GOVERNOR

main22412-78030i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22419BWASHER, PLATE(FOR STOPPER LEVER)

main90099-01369i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=0.20

main90099-01381i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=0.50,OD=16

main90099-01521i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=0.50

main90099-02315i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=0.10

22419CSPRING, RETURN(FOR STOPPER LEVER)

main22432-78050i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22419DRING, O(FOR STOPPER LEVER)

main90099-14005i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR

main22401-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22421SPRING, IDLING

main22725-5C360i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

INNER

main22725-5C361i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

OUTER

22421CWASHER, IDLING SPRING

main22416-78050i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=1.00,OUTER

subS2287-71890

main22416-78051i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=1.00,INNER

subS2287-71900

main22737-5C350i15BFT..BU212..CBU;15BFT..BU102,142..GEN;15BFT..BU212..LHD..40T199808

T=0.3

main22737-5C350i15BFT..BU142,222..EUR;15BFT..BU212,222..RHD..GEN..IV3199605

T=0.3,INNER

main22737-5C360i15BFT..BU212..CBU;15BFT..BU102,142..GEN;15BFT..BU212..LHD..40T199808

T=0.2

main22737-5C360i15BFT..BU142,222..EUR;15BFT..BU212,222..RHD..GEN..IV3199605

T=0.2,INNER

main22737-78030i15BFT..BU142,222..EUR;15BFT..BU212,222..RHD..GEN..IV3199605

T=0.20,OUTER

subS2287-71270

main22737-78030i15BFT..BU212..CBU;15BFT..BU102,142..GEN;15BFT..BU212..LHD..40T199808

T=0.20

subS2287-71270

main22737-78031i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=0.40,OUTER

subS2287-71280

main22737-78032i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=0.60,OUTER

subS2287-71290

main22737-78033i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=0.40,INNER

subS2287-71300

main22737-78034i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=0.60,INNER

22432BSHIM

main22713-58230i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=1.60

main22713-58231i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=1.65

main22713-58232i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=1.70

main22713-58233i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=1.75

main22713-58234i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=1.80

main22713-58235i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=1.85

main22713-58236i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=1.90

main22713-58237i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=1.95

main22713-58238i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=2.00

main22713-58239i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=2.10

main22714-58230i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=2.20

main22714-58231i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=2.30

main22714-5C351i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=2.05

main22714-5C352i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=2.15

main22714-5C353i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=2.25

22433ASCREW, ADAPTER(FOR SLIDING BLOCK)

main22433-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

NO.2

main22433-78031i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

NO.1

22433BSPRING(FOR ADAPTER SCREW)

main22411-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

NO.2

main22411-78030i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

NO.1

22433CBUSH(FOR ADAPTER SCREW)

main22554-78030i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

22433DADAPTER, NB BOOST COMPENSATOR

main22433-5C360i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22437CNUT, CAP(FOR NB BOOST COMPENSATOR)

main22437-5C441i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199701-199808

main22437-77130i15BFT..BU142199605-199701

22438BSCREW, STOP(FOR NB BOOST COMPENSATOR)

main22438-54260i15BFT..BU142199605-199701

main22438-5C440i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199701-199808

22440FLYWEIGHT SUB-ASSY

main22720-5C360i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22442AGASKET, GOVERNOR

main22561-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22467NUT, ROUND

main22722-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22468COVER, PLATE

main22458-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

NO.2

main22555-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

NO.1

22468AO, RING

main90099-14039i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

NO.1

sub22442-5C360

main90099-14069i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

NO.2

22480COVER SUB-ASSY, GOVERNOR

main22790-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22480EGASKET, GOVERNOR COVER

main22774-58270i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22481ASEAT, SPRING, INNER

main22481-58230i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22540ACOMPENSATOR SUB-ASSY, BOOST(FOR NB PUMP)

main22540-5C360i15BFT..BU142199605-199701

sub22540-5C440

main22540-5C440i15BFT..BU142;15BFT..BU212,222..RHD199701-199808

22540BRING, O(FOR NB BOOST COMPENSATOR)

main96711-24026i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22542BDIAPHRAGM, NB BOOST COMPENSATOR

main22542-54260i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22546ASPRING(FOR NB BOOST COMPENSATOR)

main22546-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

22549AWASHER, THRUST(FOR NB BOOST COMPENSATOR)

main22549-17140i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

22551SEAT, SPRING(FOR FLYWEIGHT)

main22551-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

BOOST COMPENSATOR

main22551-78030i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

FLYWEIGHT

22554BUSHING(FOR NB BOOST COMPENSATOR)

main22554-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22557CAM, FULL STOP

main22456-5C360i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

NO.1

main22557-5C350i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

NO.2

22557APIN, CONNECTING(FOR FULL STOP CAM)

main22423-78030i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22557BWASHER, PLATE(FOR CONNECTING PIN)

main90099-01334i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=0.05

main90099-01540i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

T=0.10

main90099-01541i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

T=0.20

22557CRING, E(FOR CONNECTING PIN)

main22421-47030i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22558SHAFT, SLIDING BLOCK

main22558-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22558ASPRING(FOR SLIDING BLOCK SHAFT)

main22411-5C360i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22687ROD, PUSH(FOR BELLOWS)

main22687-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22702LEVER ASSY, FLOATING

main22702-78030i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22702ELEVER SUB-ASSY, CONTROL

main22490-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22703CCOVER SUB-ASSY, GOVERNOR

main22703-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22711HOUSING, NB BOOST COMPENSATOR

main22711-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22723DAMPER, FLYWEIGHT HOLDER

main22723-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22725SPRING, IDLING

main22725-5C351i15BFT..BU142199605-199808

22726ASPRING, SPEED CONTROL

main22726-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22728AGUIDE, SPRING

main22728-78031i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22729NUT, ADJUSTING(FOR FLYWEIGHT)

main22729-5C440i15BFT..BU212,222..RHD199703-199808

main22729-78030i15BFT..BU102,142..RHD;15BFT..BU142,222..EUR199605

main22729-78030i15BFT..BU212..RHD..IV3199808

THAILAND SPEC

22730BUSHING ASSY, CAMSHAFT

main22730-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22738BUSHING, GUIDE(FOR FLYWEIGHT)

main22738-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22745AFLYWEIGHT, DISTRIBUTIVE PUMP

main22745-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22749ACOLLAR, THRUST(FOR NB INJECTION PUMP)

main22749-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22761SLIDER(FOR SPEED CONTROL)

main22761-78031i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22761BBLOCK, SLIDING

main22761-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

22776BNUT, CAP(FOR SCREW STOPPER)

main22437-5C440i15BFT..BU142;15BFT..BU212,222..RHD199701-199808

main22777-5C360i15BFT..BU142199605-199701

22776CSCREW, STOPPER

main22438-5C350i15BFT..BU142,222..EUR;15BFT..BU102,142,212..RHD..IV3199605-199808

22795PLUG, SCREW

main22795-5C350i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

NO.2

main22795-77121i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU199605-199808

NO.1

22795BGASKET, SCREW PLUG

main22561-78030i15BFT..BU142;15BFT..BU212,222..RHD199605-199808

2211377090

main22113-77090

2218873600

main22188-73600

2273678030BOLT, BELLCRANK

main22736-78030

2273777121

main22737-77121

2277577121NUT, LOCK(FOR INJECTION PUMP)

main22775-77121

9009120614

main90091-20614

9009210101

main90092-10101

9009330611

main90093-30611

9009902188

main90099-02188

9009904485

main90099-04485

9009904491

main90099-04491

9009904587

main90099-04587

9009905173

main90099-05173

9020108106

main90201-08106

9412040600

main94120-40600

9454100600

main94541-00600

79 parts on this diagram · 3 diagrams in section
