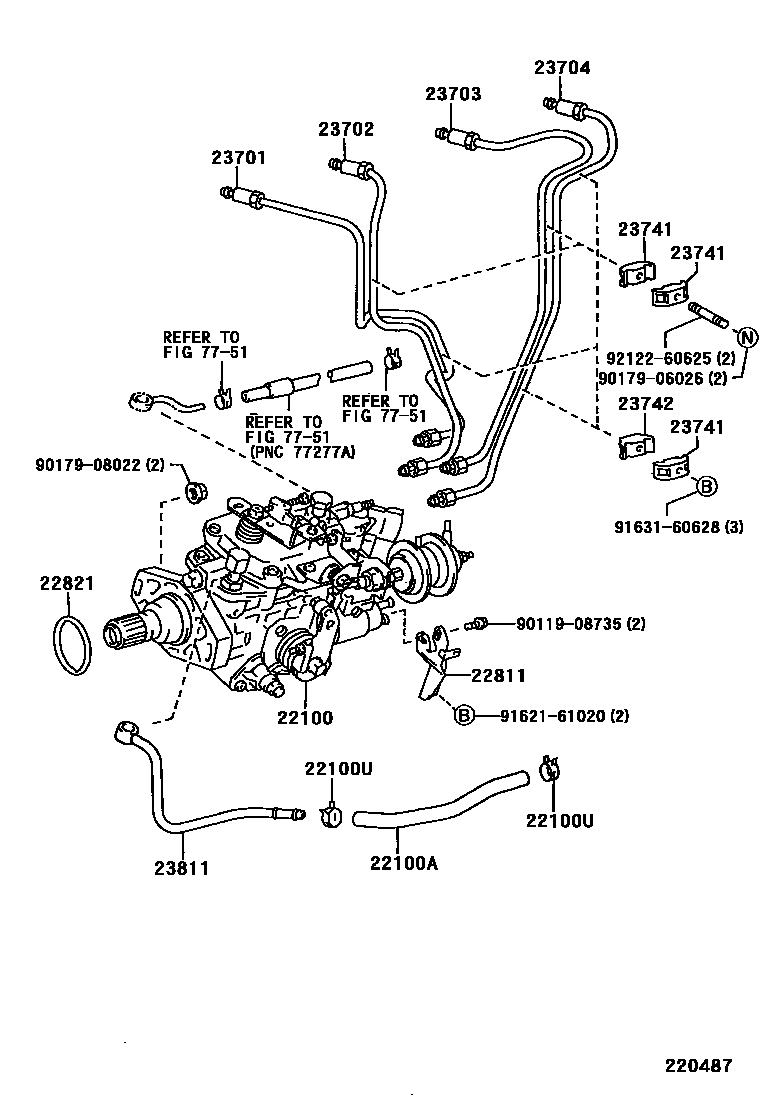

INJECTION PUMP ASSEMBLY

0001 1 0003 1 0004 1 0005 1 0009 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-58540i14B..BU101,111,141,211,221..(DM1,T1,T3)..GEN¥301,000199505-199509

*HAC

sub22100-58640¥311,000

main22100-58541i14B..BU101,111,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)¥304,000199509-200212

*HAC

main22100-58541i14B..BU101,141,211..SA¥304,000199509-200212

main22100-58550i14B..BU101,111,141,211,221..GEN¥260,000199505-199509

sub22100-58630¥271,000

main22100-58551i14B..BU101,111,141,211,221..GEN¥262,000199509-200212

main22100-58630i14B..BU101,111,141,211,221..(DM1,T1,T3)..GEN¥271,000199505-199509

W(TACHO METER)

main22100-58631i14B..BU101..LHD..ST..TS¥273,000199905-200212

W(TACHOMETER)

main22100-58631i14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B..BU111,141,211,221..(DM1,T3,TW1)..GEN..(CBU,IV3)¥273,000199509-200212

W(TACHO METER)

main22100-58640i14B..BU101,111,141,211,221..(DM1,T1,T3)..GEN¥311,000199505-199509

*HAC & W(TACHO METER)

main22100-58641i14B..BU101,111,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)¥311,000199509

*HAC & W(TACHO METER)

main22100-58720i14B..BU211..LHD¥305,000199505-199509

CHINA SPEC & W(TACHO METER)

main22100-58721i14B..BU211..LHD..T3¥305,000199509-199704

CHINA SPEC & W(TACHO METER)

main22100-58742i14B..BU102,112,212,222¥278,000199505-199602

sub22100-58743¥278,000

sub11298-58013¥350

main22100-58743i14B..BU102,112,212,222¥278,000199602-199703

main22100-58861i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3¥291,000199505-199703

HONGKONG SPEC & W(TACHO METER)

main22100-5C120i15BF..BU142,212,222..RHD..(ARL,GEN)¥310,000199505-200212

main22100-5C140i15BFT..BU212..LHD..40T¥356,000199505-200212

main22100-5C160i3B..BU100,110,140..ARL,EUR¥277,000199505-199908

main22100-5C170i3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN¥265,000199505-199704

CHINA SPEC

main22100-5C180i3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN¥306,000199505-199905

CHINA SPEC & *HAC

main22100-5C190i3B..BU100,140..GEN¥265,000199505-199905

sub22100-5C200¥277,000

main22100-5C200i3B..BU100,140..GEN¥277,000199505-199905

W(TACHO METER)

main22100-5C210i3B..BU100,140..GEN¥306,000199505-199905

*HAC

sub22100-5C220¥317,000

main22100-5C220i3B..BU100,140..GEN¥317,000199505-199905

*HAC & W(TACHO METER)

main22100-5C240i14B..BU101..175T..GEN¥323,000199905-200212

RUSSIA SPEC & W(TACHO METER)

main22100-5C240i14B..BU111,141..LHD..(DM1,T3)¥323,000199703-199708

CHINA SPEC & *HAC

main22100-5C240i14B..BU211..LHD..T3¥323,000199505-199905

CHINA SPEC & *HAC & W(TACHO METER)

main22100-5C240i14B..BU211..LHD..T3¥323,000199905

RUSSIA SPEC & W(TACHO METER) & *HAC

main22100-5C250i14B..BU111,141..LHD..(DM1,T3)¥294,000199505-199704

CHINA SPEC

main22100-5C260i14B..BU111,141..LHD..(DM1,T3)¥335,000199505-199703

CHINA SPEC & *HAC

sub22100-5C240¥323,000

main22100-5C330i14B..BU141..LHD¥262,000199505-200212

ALGERIA SPEC

main22100-5C330i14B..BU111..IV3¥262,000199708-200212

main22100-5C360i15BFT..BU102,142..RHD;15BFT..BU142,222..EUR199605

main22100-5C360i15BFT..BU212..RHD..IV3199808

THAILAND SPEC

main22100-5C380i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN¥348,000199610-199908

main22100-5C390i14B..BU101..ST..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..IV3199606-199706

THAILAND SPEC

sub22100-5C540

main22100-5C430i15BF..BU102,112199703-199908

main22100-5C440i15BFT..BU212..LHD..40T199808-200212

CHILE SPEC

main22100-5C440i15BFT..BU142..25T..GEN;15BFT..BU212,222..RHD..GEN199703

main22100-5C460i15BFT..BU222..SA199902-200212

main22100-5C490i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

SAUDI ARABIA,GULF SPEC

main22100-5C500i14B..BU101..LHD..ST..TS;14B..BU111,141,211,221..LHD..(DM1,T3,TW1)199705-200212

W(TACHOMETER) & SAUDI ARABIA,GULF SPEC

main22100-5C520i14B..BU211..RHD..40T..GEN..(IV2,IV3)199708-200212

KENYA SPEC

main22100-5C540i14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3199706-200009

THAILAND SPEC

main22100-5C560i15BF..BU212..GEN..IV3199708-199908

main22100-5C590i15BFTE..BU213,223¥352,000199908-200106

sub22100-5C591¥355,000

sub82989-36010¥600

sub82999-12020¥170

main22100-5C591i15BFTE..BU213,223¥355,000200106

main22100-5C640i14B..BU101..ARL¥269,000199908-200011

sub22100-5C641¥271,000

main22100-5C641i14B..BU101..ARL¥271,000200011-200212

main22100-5C670i15BF..BU212,222..SA¥310,000200005-200212

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-58030i15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,212,222¥990199505

main23271-58050i15BFT..BU102,142¥1,180199605

main23271-58070i15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN¥1,180199703

main23271-58070i15BFT..BU212..LHD..40T¥1,180199808

CHILE SPEC

main23271-58120i15BFTE..BU213,223¥3,050199908

main95333-08060i14B..BU211,221..40T..SA¥1,080199505-200008

L=600

main95333-08080i14B..BU211,221..40T..SA¥1,390199505-200008

L=1000(*H,L=800)

sub95333-08100¥2,020

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-18002i15BFTE..BU213,223¥230199908-200204

sub90467-18008¥110

main90467-18008i15BFTE..BU213,223¥110200204

main96132-41500i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222¥90199505

22811STAY, INJECTION PUMP, NO.1

main22811-58030i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222¥1,070199505-200109

sub22811-58031¥890

main22811-58031i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222¥890200109

main22811-58040i15BFT..BU212..LHD..40T¥1,040199808

CHILE SPEC

main22811-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN¥1,040199605

main22811-58060i15BFTE..BU213,223¥910199908

22821GASKET, INJECTION PUMP

main90301-49003i15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF,15BFTE..BU101,111,14#,21#,22#¥170199505-200008

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56080i14B..BU101,102,111,112,141,211,212,221,222¥2,080199505-200008

main23701-58011i3B..BU100,110,140¥2,900199505-199908

main23701-58030i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222¥2,760199505

main23701-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN¥2,760199605

main23701-58040i15BFT..BU212..LHD..40T¥2,760199808

CHILE SPEC

main23701-58050i15BFTE..BU213,223¥3,520199908

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56080i14B..BU101,102,111,112,141,211,212,221,222¥2,080199505-200008

main23702-58011i3B..BU100,110,140¥2,900199505-199908

main23702-58030i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222¥2,760199505

main23702-58040i15BFT..BU212..LHD..40T¥2,760199808

CHILE SPEC

main23702-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN¥2,760199605

main23702-58050i15BFTE..BU213,223¥3,520199908

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56080i14B..BU101,111,141,211,221¥2,080199505-200008

main23703-58011i3B..BU100,110,140¥2,900199505-199908

main23703-58030i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222¥2,760199505

main23703-58040i15BFT..BU212..LHD..40T¥2,760199808

CHILE SPEC

main23703-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN¥2,760199605

main23703-58050i15BFTE..BU213,223¥3,520199908

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56080i14B..BU101,102,111,112,141,211,212,221,222¥2,080199505-200008

main23704-58011i3B..BU100,110,140¥2,900199505-199908

main23704-58030i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222¥2,760199505

main23704-58040i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN¥2,760199605

main23704-58040i15BFT..BU212..LHD..40T¥2,760199808

CHILE SPEC

main23704-58050i15BFTE..BU213,223¥3,520199908

23741CLAMP, INJECTION PIPE, NO.1

main23741-58010i14B,3B..BU10#,11#,140,141,211,212,221,222¥260199505-200008

main23741-58010i15BFT..BU212..LHD..40T¥260199808

CHILE SPEC

23742CLAMP, INJECTION PIPE, NO.2

main23741-56020i3B..BU100,110,140¥310199505-199605

sub23741-56021¥460

main23741-56021i3B..BU100,110,140¥460199605-199908

main23741-58020i15BFTE..BU213,223¥1,090200105

NO.2

main23742-27010i15BFTE..BU213,223¥1,080199908-200105

NO.2

main23742-58010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222¥350199505-200008

main23742-58010i15BFT..BU212..LHD..40T¥350199808

CHILE SPEC

main23742-58020i15BFTE..BU213,223¥1,070199908-200105

NO.1

main23742-58030i15BFTE..BU213,223¥1,070200105

NO.1

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-58010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222¥4,370199505-200008

7751

9011908735

main90119-08735¥120

9017906026

main90179-06026¥70

9017908022

main90179-08022¥220

9162161020

main91621-61020¥180

9163160628

main91631-60628¥110

9212260625

main92122-60625¥130

19 parts on this diagram · 5 diagrams in section
