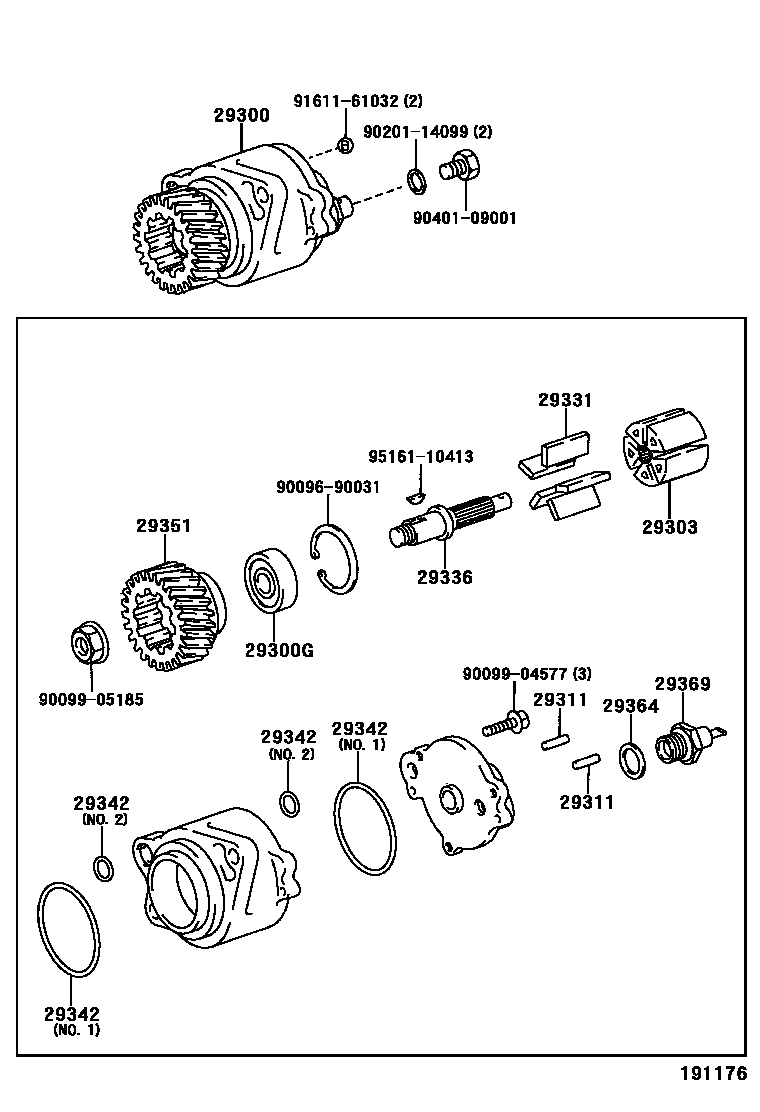

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-58030i15BFT..BU142;15BFT..BU212,222..RHD199605-199902

sub29300-58070

main29300-58040i15BFTE..BU213,223199908

main29300-58050i14B..BU211,221..GEN;14B..BU211..30T..SA;15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,212,222199505-199902

sub29300-58060

main29300-58060i15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,212,222199902

main29300-58070i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199902

29300GBEARING, BALL

main90099-10185i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

29303ROTOR SUB-ASSY, VACUUM PUMP

main29337-27010i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222199902

main29337-58040i15BFTE..BU213,223199908

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

29331BLADE, VACUUM PUMP, A

main29331-27010i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199902

main29331-58050i14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,21#,22#..ARL,EUR,GEN,TAIW199505-199605

main29331-67020i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,222199605-199902

29336SHAFT, VACUUM PUMP

main29336-58040i15BFTE..BU213,223199908-199911

main29336-58050i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,222199505-199902

main29336-58060i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222199902-199911

sub29336-58040

29342PACKING, VACUUM PUMP

main29342-58010i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

NO.1

main29342-64010i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

NO.2

29351GEAR, VACUUM PUMP

main29351-58050i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

29364WASHER, VACUUM PUMP

main29364-66010i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

29369VALVE SUB-ASSY, CHECK

main29369-64030i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9020114099

main90201-14099

9040109001

main90401-09001

9161161032

main91611-61032

9516110413

main95161-10413

17 parts on this diagram · 1 diagram in section
