IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0003 1 0004 1 0005 1 0006 1

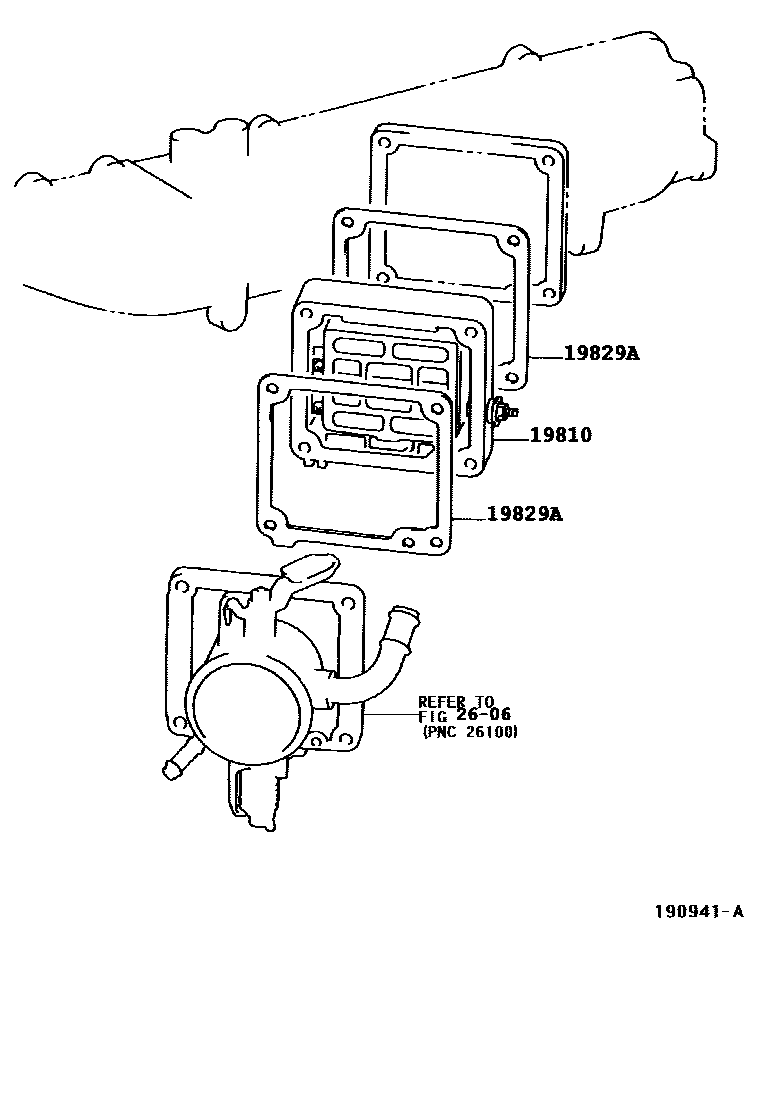

19810HEATER ASSY, INTAKE

main19810-17010i15BFT..BU142..EUR199605-199811

sub19810-17011

main19810-17011i15BFT..BU142,222..EUR199811-200110

main19810-17020i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main19810-17020i14B..BU211..LHD..T3199905-200212

RUSSIA SPEC

main19810-17020i15BFT..BU212..RHD..IV3;15BFT..BU212..30T..IV3;14B,15BFT..BU101,222..(175T,40T)..GEN;15BF,15BFTE..BU102,112,212,213,223..GEN..IV3199610

19829AGASKET, INTAKE HEATER

main19829-17010i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main19829-17010i14B..BU211..LHD..T3199905-200212

RUSSIA SPEC

main19829-17010i15BFT..BU142..EUR;15BFT..BU212..RHD..IV3;15BFT..BU212..30T..IV3;14B,15BFT..BU101,222..(175T,40T)..(EUR,GEN);15BF,15BFTE..BU102,112,212,213,223..GEN..IV3199605

2606

3 parts on this diagram · 5 diagrams in section
