CAUTION PLATE & NAME PLATE (ENGINE)

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-54020i14B,15BF,3B..BU100,101,110,142,212,222..ARL199505

main11278-58010i15BF..BU212..CBU199703

main11278-58020i15BFT..BU212..CBU;15BFT..BU142,212..LHD..GEN199808-199908

11284PLATE, ENGINE BOLT INFORMATION

main11284-56040i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-199905

main11284-58010i3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN199505-199905

CHINA SPEC

11291PLATE, ENGINE NAME

main11291-58030i15BFT..BU142,222..EUR199605

11292PLATE, ENGINE NAME, NO.2

main11292-74130i3RZFE..RZU100199703-199905

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-56080i15BFT..BU222..RHD;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU212..30T..CBU;15BF..BU142,212,222..RHD;14B,15BFT,3B..BU10#,110,111,14#,211,221..ARL,EUR,GEN,SA199505-200008

11293BLABEL, TUNE-UP SPECIFICATION INFORMATION

main11293-56090i3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN199505-199905

CHINA SPEC

11296PLATE, TIMING BELT CAUTION

main11296-0L010i15BFT..BU102,142,212..RHD..IV3200210

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-58010i14B..BU111..RHD;14B,3B..BU100,101,140,141,211,221..GEN199505

11297PLATE, ENGINE CAUTION, NO.3

main11297-71010i4Y..YU210199505

11298PLATE, EMISSION CONTROL INFORMATION

main11298-58012i14B..BU102,112,212,222199505-199602

main11298-58013i14B..BU102,112,212,222199602-199612

main11298-58014i14B..BU102,112199612-199703

main11298-58020i15BFT..BU212..30T;15BFT..BU222..LHD199610-199710

main11298-58021i15BFT..BU222..LHD;15BFT..BU212..30T..IV3199710-199810

main11298-58022i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN199810-199908

main11298-58030i15BF..BU102,112,212..GEN..IV3199703-199710

main11298-58031i15BF..BU102,112,212..GEN..IV3199710-199810

main11298-58032i15BF..BU102,112,212..GEN..IV3199810-199908

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-64020i15BFT,3B..BU140,142,222..EUR199505

main90917-07108i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B,3RZFE,4Y..BU10#,11#,14#,212,222,RZU100,YU210..ARL,GEN,SA,TAIW199505-199907

main90917-07109i15BFTE..BU213,223199908

23923PLATE, FUEL SEDIMENTER CAUTION

main23923-56010i14B..BU211,221..40T..SA199505-200008

main23923-64021i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,222..ARL,GEN,SA,TAIW199505-199808

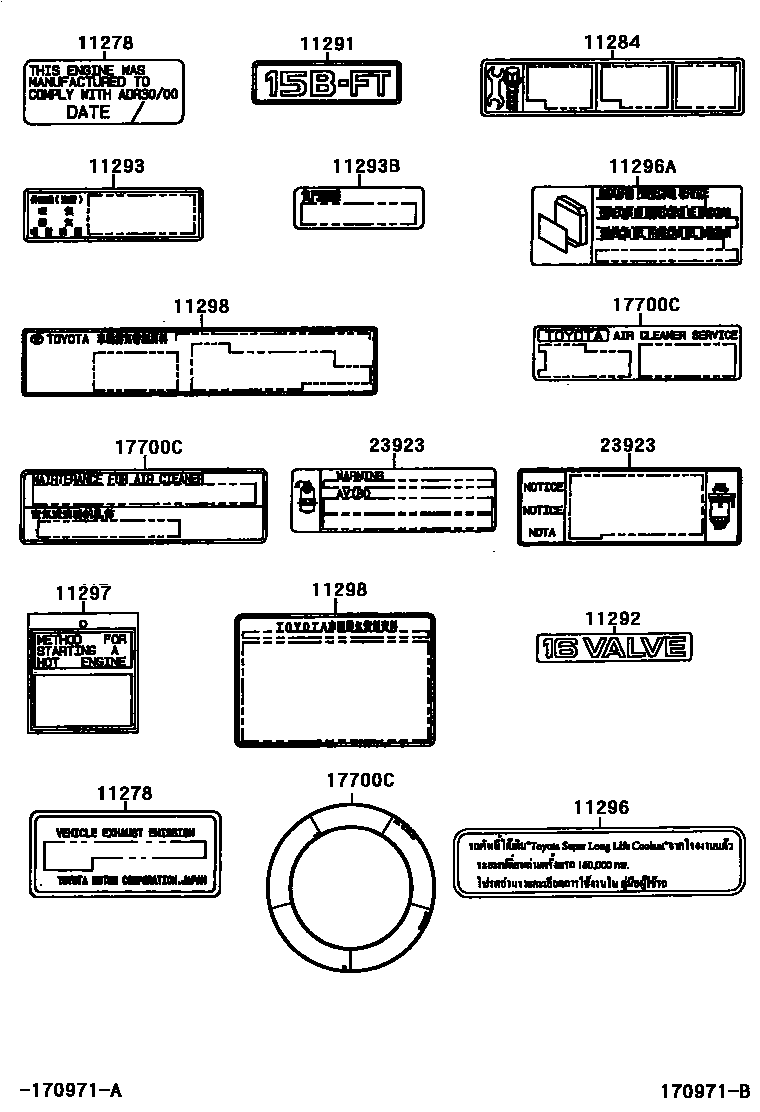

12 parts on this diagram · 1 diagram in section
