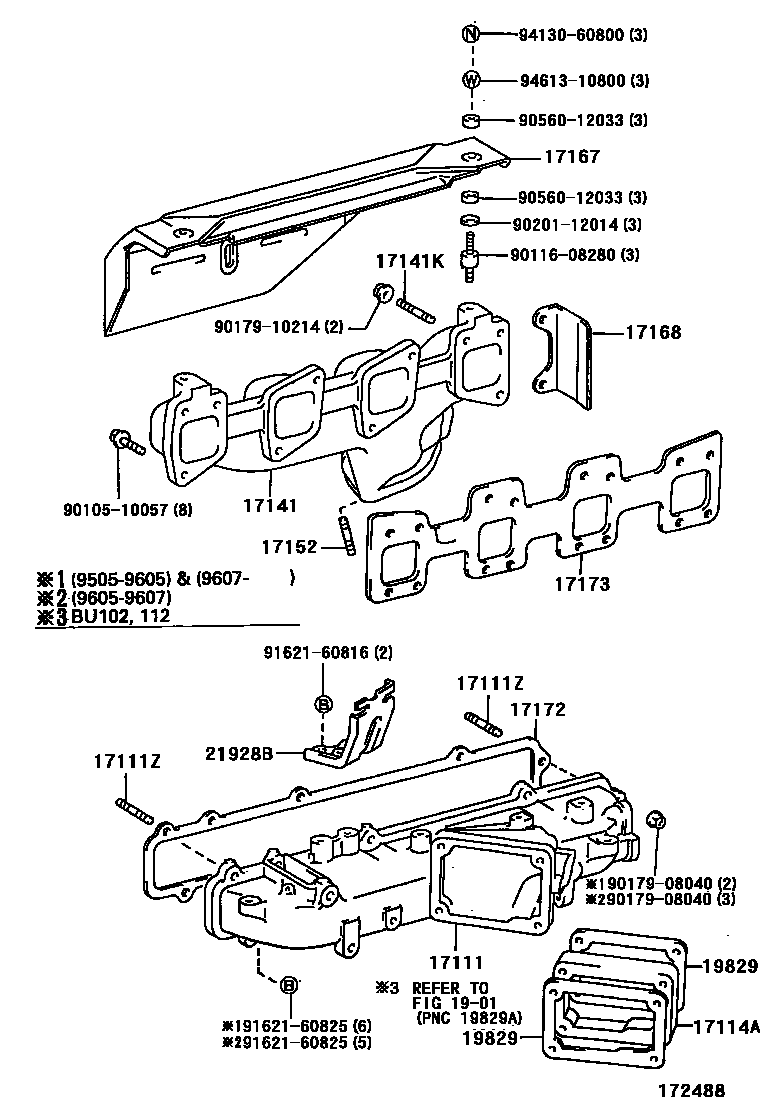

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

17111MANIFOLD, INTAKE

main17101-75060i3RZFE..RZU100..15T199908

main17111-58040i15BF,15BFT..BU102,112,142,212,222199505

main17111-58060i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main17111-58080i3B..BU100,110,140199505-199908

main17111-58120i15BFTE..BU213,223199908

main17111-71020i4Y..YU210199505

main17111-75030i3RZFE..RZU100199703-199708

sub17111-75031

main17111-75031i3RZFE..RZU100..RHD199708

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08352i14B..BU101,111,141,211,221199505-200008

main92132-60820i15B#..BU142,212199505-199607

17114AFLANGE, INTAKE

main17114-58020i15BFT..BU212..LHD..40T;15BF..BU142,212,222..RHD;14B..BU101,102,111,112,141,21#,22#199505-200008

17141MANIFOLD, EXHAUST

main17141-56060i14B,3B..BU10#,11#,140,141,211,212,221,222199505

main17141-58030i15BF..BU102,112,142,212,222199505-200005

sub17141-58031

main17141-58031i15BF..BU142,212,222200005

main17141-58050i15BFT..BU102,142,212,222199505

sub17141-58051

main17141-58070i15BFTE..BU213,223199908

main17141-71020i4Y..YU210199505

main17141-75051i3RZFE..RZU100..RHD199703-199910

sub17141-75052

main17141-75052i3RZFE..RZU100..RHD199910

main17141-75061i3RZFE..RZU100..15T199908

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90116-10063i14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

main90116-10063i15BFT..BU102,142,212,222199505

NO.1

main90116-10198i15BFT..BU102,142,212,222199505

NO.2

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10146i4Y..YU210199505

main90116-10149i3RZFE..RZU100199703

main90126-10006i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-56040i14B,3B..BU100,101,110,140..ARL,EUR199505

sub17167-56060

sub91621-B0816

main17167-56060i14B..BU101,111,141,211,221..GEN,SA199505-200008

main17167-58040i15BF..BU102,112,142,212,222199505

main17167-58050i15BFT..BU102,142,212,222199505

main17167-58060i15BFTE..BU213,223199908-200108

sub17167-58061

main17167-58061i15BFTE..BU213,223200108

main17167-71020i4Y..YU210199505

main17167-75041i3RZFE..RZU100..RHD199703

main17167-75050i3RZFE..RZU100..15T199908

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main12521-72010i4Y..YU210199505

main17168-58050i15BF,15BFT..BU102,112,142,212,222199505

main17168-58060i14B..BU101,111,141,211,221199505-200008

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-58010i15BF,15BFT..BU102,112,142,212,222199505

main17171-58020i14B,3B..BU10#,11#,140,141,211,212,221,222199505-200008

main17171-58030i15BFTE..BU213,223199908

main17172-73010i4Y..YU210199505

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-56040i14B..BU101,111,141,211,221199505-200008

main17173-58030i15BF..BU102,112,142,212,222199505

main17173-58040i15BFT..BU102,142,212,222199505

main17173-58050i15BFTE..BU213,223199908

main17173-75020i3RZFE..RZU100199703

1901

19829GASKET, INTAKE HEATER

main19829-17010i15BFT..BU222..SA;15BFT..BU212..25T,40T;15BFT..BU212..30T..CBU;15BF..BU142,212,222..RHD;14B,15BFT..BU101,102,111,141,142,211,221..ARL,GEN,SA199505-200008

21928BSUPPORT, THROTTLE WIRE

main21928-58070i14B..BU101,102,111,112,141,211,212,221,222199505-200008

main21928-58100i15BF..BU142,212,222199505

9010510057

main90105-10057

9011608280

main90116-08280

9017908040

main90179-08040

9017910214

main90179-10214

9020112014

main90201-12014

9056012033

main90560-12033

9162160816

main91621-60816

9162160825

main91621-60825

9413060800

main94130-60800

9461310800

main94613-10800

23 parts on this diagram · 9 diagrams in section
