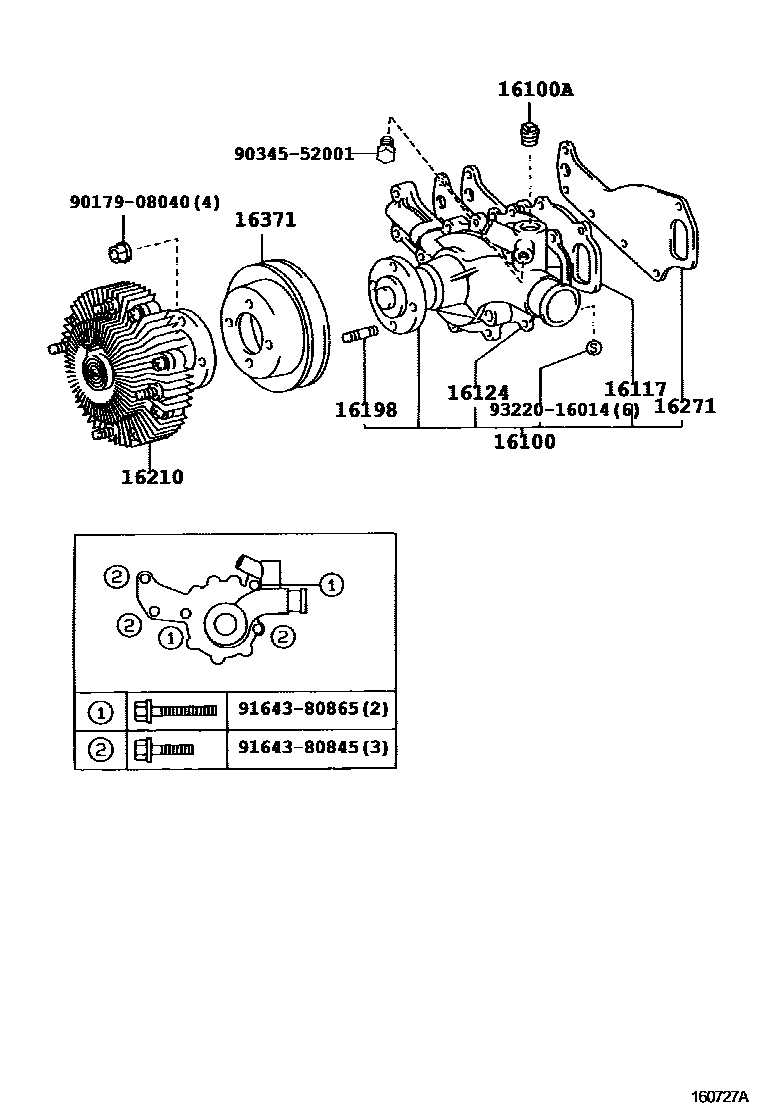

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-59166i14B..BU211..LHD..T3;14B..BU101..175T..GEN¥11,200199905-200212

RUSSIA SPEC

main16100-59166i15BF,15BFT..BU102,112,142,212,222;14B,15BF,3B..BU10#,110,112,140,142,212,222..ARL,EUR,TAIW¥11,200199505

main16100-59166i14B..BU111,141,211..LHD..(DM1,T3)¥11,200199505-199905

CHINA SPEC

main16100-59166i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3¥11,200199505-199703

HONGKONG SPEC

main16100-59176i14B..BU101,111,141,211,221..GEN,SA¥13,900199505-200008

main16100-59295i15BFTE..BU213,223¥14,800199908

main16100-79036i4Y..YU210¥9,800199505-199611

sub16100-79037¥9,800

main16100-79037i4Y..YU210¥9,800199611

main16100-79255i3RZFE..RZU100¥15,700199703

sub16100-79445¥10,700

16100APLUG, WATER PUMP

main90345-54005i15BFT..BU142,212..LHD..(25T,40T);14B,3B..BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3)¥270199505-199808

16117PLATE, WATER PUMP

main16117-58010i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222¥1,010199505-200008

main16117-58090i15BFTE..BU213,223¥1,470199908

16124GASKET, WATER PUMP COVER

main16124-58010i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222¥650199505-200008

main16124-58090i15BFTE..BU213,223¥1,010199908

main16124-71011i4Y..YU210¥500199505

main16124-75030i3RZFE..RZU100¥550199703

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3¥230199505-199703

HONGKONG SPEC

main16198-41170i14B..BU111,141,211..LHD..(DM1,T3)¥230199505-199905

CHINA SPEC

main16198-41170i14B..BU211..LHD..T3¥230199905-200212

RUSSIA SPEC

main16198-41170i14B..BU101..ARL;14B..BU101..175T..GEN;15B#..BU102,112,142,212,213,222,223;14B,15BF,3B..BU100,102,110,112,140,142,212,222..ARL,EUR,SA,TAIW¥230199505

main92122-60818i3RZFE..RZU100¥160199703

16210COUPLING ASSY, FLUID

main16210-58030i14B..BU101..ARL;14B..BU101..175T..GEN;15BF,15BFT,3B..BU100,102,112,142,212,222¥19,900199505-199905

main16210-58030i14B..BU111,141,211..LHD..(DM1,T3)¥19,900199505-199905

CHINA SPEC

main16210-58030i14B..BU211..LHD..T3¥19,900199905-200212

RUSSIA SPEC

main16210-58030i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3¥19,900199505-199703

HONGKONG SPEC

main16210-58060i15BFTE..BU213,223¥37,800199908

sub16210-58070¥37,500

main16210-73010i4Y..YU210¥30,600199505

main16210-75060i3RZFE..RZU100¥37,800199703

16271GASKET, WATER PUMP

main16271-56031i14B,15B#,3B..BU10#,11#,14#,21#,22#¥930199505-199905

sub16271-58010¥990

main16271-58010i14B,15B#,3B..BU10#,11#,14#,21#,22#¥990199905-200008

16371PULLEY, FAN

main16371-56060i14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3¥5,200199505-199703

HONGKONG SPEC

main16371-56060i14B..BU111,141,211..LHD..(DM1,T3)¥5,200199505-199905

CHINA SPEC

main16371-56060i14B..BU101,102,112,212,222..ARL,TAIW¥5,200199505-200212

main16371-56060i14B..BU211..LHD..T3;14B..BU101..175T..GEN¥5,200199905-200212

RUSSIA SPEC

main16371-56070i14B..BU101,111,141,211,221..GEN,SA¥3,530199505-200008

main16371-58060i15BF..BU102,112,212;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA¥4,280199505-200212

main16371-58070i15BFT..BU102,142,212,222¥2,960199505

main16371-58090i15BFTE..BU213,223¥4,000199908

main16371-71010i4Y..YU210¥6,100199505-200203

sub16371-71021¥6,300

main16371-71021i4Y..YU210¥6,300200203

main16371-75030i3RZFE..RZU100¥5,700199703

9017908040

main90179-08040¥100

9034552001

main90345-52001¥230

9164380845

main91643-80845¥110

9164380865

main91643-80865¥110

9322016014

main93220-16014¥80

13 parts on this diagram · 4 diagrams in section
