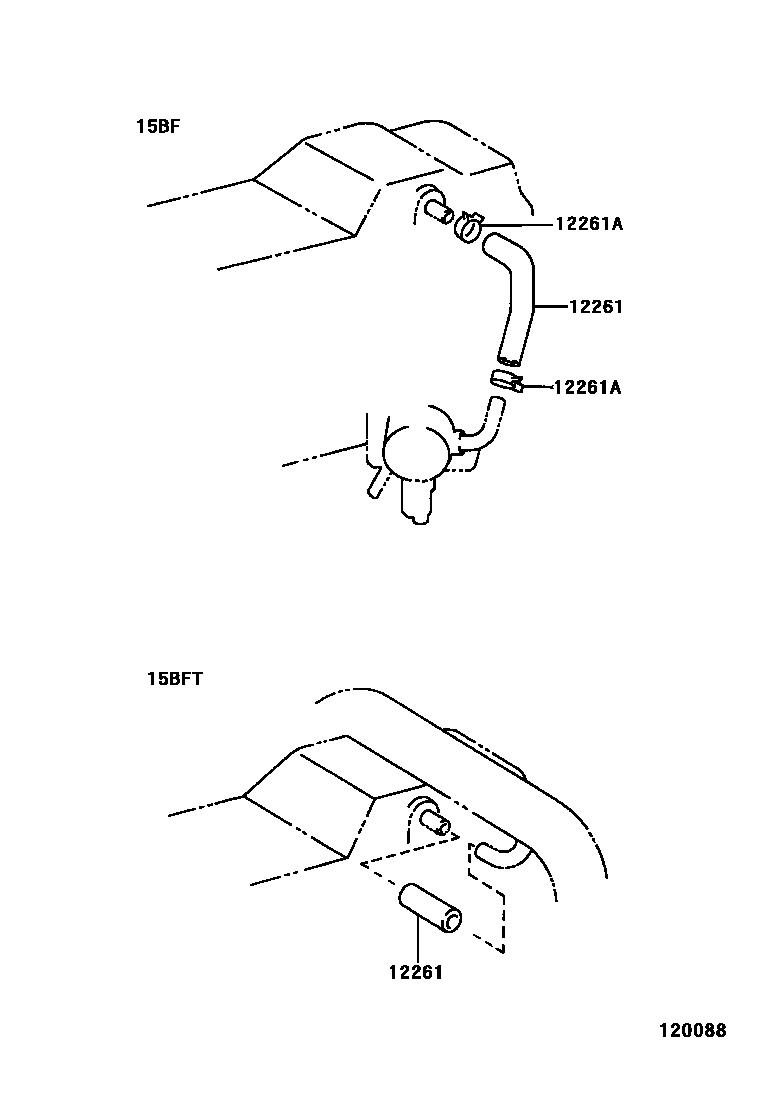

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

12261HOSE, VENTILATION

main12261-56020i14B..BU101,111,141,211,221199505-200008

main12261-58070i15BF..BU102,112,142,212199505-199708

sub12261-58071

main12261-58071i15BF..BU102,112,142,212,222199708

main12261-58090i15BFTE..BU213,223199908

main12261-72020i4Y..YU210199505

main12261-75030i3RZFE..RZU100199703-199906

main12261-75080i3RZFE..RZU100199906

main12262-58020i15BFT..BU102,142,212,222199505

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i3RZFE..RZU100199906

NO.1

main90467-14001i3RZFE..RZU100199703-199906

main90467-22010i3RZFE..RZU100199906

NO.2

main90467-23002i14B,15BF,15BFTE,3B..BU10#,11#,14#,21#,22#199505-200008

2 parts on this diagram · 5 diagrams in section
