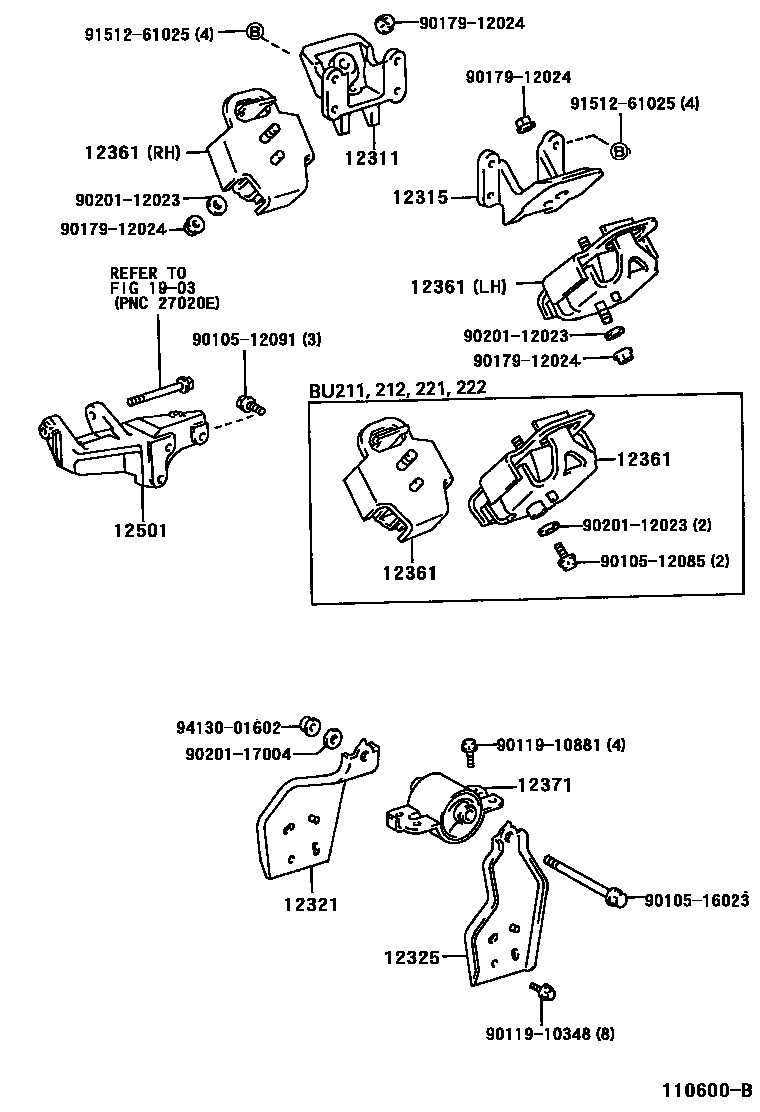

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-56040i14B,15BF,15BFT,3B..BU10#,11#,14#199505

main12311-58021i14B,15B#..BU21#,22#199505-200008

main12311-71010i4Y..YU210199505

main12311-75040i3RZFE..RZU100199703

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-56040i14B,15BF,15BFT,3B..BU10#,11#,14#199505

main12311-58021i14B,15B#..BU21#,22#199505-200008

main12315-71010i4Y..YU210199505

main12315-75041i3RZFE..RZU100199703

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-56080i3RZFE..RZU100199505

main12321-58050i4Y..YU210199505-200008

main12321-58210i15BFTE..BU213,223199908

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-56070i14B,15BF,15BFT,3B..BU10#,11#,14#199505

main12325-58050i4Y..YU210199505-200008

main12325-58170i15BFTE..BU213,223199908

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35050i4Y..YU210199505

main12361-56071i14B,15BF,3B..BU10#,11#,14#199505

RH

main12361-58040i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#..BU212,213,222,223199505

main12361-58110i15BFT..BU102,142199605

RH

main12361-75030i3RZFE..RZU100199703

sub12361-75031

sub90179-12127

main12362-56011i14B,15BF,3B..BU10#,11#,14#199505

LH

main12362-58020i15BFT..BU102,142199605

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-56041i14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223199505

main12371-56050i14B..BU211,221..40T..SA199505-200008

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-56010i14B,15BF,15BFT..BU10#,111,14#,211,212,221,222199505-200008

1903

9010512085

main90105-12085

9010512091

main90105-12091

9010516023

main90105-16023

9011910348

main90119-10348

9011910881

main90119-10881

9017912024

main90179-12024

9020112023

main90201-12023

9020117004

main90201-17004

9151261025

main91512-61025

9413001602

main94130-01602

18 parts on this diagram · 4 diagrams in section
