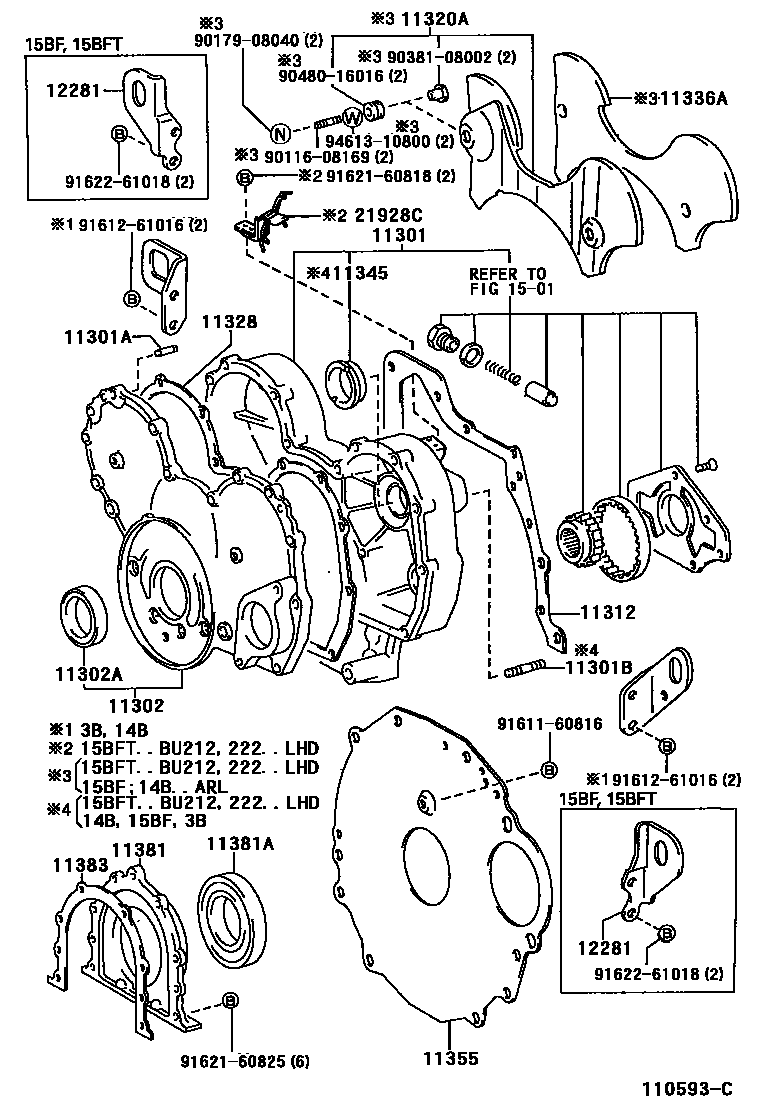

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-58010i15BFT..BU212,222..LHD;15BF..BU102,112,142,212199505-199705

sub11301-58011

main11301-58011i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199705-199905

sub11301-58012

main11301-58012i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199905

main11301-58020i14B,3B..BU10#,11#,140,141,21#,22#199505-199905

sub11301-58021

main11301-58021i14B..BU101,111,141,211,221199905-200008

main11301-58030i15BFT..BU142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605-199905

sub11301-58031

main11301-58030i15BFT..BU212..LHD..40T199808-199905

CHILE SPEC

sub11301-58031

main11301-58031i15BFT..BU212..LHD..40T199905

CHILE SPEC

main11301-58040i15BFTE..BU213,223199908

main11301-71010i4Y..YU210199505

main11301-75020i3RZFE..RZU100199703-199704

sub11301-75021

main11301-75021i3RZFE..RZU100199704

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-06001i4Y..YU210199505

L=14,OD=6

main90250-08120i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-08169i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-58010i15BFT..BU212..LHD..40T199505-199904

CHILE SPEC

sub11302-58011

main11302-58010i15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF,3B..BU100,102,110,112,140,142,212,222..ARL,EUR,TAIW199505-199904

W(POWER STEERING)

sub11302-58011

main11302-58011i15BFT..BU222;15BFT..BU212..LHD;14B,15BF..BU101,111,142,221..ARL,GEN;14B,15BF..BU141,211,212,222..CBU,IV3199904-200111

main11302-58020i14B..BU101,141..SA199802-199904

sub11302-58021

main11302-58020i14B..BU211,221;14B,3B..BU100,101,111,140,141..GEN199505-199904

W/O(POWER STEERING)

sub11302-58021

main11302-58021i14B..BU141,211..GEN;14B..BU211..40T..SA;14B..BU101,111,221..GEN,SA199904-200212

W/O(POWER STEERING)

main11302-58030i15BFT..BU142;15BFT..BU212,222..RHD199605-199904

sub11302-58031

main11302-58031i15BFT..BU212..LHD..40T199904-200212

CHILE SPEC

main11302-58031i15BFT..BU142,222..EUR;15BFT..BU212,222..RHD..GEN199904-200203

main11302-58040i15BFT..BU142..GEN199808-199904

THAILAND SPEC

sub11302-58041

main11302-58041i15BFT..BU142..25T200203-200212

main11302-58041i15BFT..BU102,142..GEN199904-200203

THAILAND SPEC

main11302-58060i15BFTE..BU213,223199908

main11321-71010i4Y..YU210199505

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-42019i4Y..YU210199505-199904

sub90311-42036

main90311-42036i4Y..YU210199904

main90311-50013i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200203

11312GASKET, FRONT END PLATE

main11312-56040i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222199505-200008

main11312-58010i15BFTE..BU213,223199908

11320ACOVER ASSY, TIMING GEAR, NO.2

main11320-58010i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF..BU101,142,222..ARL;15BF..BU102,112,212..ARL,GEN199505

main11320-58030i15BFTE..BU213,223199908

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-56050i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-199905

main11328-58010i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222199905-200008

main11328-58020i15BFTE..BU213,223199908

main11328-71012i4Y..YU210199505

main11328-75020i3RZFE..RZU100199703-199904

sub11328-75021

main11328-75021i3RZFE..RZU100199904

11336AINSULATOR, TIMING GEAR COVER

main11336-58010i15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF..BU101,142,222..ARL;15BF..BU102,112,212..ARL,GEN199505

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222199505-200008

11355PLATE, REAR END

main11355-56061i14B,15BF..BU101,111,14#,211,221199505-200008

main11355-58050i15BFT..BU102;15BF,15BFT..BU102,112,142,212,222..25T,30T,40T199505

main11355-71010i4Y..YU210199505

main11355-75010i3RZFE..RZU100199703

11381RETAINER, ENGINE REAR OIL SEAL

main11381-58010i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-199905

sub11381-58011

main11381-58011i14B,15B#,3B..BU10#,11#,14#,21#,22#199905-200008

main11381-71010i4Y..YU210199505

main11381-75010i3RZFE..RZU100199703

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90311-80009i4Y..YU210199505-200009

sub90311-80014

main90311-80014i4Y..YU210200009

main90311-88003i3RZFE..RZU100199703-200009

main90311-88004i3RZFE..RZU100200009

ARS

sub90311-88005

main90311-88005i3RZFE..RZU100200009

NOK

sub90311-88006

main90311-95011i14B,15B#..BU10#,111,14#,21#,22#199505-200008

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56040i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

main11383-71010i4Y..YU210199505

12281HANGER, ENGINE, NO.1

main12281-58010i15BF,15BFT..BU102,112,142,212,222199505

1501

21928CSUPPORT, THROTTLE WIRE

main21928-58130i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN199505

9011608169

main90116-08169

9017908040

main90179-08040

9038108002

main90381-08002

9048016016

main90480-16016

9161160816

main91611-60816

9161261016

main91612-61016

9162160818

main91621-60818

9162160825

main91621-60825

9162261018

main91622-61018

9461310800

main94613-10800

27 parts on this diagram · 5 diagrams in section
