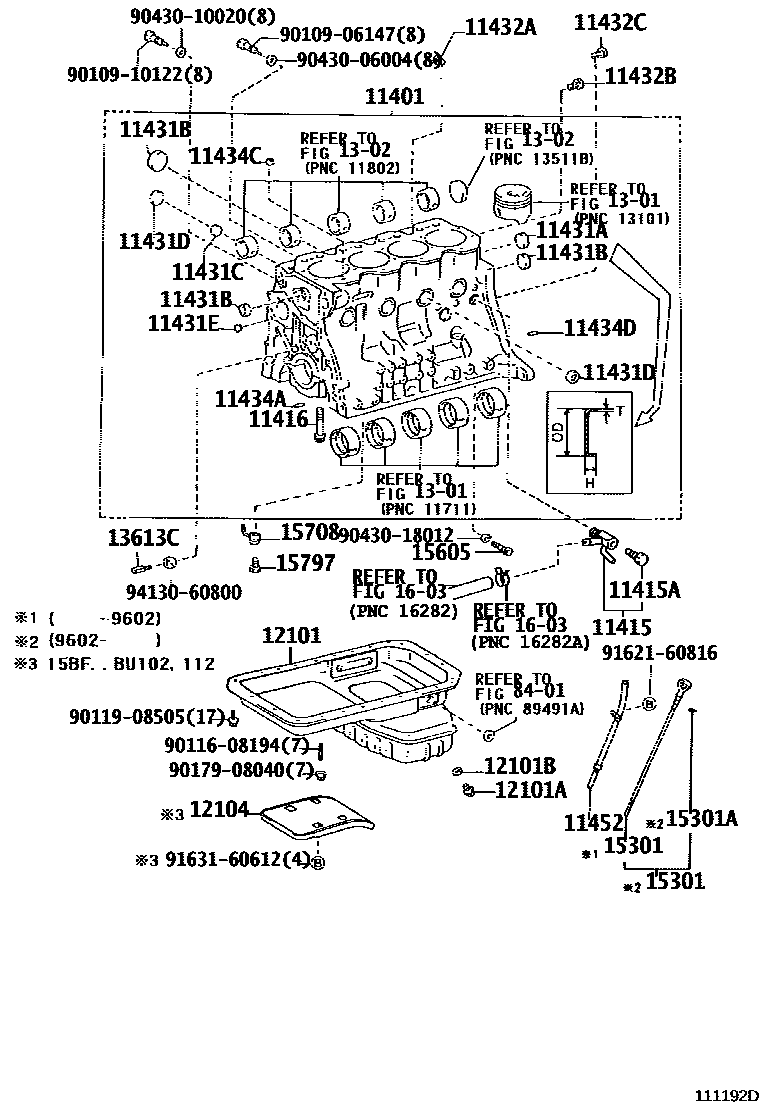

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59397i14B..BU101,102,111,112,141,211,212,221,222199505

sub11401-59398

sub13511-56071

main11401-59417i3B..BU100,110,140199505-199908

main11401-59575i15BF..BU102,112,142,212,222199505

main11401-59595i15BFT..BU222..EUR,SA;15BFT..BU212,222..LHD..GEN199505

sub11401-59596

sub13511-58021

main11401-59625i15BFT..BU102,142;15BFT..BU212,222..RHD..GEN199605

main11401-59725i15BFTE..BU213,223199908

sub11401-59726

sub13511-58031

main11401-79206i4Y..YU210199505

main11401-79685i3RZFE..RZU100199703-199904

sub11401-79686

main11401-79686i3RZFE..RZU100199904

sub11401-79687

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09078i15BFT..BU222..SA;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN;15BF,15BFTE..BU102,112,212,213,222,223199505

main90910-09078i14B..BU111,141,211..LHD..(DM1,T3)199505-199905

CHINA SPEC

main90910-09078i14B..BU211..LHD..T3;14B..BU101..175T..GEN199905-200212

RUSSIA SPEC

main90910-09091i3RZFE..RZU100199703-199905

main90910-09095i15BFT..BU222..EUR;14B..BU101..GEN,SA;15BFT..BU212,222..RHD..GEN;14B,15BFT,3B..BU100,102,110,111,14#,211,221199904-200008

main90910-09095i15BFT..BU212..LHD..40T199904-200212

CHILE SPEC

main90910-09118i3RZFE..RZU100199905

main96431-53828i15BFT..BU212,222..RHD..GEN;14B,15BFT..BU212,222..EUR,TAIW;14B,15BFT,3B..BU10#,11#,14#,211,221199505-200205

main96431-53828i15BFT..BU212..LHD..40T199808-199904

CHILE SPEC

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i3RZFE..RZU100199703-200008

main96432-23814i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200205

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-16068i15BFTE..BU213,223199908

*16-2.0PX126-32

main90105-16069i15BFTE..BU213,223199908

*16-2.0PX109-32

main90910-02032i4Y..YU210199505

main90910-02082i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222199505-200008

*16-2.0PX93.5-32

main90910-02083i14B,15BF,15BFT..BU10#,111,14#,211,212,221,222199505-200008

*16-2.0PX129.5-32

main90910-02092i3RZFE..RZU100199703

sub90910-02179

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-01800i4Y..YU210199505

main96411-14500i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-199905

main96411-63000i3RZFE..RZU100199703

main96411-64500i14B,15B#,3B..BU10#,11#,14#,21#,22#199905-200008

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-50003i14B,15B#..BU10#,111,14#,21#,22#199505-200008

OD=50,T=1.2,H=9

main96411-43500i4Y..YU210199505

main96411-45000i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-199905

T=1.6,H=12

main96411-63500i3RZFE..RZU100199703

main96411-65000i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

OD=50,T=1.2,H=12

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-45000i4Y..YU210199505

main96411-63000i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

main96411-64000i3RZFE..RZU100199703

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-45000i4Y..YU210199505

main96411-63500i14B,15B#..BU10#,111,14#,21#,22#199505-200008

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-14006i14B,15B#..BU10#,111,14#,21#,22#199505-200008

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51007i14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222199505-200008

main90345-53009i3RZFE..RZU100199703

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-53011i4Y..YU210199505

main90345-53004i14B,15B#..BU10#,111,14#,21#,22#199505-200008

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-52001i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

L=18,OD=8

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15008i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

L=9.0,OD=14.5

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3RZFE..RZU100199703

L=14,OD=6

main90250-08120i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

L=18,OD=8

11452GUIDE, OIL LEVEL GAGE

main11409-58010i15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222199505

main11409-58020i15BFT..BU212..LHD..40T199808

CHILE SPEC

main11409-58020i15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN199605

main11409-75020i3RZFE..RZU100199703

main11452-56050i14B,3B..BU10#,11#,140,141,211,212,221,222199505-200008

main11452-58080i15BFTE..BU213,223199908

main11452-71020i4Y..YU210199505

12101PAN SUB-ASSY, OIL

main12101-58092i15BFT..BU212..LHD..40T199808

THAILAND SPEC

main12101-58092i15BFT..BU212..LHD..40T;14B,3B..BU10#,111,112,140,141,21#,22#..GEN,SA,TAIW199505-199808

main12101-58092i15BFT..BU212..CBU;15BF,15BFT..BU212,222..SA;14B,15BFT,3B..BU10#,111,14#,211,221..GEN,SA199808

CHILE SPEC

main12101-58102i15BFT..BU222;15BFT..BU212..30T;15BF,3B..BU100,110,140,142,212..ARL,EUR199505-199701

sub12101-58170

main12101-58170i15BFT..BU222..EUR,GEN;15BFT..BU212..RHD..IV3;15BFT..BU212..30T..IV3;15BF..BU102,112,212..ARL,GEN;14B,15BF,3B..BU100,101,110,142,222..ARL199701

main12101-58190i15BFT..BU142..EUR199605

main12101-58221i15BFTE..BU213,223199908

main12101-73020i4Y..YU210199505

main12101-75060i3RZFE..RZU100199703

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i4Y..YU210199505-200212

main90341-12026i3RZFE..RZU100199505-200210

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i4Y..YU210199505

12104COVER SUB-ASSY, OIL PAN, NO.1

main12104-58020i15BF..BU102,112;15BFT..BU212,222..RHD..GEN..IV3;14B,15BFT..BU101,142,222..ARL,EUR199605-200206

sub12104-58021

main12104-58021i14B..BU101..ARL;15BFT..BU212..RHD..IV3200206

1301

1302

13613CNOZZLE, OIL

main90915-01015i14B,15B#,3B..BU10#,11#,14#,21#,22#199505-200008

15301GAGE SUB-ASSY, OIL LEVEL

main15301-58011i14B,3B..BU10#,11#,140,141,211,212,221,222199505-200209

main15301-58040i15B#..BU142,212199505-199602

sub15301-58060

main15301-58050i15BFTE..BU213,223199908

main15301-58060i15BF,15BFT..BU102,112,142,212,222199602

main15301-58110i14B..BU101,111,141,211,221200209

main15301-71020i4Y..YU210199505

main15301-75020i3RZFE..RZU100199703

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i15B#..BU102,112,142,212,213,222,223199602

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010i15BFTE..BU213,223199908

main15605-56010i14B,15BF,15BFT..BU10#,111,14#,211,212,221,222199505-200008

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-56010i14B..BU101,111,141,211,221199505-200008

main15708-58040i15BF..BU102,112,142,212,222199505

main15708-58050i15BFT..BU102,142,212,222199505

main15708-58060i15BFTE..BU213,223199908

15797BOLT, OIL NOZZLE UNION

main15797-58020i15BF,15BFT..BU102,112,142,212,222199505

1603

8401

9010906147

main90109-06147

9010910122

main90109-10122

9011608194

main90116-08194

9011908505

main90119-08505

9017908040

main90179-08040

9043006004

main90430-06004

9043010020

main90430-10020

9043018012

main90430-18012

9162160816

main91621-60816

9163160612

main91631-60612

9413060800

main94130-60800

41 parts on this diagram · 6 diagrams in section
