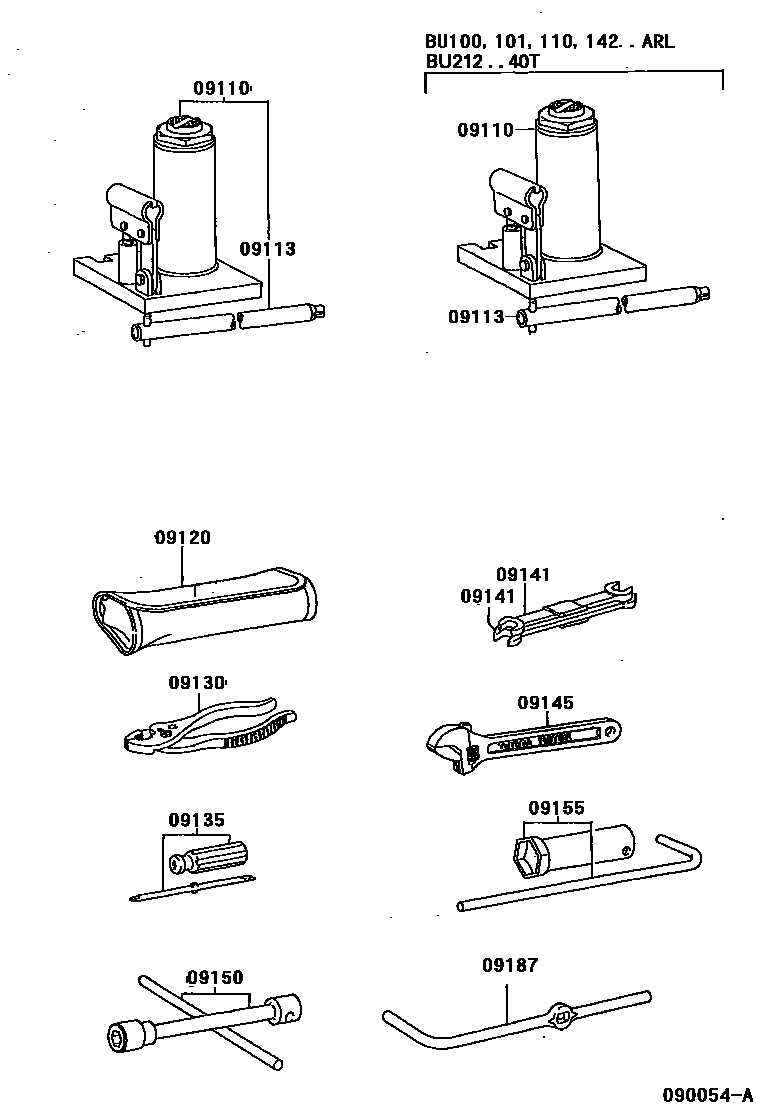

STANDARD TOOL

09110JACK ASSY

main09110-36041iBU10#..WT..(GEN,SA,TAIW)..TS199505

sub09111-36042

main09110-36090iBU111,112,211..(DM1,DM6,T3)..(20T,30T);BU101,102,14#,212,YU210..(25T,30T)..(EUR,GEN,SA,TAIW)199505-199703

sub09111-36110

main09110-36131iBU21#,22#..40T..(EUR,GEN,SA)200008

sub09111-36131

main09110-36160iBU100,101..ST..GEN;BU102,RZU100..(15T,20T)..TB199505

sub09111-36160

main09110-37020iBU100,101..ARL..IV3..TS199505

main09110-37030iBU100,101..(T2,TW2)..ARL199505

main09110-37040iBU110,142,212..(20T,30T)..ARL199505

main09110-37050iBU212,222..40T..ARL199505

09113HANDLE, JACK

main09113-36060iBU10#,RZU100..(15T,175T,20T)..(TB,TS)199505-200007

main09113-36100iBU11#,211..(DM1,DM6,T3)..(20T,30T);BU101,102,14#,212,YU210..(T3,TW1)..WT..(20T,25T,30T)..TB199505-199703

main09113-36130iBU211..TW1;BU21#,22#..40T199505-199703

main09113-37020iBU10#,RZU100..(15T,175T,20T)..(TB,TS)200007

main09113-37030iBU212..30T..IV3;BU111,RZU100..20T,30T;BU101,14#..(T3,TW1)..WT..TB200007

main09113-37050iBU21#,22#..40T200007

sub09113-36140

09120BAG, TOOL

main09120-30020iBU10#,11#,14#,RZU100199505

main09120-36070iBU21#,22#,YU210200008

09130PLIERS

main99913-11500iRZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3199505-200008

09135DRIVER, SCREW

main99915-10700iRZU100..15T;BU10#,111,14#,21#,22#,YU210..CBU,IV3200008

09141SPANNER

main99914-10810iRZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3199505-200008

8 X 10

main99914-11214iRZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3199505-200008

12 X 14

09145WRENCH, MONKEY

main99911-11200iRZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3199505-200008

09150WRENCH, HUB NUT BOX

main09150-25020iBU100,101..ST;BU102..20T..TB199505-199710

main09150-36030iBU10#,11#,14#,RZU100..(DM1,DM6,DM7,T3,TW1)..WT199710

sub09150-37030

main09150-55020iBU21#,22#,YU210199505-200008

09155WRENCH, SPARK PLUG

main09155-41010iYU210199505

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iBU10#,14#,21#,22#,RZU100,YU210..TB,TS199505-200008

10 parts on this diagram · 1 diagram in section
