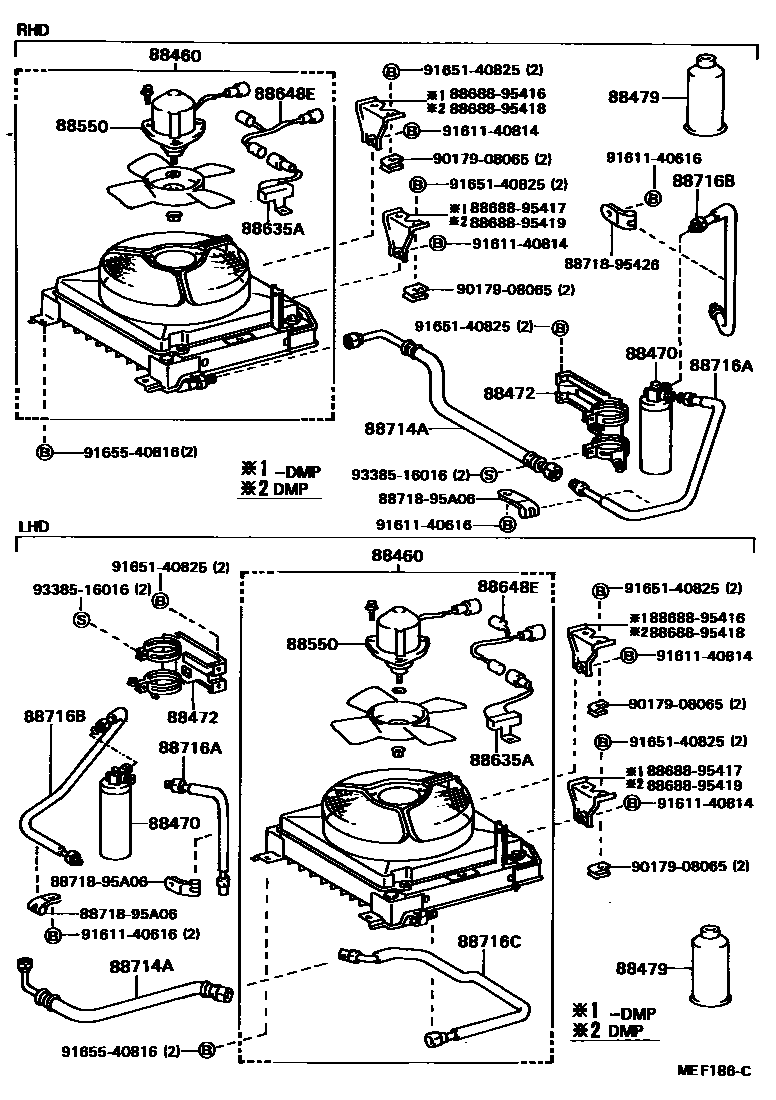

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88460CONDENSER ASSY, COOLER

main88460-95405iBU6#,80,81,82..RHD¥59,400198409-198708

main88460-95406iBU60,61,62,70,80,81..LHD¥59,400198409-198708

main88460-95408iBU75,76,85..RHD¥59,400198409-198708

main88460-95410iBU75,76,85..LHD..GEN¥59,400198409-198708

main88460-95412iBU60,80..LHD..WT¥59,400198411-198708

CHINA SPEC(24V)

main88460-95413iBU85..LHD..GEN¥59,400198508-198708

CHINA SPEC(24V)

88470RECEIVER & DRYER ASSY, COOLER

main88471-95400iBU65..CBU;BU60,61,62,63,70,80,81,82¥6,600198409-198708

sub88471-16010¥7,100

main88471-95401iBU75,76,85..ARL,GEN¥6,600198409-198708

88472BRACKET, RECEIVER TANK, NO.1

main88472-95400iBU60,61,63,80,81..RHD198409-198708

sub88472-95408

main88472-95401iBU60,61,80,81..RHD..T3198409-198708

W/SNORKEL AIR CLEANER

sub88472-95400

main88472-95401iBU62,65..ARL198508-198708

sub88472-95400

main88472-95402iBU60,61,62,70,80,81..LHD198409-198708

sub88472-95409

main88472-95403iBU62..WT..GEN198409-198708

W/SNORKEL AIR CLEANER

sub88472-95402

main88472-95404iBU75,76,85..RHD198409-198708

main88472-95405iBU75,76,85..LHD..GEN198409-198708

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA198409-198708

400G

sub90986-02004

sub90986-02005

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-95406iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA¥21,900198409-198708

main87104-95407iBU60,80..LHD..WT¥21,700198409-198708

CHINA SPEC

88635ARESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)

main87138-95410iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA198409-198708

main87138-95411iBU60,80..LHD..WT198409-198708

CHINA SPEC

88648EWIRING, COOLER

main88648-95419iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA198409-198708

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-95407iBU6#,80,81,82..RHD¥11,300198409-198708

sub88721-36H01¥10,800

main88721-95408iBU60,61,62,70,80,81..LHD¥12,200198409-198708

main88721-95409iBU75,76,85..RHD¥12,900198409-198708

sub88721-36H03¥11,900

main88721-95410iBU75,76,85..LHD..GEN¥12,900198409-198708

sub88721-36H04¥12,000

88714AHOSE, COOLER REFRIGERANT LIQUID, NO.2

main88721-95405iBU6#,80,81,82..RHD¥9,400198409-198708

main88721-95406iBU60,61,62,70,80,81..LHD¥8,000198409-198708

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-95403iBU6#,80,81,82..RHD¥3,500198409-198708

main88716-95404iBU60,61,62,70,80,81..LHD¥2,410198409-198708

main88716-95407iBU75,76,85..RHD¥3,720198409-198708

main88716-95408iBU75,76,85..LHD..GEN¥3,500198409-198708

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-95405iBU6#,80,81,82..RHD¥2,690198409-198708

main88716-95406iBU60,61,62,70,80,81..LHD¥3,620198409-198708

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-95409iBU60,61,62,7#,80,81,85..LHD..GEN¥5,900198409-198708

8868895416BRACKET, COOLER DIAPHRAGM

main88688-95416

8868895417BRACKET, COOLER DIAPHRAGM

main88688-95417

8868895418BRACKET, COOLER DIAPHRAGM

main88688-95418

8868895419BRACKET, COOLER DIAPHRAGM

main88688-95419

8871895426PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95426

8871895A06PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A06

9017908065

main90179-08065¥140

9161140616

main91611-40616¥220

9161140814

main91611-40814¥130

9165140825

main91651-40825¥200

9165540816

main91655-40816¥140

9338516016

main93385-16016¥80

24 parts on this diagram · 6 diagrams in section
