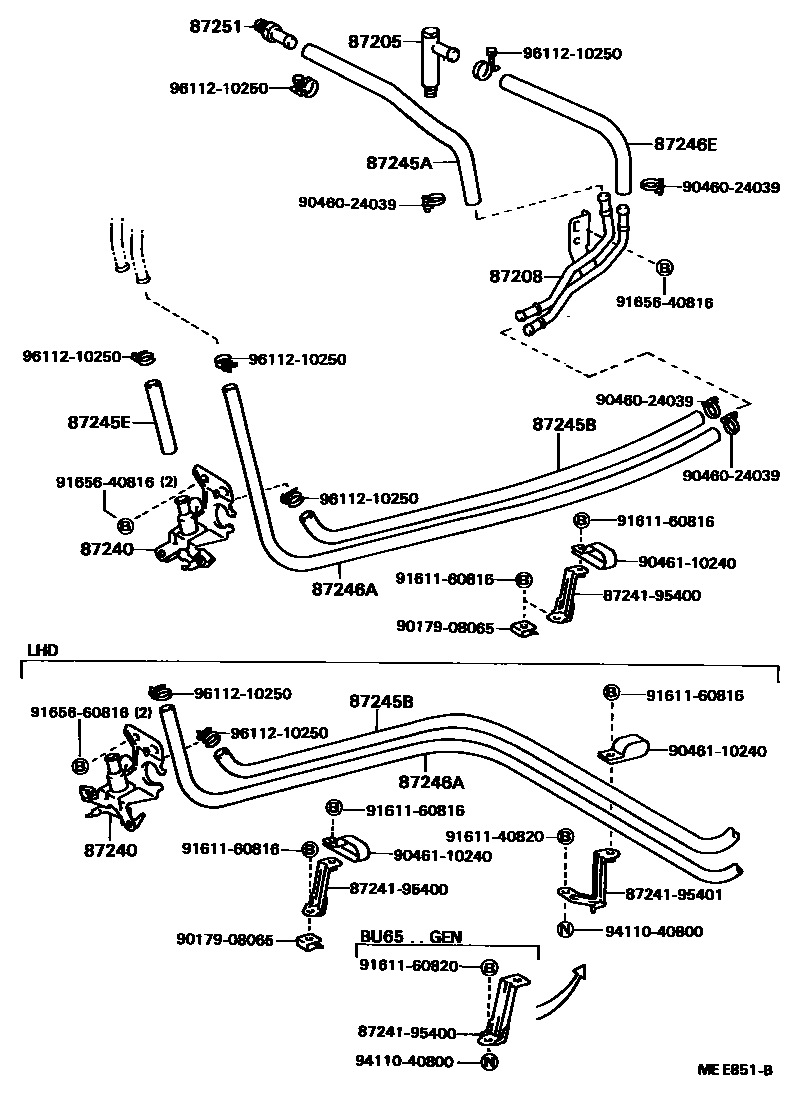

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-95400iBU6#,7#,8#198409-198708

87208PIPE SUB-ASSY, HEATER WATER

main87208-92604iBU60..LHD..TW1198508-198703

W/RR HEATER

main87208-92606iBU85,86..TW1198510-198708

main87208-95402iBU75,76,85198409-198708

main87208-95409iBU6#,70,80,81,82198409-198708

main87208-95417iBU60..LHD..TW1198703-198708

W/RR HEATER

87240VALVE ASSY, HEATER WATER

main87240-95405iBU6#,75,76,8#..RHD198409-198708

sub87240-95407

main87240-95406iBU60,61,62,65,7#,80,81,85..LHD198409-198708

87245AHOSE, HEATER WATER, INLET A

main87245-95457iBU6#,70,80,81,82198409-198708

sub99556-30300

main87245-95467iBU75,76,85,86198409-198708

87245BHOSE, HEATER WATER, INLET B

main87245-95463iBU75,76,85,86..RHD198409-198708

main87245-95465iBU75,76,85..LHD198409-198708

main99556-30680iBU6#,80,81,82..RHD198612-198708

*H,L=680

sub99556-30700

main99556-30700iBU6#,80,81,82..RHD198409-198612

L=700

sub99556-31000

main99556-30980iBU60,61,62,65,70,80,81..LHD198409-198708

*H,L=820

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main99556-30100iBU6#,7#,8#198409-198708

*H,L=60

87246AHOSE, HEATER WATER, OUTLET A

main99556-30700iBU75,76,85,86198409-198708

*H,L=520

sub99556-31000

main99556-30980iBU6#,80,81,82..RHD198409-198708

*H,L=820

sub99556-31000

main99556-30980iBU6#,80,81,82..RHD198409-198708

*H,L=960

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-30250iBU6#,70,80,81,82198612-198708

main87245-95458iBU6#,70,80,81,82198409-198612

sub87245-95460

main87245-95466iBU75,76,85,86198409-198708

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-29020iBU85,86..TW1198510-198708

RR HEATER

main87251-30200iBU6#,7#,8#198409-198708

FR HEATER

8724195400CONTROLLER, WATER VALVE

main87241-95400

8724195401CONTROLLER, WATER VALVE

main87241-95401

9017908065

main90179-08065

9046024039

main90460-24039

9046110240

main90461-10240

9161140820

main91611-40820

9161160816

main91611-60816

9161160820

main91611-60820

9165640816

main91656-40816

9165660816

main91656-60816

9411040800

main94110-40800

9611210250

main96112-10250

21 parts on this diagram · 5 diagrams in section
