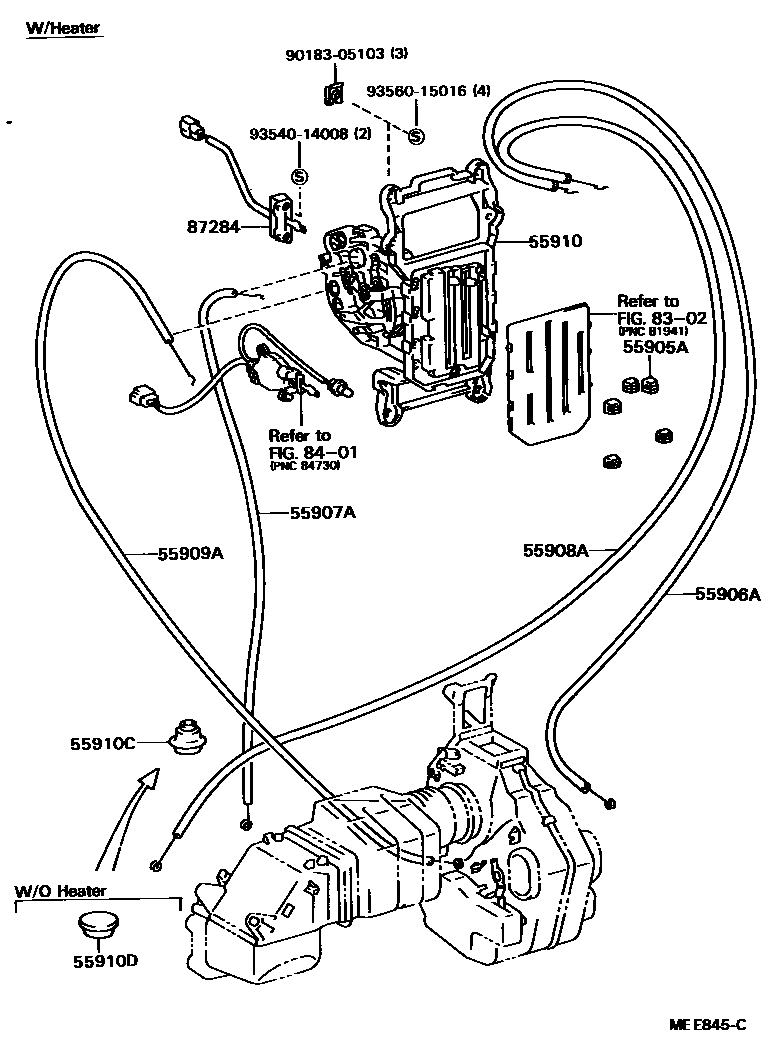

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1

55905AKNOB, HEATER CONTROL

main55905-10110iBU6#,7#,8#198508-198708

CABLE LEVER

main55905-89110iBU6#,7#,8#198409-198508

CABLE LEVER

main55905-95707iBU6#,7#,8#198508-198708

BLOWER SW OR VARIABLE RESISTOR

main55905-95J01iBU6#,7#,8#198409-198508

BLOWER SW OR VARIABLE RESISTOR

sub55905-89110

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95404iBU6#,80,81,82..RHD198409-198708

main55906-95405iBU75,76,85,86..RHD198409-198708

main55906-95406iBU60,61,62,65,70,80,81..LHD198409-198708

main55906-95407iBU75,76,85..LHD198409-198708

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95404iBU6#,80,81,82..RHD198409-198708

main55907-95405iBU75,76,85,86..RHD198409-198708

main55907-95406iBU60,61,62,65,70,80,81..LHD198409-198708

main55907-95407iBU75,76,85..LHD198409-198708

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iBU6#,70,80,81,82198409-198708

main55908-95403iBU75,76,85,86198409-198708

main55908-95404iBU6#,70,80,81,82..GEN,GHD198608-198708

W/FOOT VENTILATOR

main55908-95405iBU75,76,85,86..GEN198608-198708

W/FOOT VENTILATOR

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iBU6#,80,81,82..RHD198409-198708

main55909-95405iBU75,76,85,86..RHD198409-198708

main55909-95406iBU60,61,62,65,70,80,81..LHD198409-198708

main55909-95407iBU75,76,85..LHD198409-198708

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95409iBU6#,7#,8#198409-198708

W/HEATER

sub55910-36090

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

sub55907-36010

sub55907-36020

sub55907-36030

sub55907-36040

main55910-95410iBU60,61,62,63,7#,8#..GEN,GHD198409-198708

W/*BV

sub55910-36100

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

main55910-95411iBU6#,7#,8#..GEN,GHD198608-198708

W/FOOT VENTILATOR

sub55910-36110

sub55906-36090

sub55906-36100

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-15001iBU75,76,85,86198409-198708

main90480-24215iBU6#,70,80,81,82198409-198708

55910DPLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

main90950-01127iBU60,61,62,63,70,80,81,82..GEN,GHD198409-198708

main90950-01258iBU75,76,85,86198409-198708

sub90950-01478

8302

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iBU60,61,62,63,7#,8#..GEN,GHD,SA198409-198708

W/COOLER

9018305103

main90183-05103

9354014008

main93540-14008

9356015016

main93560-15016

14 parts on this diagram · 5 diagrams in section
