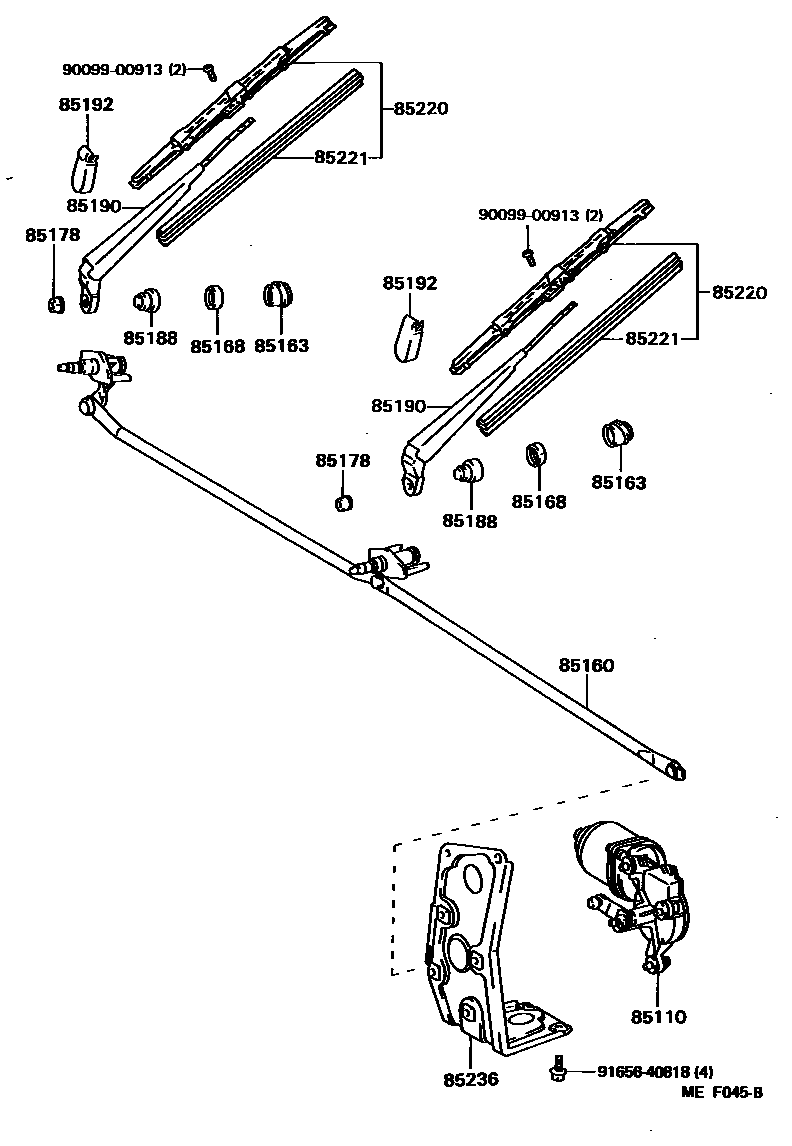

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95431iBU60,61,63,80,81,82..RHD198409-198508

sub85110-95441

main85110-95433iBU60,61,62,70,80,81..LHD198409-198508

sub85110-95443

main85110-95434iBU60..LHD..TW1;BU60,61,80,81,85..LHD..WT..GEN198409-198508

CHINA OR ALGERIA SPEC

sub85110-95444

main85110-95437iBU75,76,85..RHD198409-198508

sub85110-95447

main85110-95439iBU75,76,85..LHD..GEN198409-198508

sub85110-95449

main85110-95440iBU75,85..EUR198409-198508

sub85110-95450

main85110-95441iBU6#,80,81,82..RHD198508-198708

main85110-95443iBU60,61,62,70,80,81..LHD198508-198708

main85110-95444iBU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN198508-198708

CHINA OR ALGERIA SPEC

main85110-95447iBU75,76,85,86..RHD198508-198708

main85110-95449iBU75,76,85..LHD..GEN198508-198708

main85110-95450iBU75,85..EUR198508-198708

CHINA SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85160-95409iBU6#,80,81,82..RHD198409-198708

main85160-95410iBU60,61,62,65,70,80,81..LHD198409-198708

main85160-95411iBU75,76,85,86..RHD198409-198708

main85160-95412iBU75,76,85..LHD198409-198708

85163PACKING, WINDSHIELD WIPER PIVOT

main85179-95400iBU6#,7#,8#198409-198708

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iBU6#,7#,8#198409-198708

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iBU6#,7#,8#198409-198708

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95700iBU6#,7#,8#198409-198708

85190ARM ASSY, WINDSHIELD WIPER

main85190-95417iBU6#,80,81,82..RHD198409-198708

RH

main85190-95418iBU60,61,62,65,70,80,81..LHD198409-198708

RH

main85190-95419iBU75,76,85,86..RHD198409-198708

RH

main85190-95420iBU75,76,85..LHD198409-198708

RH

main85210-95402iBU6#,80,81,82..RHD198409-198708

LH

main85210-95403iBU60,61,62,65,70,80,81..LHD198409-198708

LH

main85210-95405iBU75,76,85,86..RHD198409-198708

CTR

main85210-95406iBU75,76,85,86..RHD198409-198708

LH

main85210-95407iBU75,76,85..LHD198409-198708

LH

main85210-95408iBU75,76,85..LHD198409-198708

CTR

85192COVER, WINDSHIELD WIPER ARM

main85195-95J00iBU6#,7#,8#198409-198708

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12500iBU75,76,85..LHD198409-198708

LH

main85220-12510iBU60,61,62,65,70,80,81..LHD198409-198708

RH

main85220-12560iBU6#,80,81,82..RHD198409-198708

LH

sub85220-12561

main85220-12570iBU75,76,85,86..RHD198409-198708

RH

sub85212-37010

main85220-22380iBU75,76,85,86..RHD198409-198708

CTR

sub85222-60050

main85220-22400iBU75,76,85..LHD198409-198708

CTR

sub85212-60030

main85220-22450iBU75,76,85..LHD198409-198708

RH

sub85212-60030

main85220-22470iBU75,76,85,86..RHD198409-198708

LH

sub85220-22481

85221BLADE, WINDSHIELD WIPER

main85221-12210iBU75,76,85..LHD198409-198708

LH

sub85214-12H90

main85221-12230iBU75,76,85,86..RHD198409-198708

RH

sub85214-12H90

main85221-22090iBU75,76,85..LHD198409-198708

CTR;RH

sub85214-12H90

main85221-89103iBU75,76,85,86..RHD198409-198708

CTR;LH

sub85214-12H90

85236BRACKET, WINDSHIELD WIPER

main85269-95400iBU6#,75,76,8#..RHD198409-198708

main85269-95401iBU60,61,62,65,7#,80,81,85..LHD198409-198708

9009900913

main90099-00913

9165640818

main91656-40818

13 parts on this diagram · 2 diagrams in section
