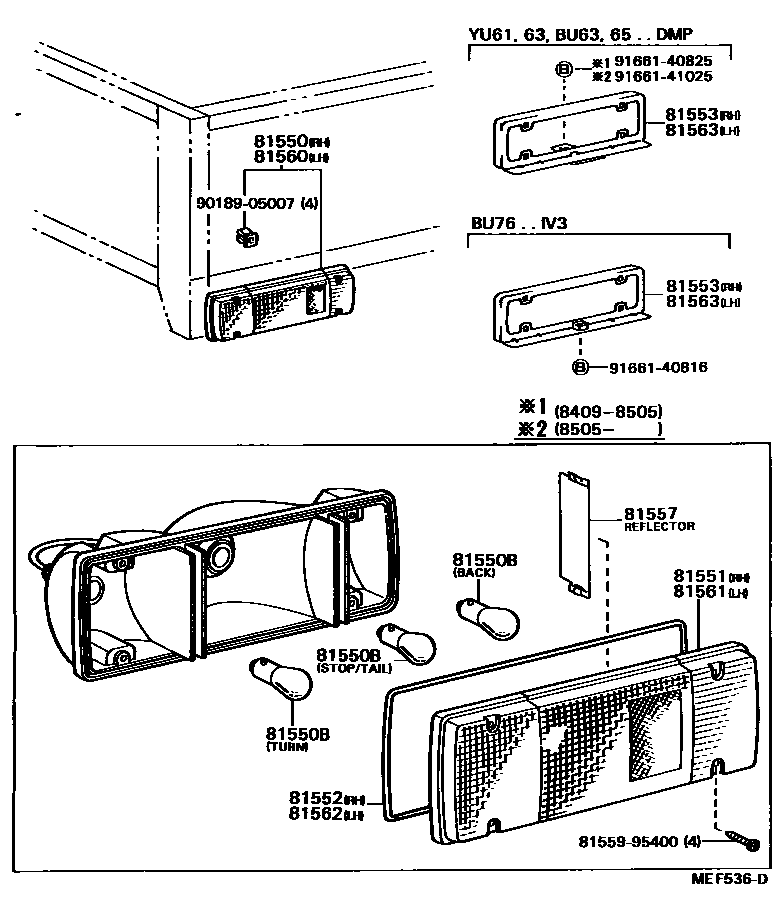

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39455iBU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN¥12,100198409-198708

CHINA OR ALGERIA SPEC

main81550-39465iBU65..CBU;BU60,61,62,63,75,76,8#..ARL,GEN,GHD¥12,300198409-198708

main81550-39475iBU81..SA¥12,100198604-198708

sub81550-95418¥14,600

main81550-39485iBU75,85..EUR¥15,900198409-198708

sub81550-95417¥14,600

main81550-92607iBU70¥12,100198409-198708

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iBU70¥270198409-198708

24V 21W,24V 21W(TURN,BACK)

main90981-16015iBU70¥350198409-198708

24V 21/5W,24V 21/5W(STOP/TAIL)

main90981-16021iBU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN¥350198409-198708

24V 25/10W,24V 25/10W(STP/TAL)CHIN.,ALGE.

main99132-11210iBU81..SA¥170198604-198708

12V 21W,12V 21W(TURN,BACK)

main99132-11230iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD198409-198708

12V 23W,12V 23W(TURN,BACK)

main99132-21210iBU65..CBU;BU60,61,62,63,7#,8#..ARL,GEN,GHD,SA¥190198409-198708

12V 21/5W,12V 21/5W(STOP/TAIL)

main99134-11250iBU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN¥230198409-198708

24V 25W,24V 25W(TURN,BACK)CHIN.,ALGE.

81551LENS, REAR COMBINATION LAMP, RH

main81551-92605iBU70¥2,920198409-198708

main81551-95400iBU6#,75,76,8#¥2,920198409-198708

sub81554-60441¥2,920

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95400iBU6#,7#,8#¥510198409-198708

81553BRACKET, REAR COMBINATION LAMP, NO.1 RH

main75103-95409iBU76..IV3¥1,970198501-198708

main75103-95410iBU63¥4,160198409-198708

81557REFLECTOR, REAR COMBINATION LAMP REFLEX

main81557-95403iBU75,85..EUR¥590198409-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81550-92607iBU70¥12,100198409-198708

main81560-39425iBU60..LHD..TW1;BU60,61,65,80,81,85..LHD..WT..GEN¥12,100198409-198708

CHINA OR ALGERIA SPEC

main81560-39435iBU65..CBU;BU60,61,62,63,75,76,8#..ARL,GEN,GHD¥12,300198409-198708

main81560-39445iBU81..SA¥12,100198604-198708

sub81560-95419¥14,600

main81560-39455iBU75,85..EUR¥15,900198409-198708

sub81560-95418¥14,600

81561LENS, REAR COMBINATION LAMP, LH

main81551-92605iBU70¥2,920198409-198708

main81561-95400iBU6#,75,76,8#¥2,920198409-198708

sub81564-60371¥2,920

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iBU6#,7#,8#¥510198409-198708

81563BRACKET, REAR COMBINATION LAMP, NO.1 LH

main75103-95409iBU76..IV3¥1,970198501-198708

main75103-95410iBU63,65¥4,160198409-198708

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400¥120

9018905007

main90189-05007¥160

9166140816

main91661-40816

9166140825

main91661-40825¥120

9166141025

main91661-41025¥180

15 parts on this diagram · 2 diagrams in section
