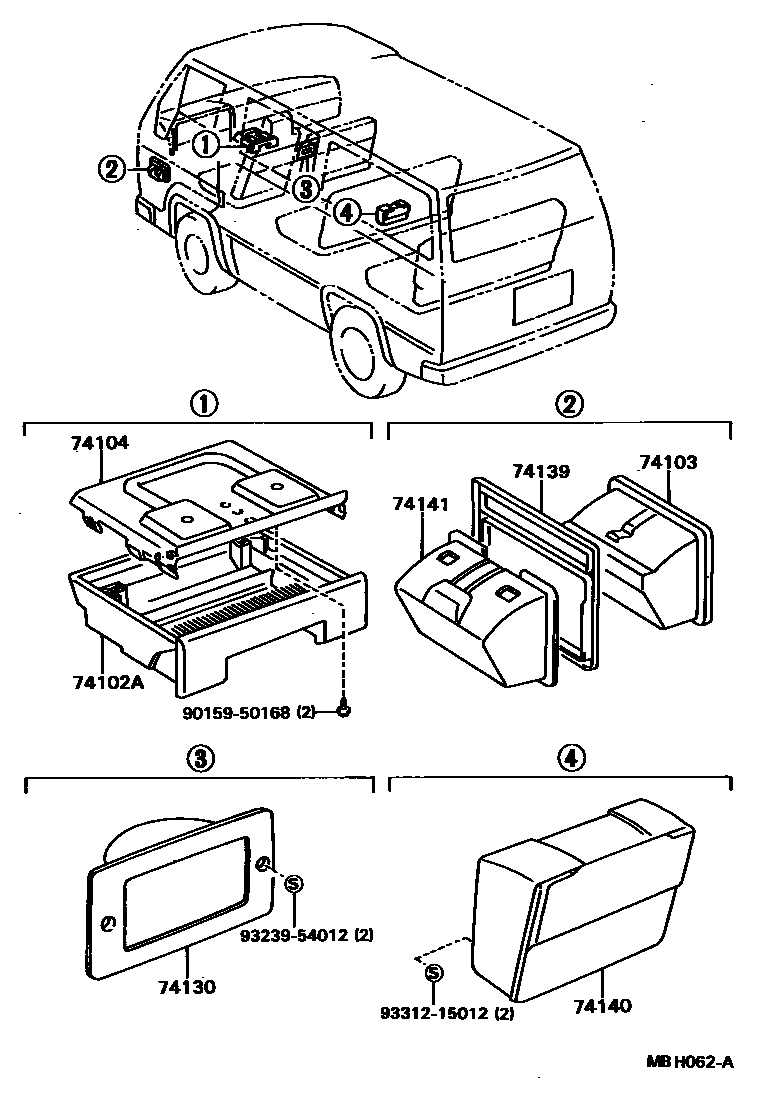

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-10020-01iBU6#,7#,8#198409-198706

BLACK,BLACK

sub74102-10020

sub74102-95409

main74102-95409-01iBU6#,7#,8#198706-198708

BLACK,BLACK

sub74102-95409

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74105-10010-13iBU75,76,85..(ARL,GEN)..(CBU,IV3)198409-198708

SHADOW GRAY,GRAY

sub74105-10010

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-95406iBU6#,7#,8#198409-198708

74130RECEPTACLE ASSY, REAR ASH

main74106-87201-01iBU60,85..TW1;BU70,86..BUS,TR198409-198708

BLACK,BLACK

sub74106-87201

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iBU75,76,85..(ARL,GEN)..(CBU,IV3)198409-198708

74140RECEPTACLE ASSY, ASH(FOR SEAT)

main74140-92601-01iBU70..BUS198409-198708

BLACK,BLACK

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iBU75,76,85..(ARL,GEN)..(CBU,IV3)198409-198708

9015950168

main90159-50168

9323954012

main93239-54012

9331215012

main93312-15012

10 parts on this diagram · 1 diagram in section
