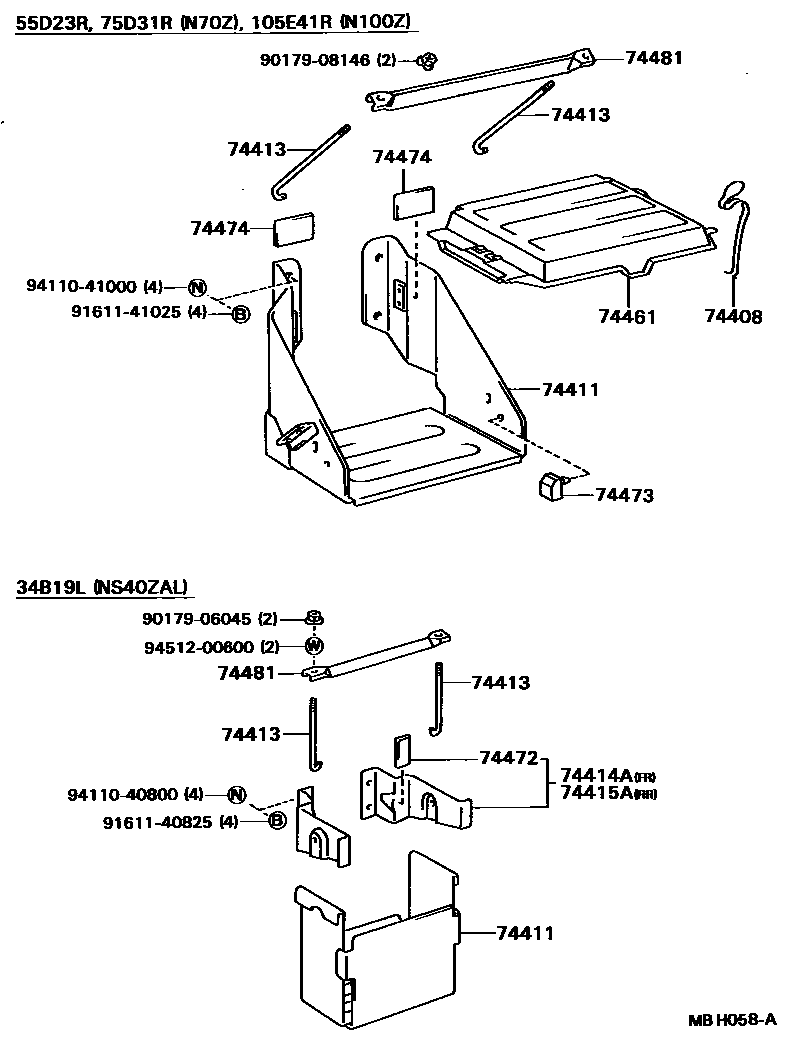

BATTERY CARRIER

74408CLAMP SUB-ASSY, BATTERY COVER

main74481-36030iBU65..IV3198508-198708

main74481-36050iBU65..CBU198409-198708

74411CARRIER, BATTERY

main74042-36010iBU60..LHD..TW1198409-198708

55D23R-MF

main74042-36020iBU85..GEN;BU6#,75,76,80,81,82..ARL,GEN,GHD198409-198708

75D31R(N70Z)

main74042-36030iBU70198409-198708

main74042-36041iBU60..TS;BU61,62,75,76,80,81,82,85..ARL,GEN,GHD,SA198409-198708

105E41R(N100Z)

main74042-36060iBU85..LHD..GEN198508-198708

CHINA SPEC,75D31R(N70Z)

main74042-36060iBU75,85..EUR198409-198708

75D31R(N70Z)

main74042-36080iBU65..IV3198508-198708

main74042-36090iBU63198508-198708

75D31R(N70Z)

74413BOLT, BATTERY CLAMP

main74451-36070iBU6#,7#,8#198409-198708

main74451-36090iBU75,85..EUR198409-198708

75D31R(N70Z)

main74451-36090iBU85..LHD..GEN198508-198708

CHINA SPEC,75D31R(N70Z)

74414ABRACKET, BATTERY, NO.1

74415ABRACKET, BATTERY, NO.2

74461COVER, BATTERY

main74461-36080iBU63198409-198708

main74461-36100iBU65..IV3198508-198708

74472PAD, BATTERY SIDE

74473SPACER, BATTERY

74474PAD, BATTERY

main74475-36040iBU6#,7#,8#198409-198708

74481CLAMP, BATTERY HOLD DOWN

main74404-25021iBU85..GEN;BU6#,75,76,80,81,82..ARL,GEN,GHD198409-198508

75D31R(N70Z)

main74453-25100iBU65..CBU198508-198708

75D31R(N70Z)

main74453-36050iBU61,62,76,80,81,82198508-198708

105E41R(N100Z)

sub74453-36060

main74453-36060iBU60..TS;BU61,62,75,76,8#..ARL,GEN,GHD198409-198508

105E41R(N100Z)

main74453-36070iBU75,85..EUR198409-198708

55D23R-MF

sub74453-37130

main74453-36070iBU65..IV3198508-198708

CHINA SPEC,75D31R(N70Z)

sub74453-37130

main74453-36080iBU70198409-198708

9017906045

main90179-06045

9017908146

main90179-08146

9161140825

main91611-40825

9161141025

main91611-41025

9411040800

main94110-40800

9411041000

main94110-41000

9451200600

main94512-00600

17 parts on this diagram · 1 diagram in section
