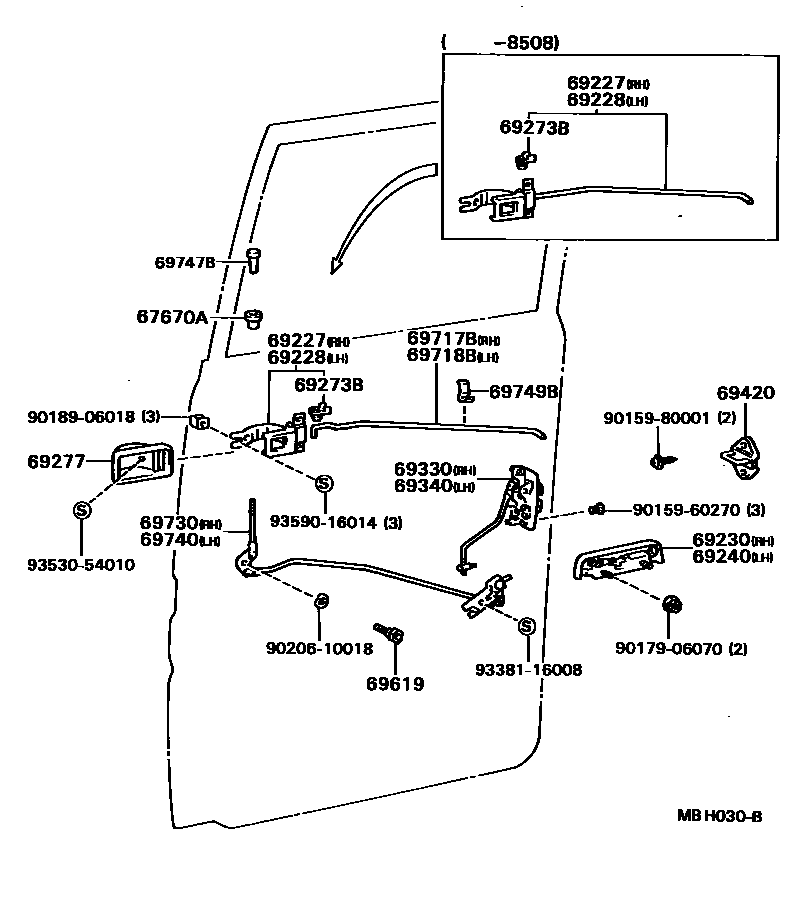

REAR DOOR LOCK & HANDLE
67670AGROMMET(FOR REAR DOOR PANEL LOCK BUTTON)
69227HANDLE, REAR DOOR INSIDE, RH
SHADOW GRAY,SHADOW GRAY
SHADOW GRAY,SHADOW GRAY
69228HANDLE, REAR DOOR INSIDE, LH
SHADOW GRAY,SHADOW GRAY
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
RH
LH
69277BEZEL, REAR DOOR INSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69619BOLT, REAR DOOR LOCKING CONTROL
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
69749BCLAMP, REAR DOOR LOCK LINK
9015960270
main90159-60270
9015980001
main90159-80001
9017906070
main90179-06070
9018906018
main90189-06018
9020610018
main90206-10018
9338116008
main93381-16008
9353054010
main93530-54010
9359016014
main93590-16014
25 parts on this diagram · 2 diagrams in section
