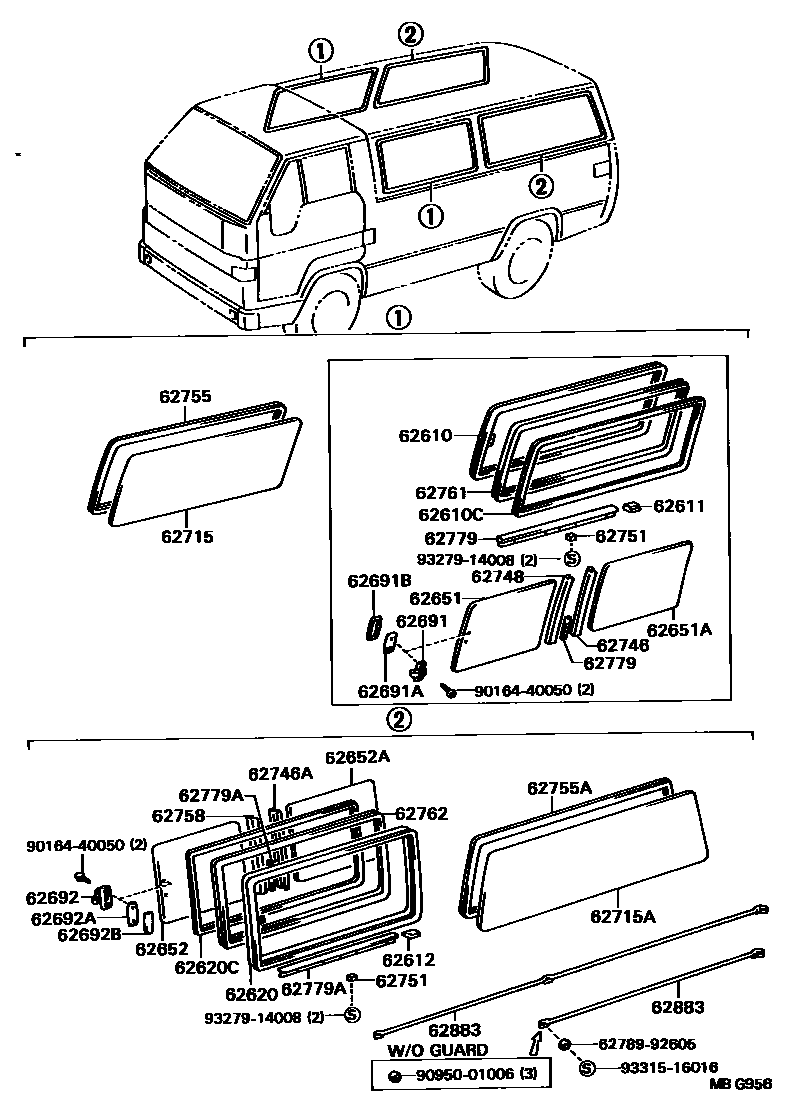

SIDE WINDOW
62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)
RH
LH
62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)
62611SPACER, SIDE WINDOW SUPPORT, NO.1
62612SPACER, SIDE WINDOW SUPPORT, NO.2
62620SASH ASSY, SIDE WINDOW OUTER, NO.2 (FOR SLIDE TYPE)
RH
LH
62620CCLIP, SIDE WINDOW OUTER SASH, NO.2 (FOR SLIDE TYPE)
62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)
62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)
62652GLASS, SIDE WINDOW, NO.2, FRONT (FOR SLIDE TYPE)
62652AGLASS, SIDE WINDOW, NO.2, REAR (FOR SLIDE TYPE)
*TEM,T=4.0,LH,*TEM,T=4.0
62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)
62691APACKING, SIDE WINDOW LOCK, NO.1
62691BRETAINER, SIDE WINDOW LOCK, NO.1
sub62793-95704
62692LOCK, SIDE WINDOW, NO.2 GLASS (FOR SLIDE TYPE)
62692APACKING, SIDE WINDOW LOCK, NO.2
62692BRETAINER, SIDE WINDOW LOCK, NO.2
sub62793-95704
62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)
62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)
62746WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1
62746AWEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.2
62748CHANNEL, SIDE WINDOW GLASS
62751STOP, SIDE WINDOW FIX GLASS
FR
RR
62755WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)
LH
RH
62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)
62758CHANNEL, SIDE WINDOW GLASS, NO.1
62761RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE)
RH
LH
62762RUN, SIDE WINDOW, NO.2(FOR SLIDE TYPE)
RH
LH
62779PACKING, SIDE WINDOW GLASS, NO.1
LWR
CTR
62779ASPACER, SIDE WINDOW FRAME
LWR
CTR
62883GUARD ASSY, SIDE WINDOW
FR
RR RH
RR LH
6278992605SASH, QUARTER WINDOW, REAR LH
main62789-92605
9016440050
main90164-40050
9095001006
main90950-01006
9327914008
main93279-14008
9331516016
main93315-16016
35 parts on this diagram · 1 diagram in section
