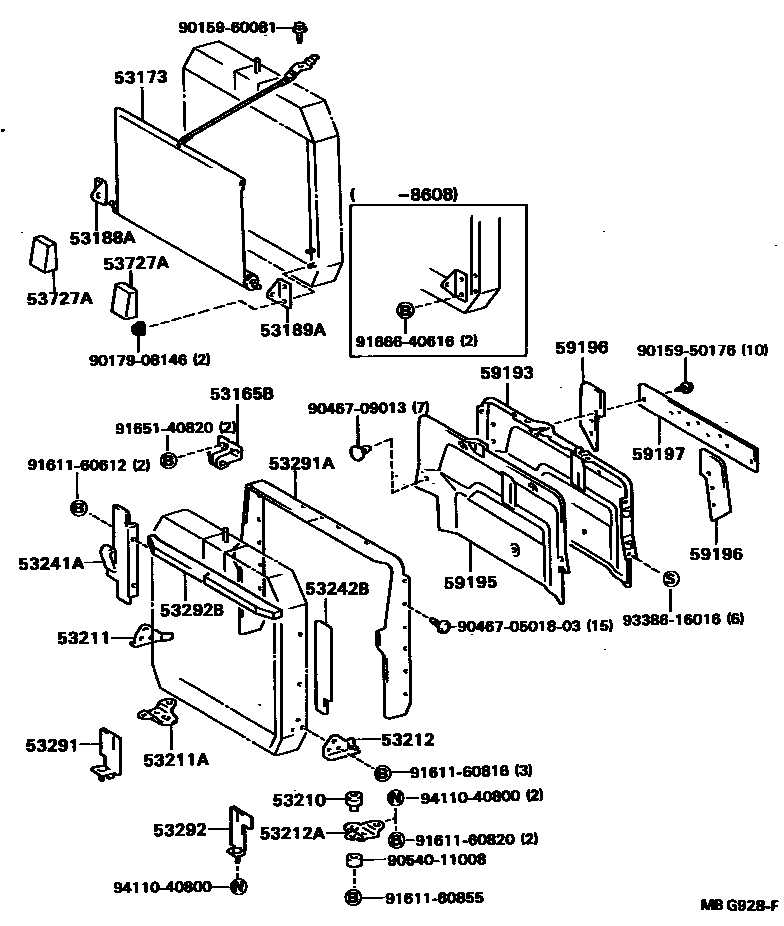

RADIATOR SUPPORT & WIND GUIDE

53165BSUPPORT, RADIATOR, CENTER

main53165-36011iBU75,76,85,86198409-198708

main53165-36040iBU6#,70,80,81,82198409-198708

53173SHUTTER SUB-ASSY, RADIATOR WIND

main53180-95402iBU75,85..EUR198409-198708

sub53180-95405

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-95405iBU75,85..EUR198409-198708

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-95403iBU75,85..EUR198409-198708

53210SUPPORT ASSY, RADIATOR

main53210-36010iBU6#,7#,8#198409-198708

53211SUPPORT, RADIATOR, RH

main53211-36020iBU6#,7#,8#198409-198708

53211ABRACKET, RADIATOR SUPPORT, RH

main51411-36090iBU60,61,62,70,80,81,82198409-198708

main51411-36100iBU75,76,85,86198409-198708

53212SUPPORT, RADIATOR, LH

main53212-36020iBU6#,7#,8#198409-198708

53212ABRACKET, RADIATOR SUPPORT, LH

main51412-36090iBU60,61,62,70,80,81,82198409-198708

main51412-36100iBU75,76,85,86198409-198708

53241AGUIDE, SIDE WIND, RH

main16593-56040iBU60,63,70,80198409-198708

main16593-58040iBU75198409-198708

sub16593-58041

main16593-58041iBU85..EUR198601-198708

sub16593-58060

53242BGUIDE, SIDE WIND, LH

main16595-56020iBU60,63,70,80198409-198708

main16595-58030iBU75198409-198708

sub16595-58040

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-36030iBU60,70,80198409-198708

main53291-36040iBU75198409-198708

53291ASHIELD, RADIATOR TO CAB FLOOR PANEL

main16593-56030iBU6#,70,80,81,82198409-198708

main16593-58030iBU75,76,85,86198409-198708

sub16593-58050

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-36060iBU60,70,80198409-198708

sub53292-36061

main53292-36070iBU75198409-198708

53292BGUIDE, RADIATOR AIR, NO.2

main16594-56020iBU60,63,70,80198409-198708

main16594-58030iBU85..EUR198409-198708

53727ASHUTTER, HOT AIR SIDE

main53727-95401iBU62..ARL198409-198708

main53727-95402iBU75198409-198708

59193GUARD, NOISE SHUTTER

main59193-95402iBU85..EUR198409-198708

59195INSULATOR, NOISE SHUTTER

main59195-95402iBU85..EUR198409-198708

59196SEAL, NOISE SHUTTER, UPPER NO.1

59197SEAL, NOISE SHUTTER, UPPER NO.2

9015950176

main90159-50176

9015960081

main90159-60081

9017908146

main90179-08146

904670501803

main90467-0501803

9046709013

main90467-09013

9054011008

main90540-11008

9161160612

main91611-60612

9161160816

main91611-60816

9161160820

main91611-60820

9161160855

main91611-60855

9165140820

main91651-40820

9166640616

main91666-40616

9338616016

main93386-16016

9411040800

main94110-40800

34 parts on this diagram · 1 diagram in section
