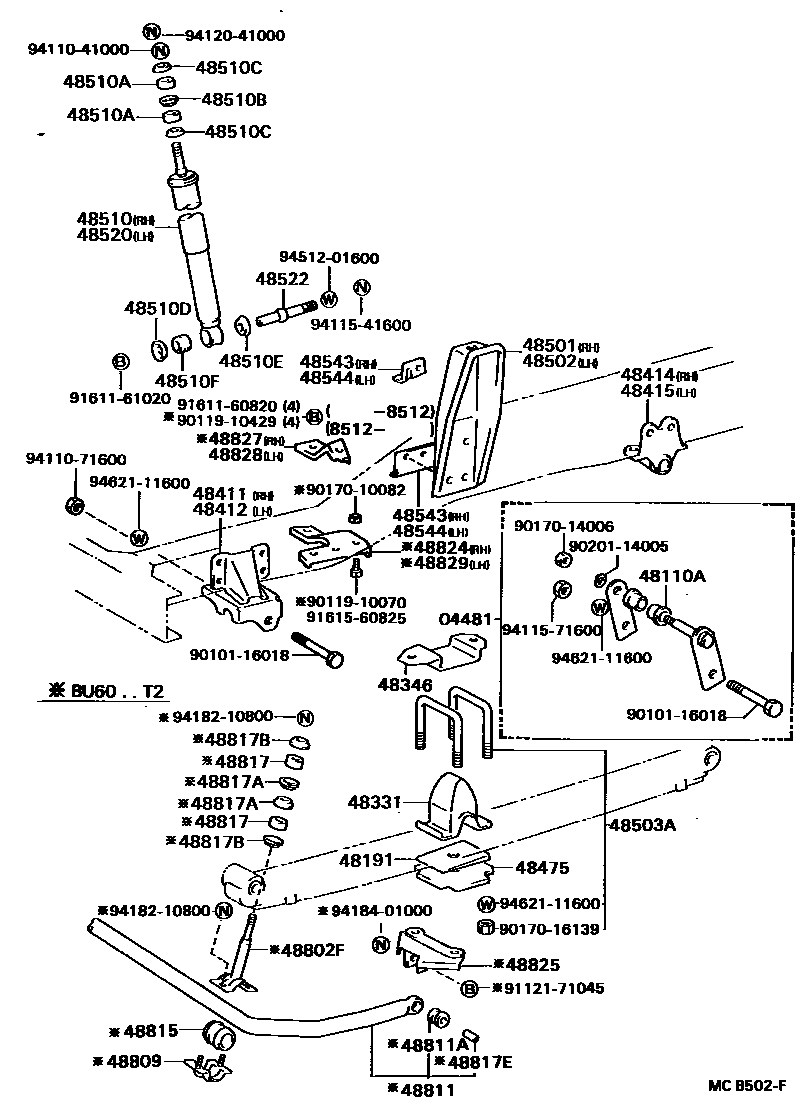

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04481SHACKLE KIT, FRONT SPRING

main04481-36060iBU6#,70,80,81,82198409-198708

48110SPRING ASSY, FRONT, RH

main48110-36560iBU60..ARL..CBU198409-198708

3-LEAF

main48110-36590iBU60,61..RHD..TS..WT..GEN198409-198708

5-LEAF,NO.1 LEAF T=10

main48110-36590iBU81..SA198604-198708

5-LEAF

main48110-36600iBU60,61..RHD..GEN..(CBU,IV3)198409-198708

5-LEAF SPRING,NO.1 LEAF T=9

main48110-36610iBU62..ST198602-198708

main48110-36610iBU60,61,70..LHD198409-198708

NO.1 LEAF T=9

main48110-36620iBU61..ST198501-198708

7-LEAF SPRING

main48110-36680iBU63,65,80,81..RHD..(ARL,GEN)198409-198708

5-LEAF

main48110-36690iBU80,81..LHD198409-198708

5-LEAF

main48110-36720iBU80,81,82..GHD198409-198708

5-LEAF

main48110-36730iBU62,65..GEN198409-198708

5-LEAF

main48110-36740iBU60,61..LHD..WT198409-198708

NO.1 LEAF T=10

main48110-36800iBU75,76,86..RHD198409-198708

8-LEAF,9-LEAF SPRING

main48110-36810iBU75,76..LHD198409-198708

8-LEAF,9-LEAF SPRING

main48110-36820iBU75,76,85,86..RHD..GEN..(CBU,IV3)198409-198708

8-LEAF,8-LEAF SPRING,NO.7 LEAF T=12

main48110-36830iBU75,76..LHD;BU85..ARL,EUR;BU85..LHD..GEN198409-198708

8-LEAF,8-LEAF SPRING,NO.7 LEAF T=12

main48110-36840iBU85..RHD..GEN..(CBU,IV3)198409-198708

8-LEAF,NO.7 LEAF T=14

main48110-36850iBU85..LHD..GEN198409-198708

8-LEAF,NO.7 LEAF T=14

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18005iBU6#,70,80,81,82198409-198708

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-35020iBU75,76,8#198409-198708

main48191-36100iBU63,65..CBU198409-198708

main48192-35010iBU81..SA198409-198708

48331BUMPER, FRONT SPRING, NO.1

main48304-36080iBU6#,7#,8#198409-198706

main48304-36150iBU6#,7#,8#198706-198708

48346STOPPER, BUMPER, FRONT

main48346-36040iBU60,61,62,70,80,81,82198409-198708

main48346-36050iBU63,65198409-198708

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-36082iBU75,76,85198409-198708

main48411-36100iBU60,61,62,70,80,81,82198409-198708

main48411-36110iBU63,65198409-198708

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48412-36082iBU75,76,85198409-198708

main48412-36100iBU60,61,62,70,80,81,82198409-198708

main48412-36110iBU63,65198409-198708

48414BRACKET, FRONT SPRING(FOR REAR RH)

main48412-36040iBU63,65198409-198708

main48413-36030iBU60,61,62,70,80,81,82198409-198708

main48433-36050iBU75,76,85198409-198708

48415BRACKET, FRONT SPRING(FOR REAR LH)

main48413-36030iBU60,61,62,70,80,81,82198409-198708

main48413-36040iBU63,65198409-198708

main48434-36050iBU75,76,85198409-198708

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iBU6#,7#,8#198409-198708

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48501-36030iBU75,76,85198409-198708

main48512-25060iBU6#,70,80,81,82198409-198612

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48502-36040iBU75,76,85198409-198708

main48512-25060iBU6#,70,80,81,82198409-198612

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90118-16213iBU60,61,63,70,80,81..(ARL,GEN,SA)..(CBU,IV3)198409-198708

L=95,L=95

sub90117-16020

main90118-16214iBU6#,70,80,81198409-198708

L=105,L=105

sub90117-16093

main90118-16215iBU85..GEN198409-198708

L=125,L=125

sub90118-16217

main90118-16216iBU61..ST;BU80,81,82..GHD198409-198708

L=115,L=115

sub90117-16047

main90118-16239iBU75,76,85,86198409-198708

L=120,L=120

sub90117-16017

sub90170-16139

sub94621-11600

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-36130iBU75,76198409-198708

sub48511-39485

main48511-36150iBU60,61,63,70,80,81..(ARL,GEN,SA)..(CBU,IV3)198409-198708

sub48511-39505

main48511-36160iBU62,65..GEN198409-198708

MARK 48511-36160

sub48511-39515

main48511-39495iBU85,86198409-198708

MARK 48511-36090

sub48511-39496

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iBU6#,7#,8#198409-198708

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iBU6#,7#,8#198409-198708

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iBU6#,7#,8#198409-198708

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03007iBU6#,7#,8#198409-198708

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU6#,7#,8#198409-198708

48510FCUSHION, SHOCK ABSORBER

main90385-16004iBU6#,7#,8#198409-198708

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-36130iBU75,76198409-198708

sub48511-39485

main48511-36150iBU62..ST;BU62,65..ARL198409-198708

sub48511-39505

main48511-36160iBU62,65..GEN198409-198708

MARK 48511-36160

sub48511-39515

main48511-39495iBU85,86198409-198708

MARK 48511-36090

sub48511-39496

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iBU6#,7#,8#198409-198708

48543REINFORCEMENT, FRONT ABSORBER BRACKET, RH

main48543-36010iBU63,65198409-198708

UPR

main48543-36020iBU65198706-198708

LWR

48544REINFORCEMENT, FRONT ABSORBER BRACKET, LH

main48544-36010iBU63,65198409-198708

UPR

main48544-36020iBU65198706-198708

LWR

48802FLINK SUB-ASSY, FRONT STABILIZER

main48802-36020iBU60..TB198409-198511

sub48802-36030

main48802-36030iBU60..TB198511-198708

48809BRACKET SUB-ASSY, STABILIZER

main48809-36010iBU60..TB198409-198708

sub48809-36011

sub48802-36032

sub94184-61001

48811BAR, STABILIZER, FRONT

main48804-36010iBU60..TB198409-198708

sub48811-36020

sub90385-13004

sub90560-10044

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-13004iBU60..TB198409-198708

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-36020iBU60..TB198409-198708

48817CUSHION, FRONT STABILIZER

main48817-30010iBU60..TB198409-198512

main48817-36010iBU60..TB198512-198708

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02015iBU60..TB198409-198708

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02032iBU60..TB198409-198708

48817ESPACER(FOR STABILIZER BAR)

main90560-10044iBU60..TB198409-198708

48824BRACKET, STABILIZER, FRONT

main48824-36030iBU60..TB198409-198512

main48824-36031iBU60..TB198512-198708

sub48824-36032

48825BRACKET, STABILIZER, NO.2

main48825-36010iBU60..TB198409-198708

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-36010iBU60..TB198409-198512

main48827-36011iBU60..TB198512-198708

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48828-36010iBU60..TB198409-198512

main48828-36011iBU60..TB198512-198708

48829BRACKET, STABILIZER

main48829-36020iBU60..TB198409-198512

main48829-36021iBU60..TB198512-198708

sub48829-36022

9010116018

main90101-16018

9011910070

main90119-10070

9011910429

main90119-10429

9017010082

main90170-10082

9017014006

main90170-14006

9017016139

main90170-16139

9020114005

main90201-14005

9112171045

main91121-71045

9161160820

main91611-60820

9161161020

main91611-61020

9161560825

main91615-60825

9411041000

main94110-41000

9411071600

main94110-71600

9411541600

main94115-41600

9411571600

main94115-71600

9412041000

main94120-41000

9418210800

main94182-10800

9418401000

main94184-01000

9451201600

main94512-01600

9462111600

main94621-11600

59 parts on this diagram · 6 diagrams in section
