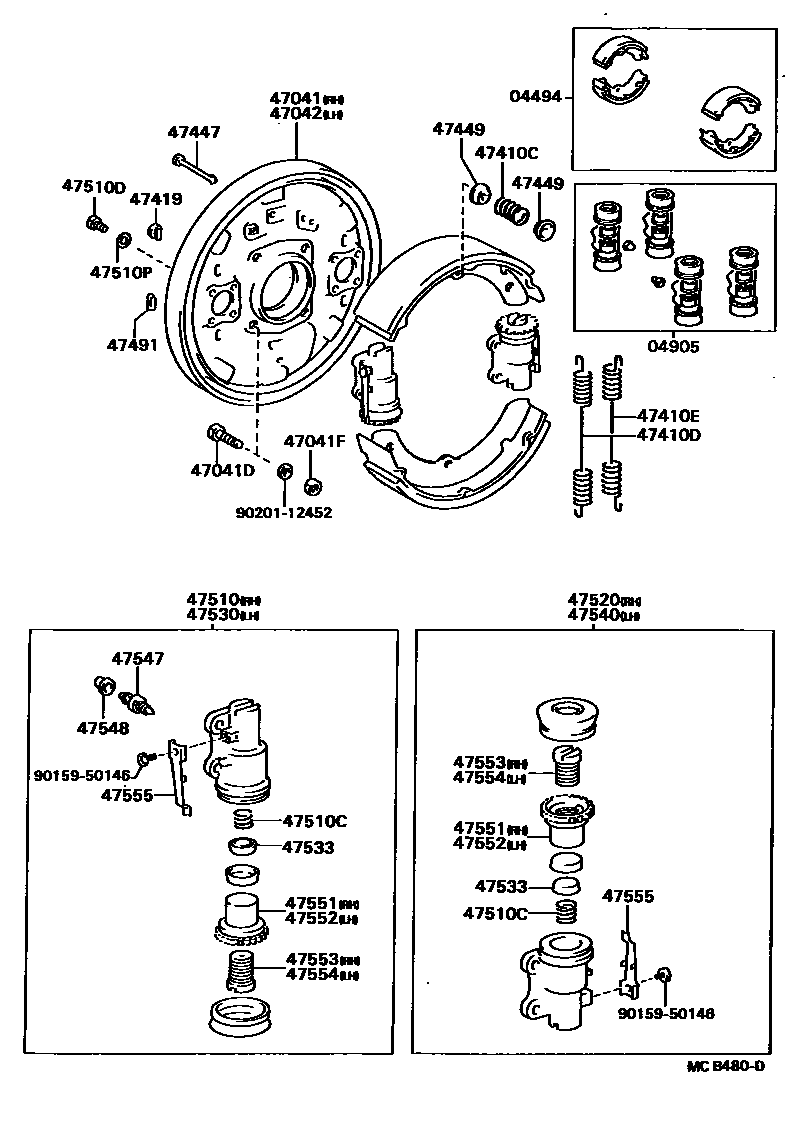

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04494SHOE KIT, FRONT BRAKE

main04494-36080iBU60,80..T2;BU60,61,62,70..ST198409-198708

sub04494-36160

main04494-36100iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

sub04494-36140

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36070iBU60,80..T2198409-198708

main04905-36080iBU63,65198409-198708

main04905-36100iBU62..ARL198510-198708

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36110iBU60,80..T2;BU60,61,62,70..ST198409-198708

sub47041-36111

sub47492-28010

main47041-36130iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

sub47041-36131

sub47492-28010

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12113iBU6#,7#,8#198409-198708

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-71200iBU6#,7#,8#198409-198708

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36110iBU60,80..T2;BU60,61,62,70..ST198409-198708

sub47042-36111

sub47492-28010

main47042-36130iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

sub47042-36131

sub47492-28010

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012iBU6#,7#,8#198409-198708

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29006iBU60,80..T2;BU60,61,62,70..ST198409-198708

main90507-29006iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29006iBU60,80..T2;BU60,61,62,70..ST198409-198708

main90507-29006iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011iBU6#,7#,8#..5F198409-198708

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-35020iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47447-36030iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iBU6#,7#,8#198409-198708

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iBU6#,7#,8#198409-198708

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36090iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47510-36100iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

main47510-36120iBU62..ARL198510-198708

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122iBU6#,7#,8#198409-198708

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-08081iBU60,80..T2;BU60,61,62,70..ST198409-198708

main90101-10127iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-08002iBU60,80..T2;BU60,61,62,70..ST198409-198708

main90201-10287iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36090iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47520-36100iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

main47520-36120iBU62..ARL198510-198708

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36090iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47530-36100iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

main47530-36120iBU62..ARL198510-198708

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-30011iBU6#,7#,8#198409-198708

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36090iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47540-36100iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

main47540-36120iBU62..ARL198510-198708

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iBU6#,7#,8#198409-198708

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iBU6#,7#,8#198409-198708

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47506-36010iBU62..ARL198510-198708

main47551-36120iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47551-36130iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47507-36010iBU62..ARL198510-198708

main47552-36120iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47552-36130iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36050iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47553-36060iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

main47553-36070iBU62..ARL198510-198708

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36050iBU60,80..T2;BU60,61,62,70..ST198409-198708

main47554-36060iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..5F..WT198409-198708

main47554-36070iBU62..ARL198510-198708

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-36040iBU6#,7#,8#..5F198409-198708

T=0.8

9015950146

main90159-50146

9020112452

main90201-12452

30 parts on this diagram · 3 diagrams in section
