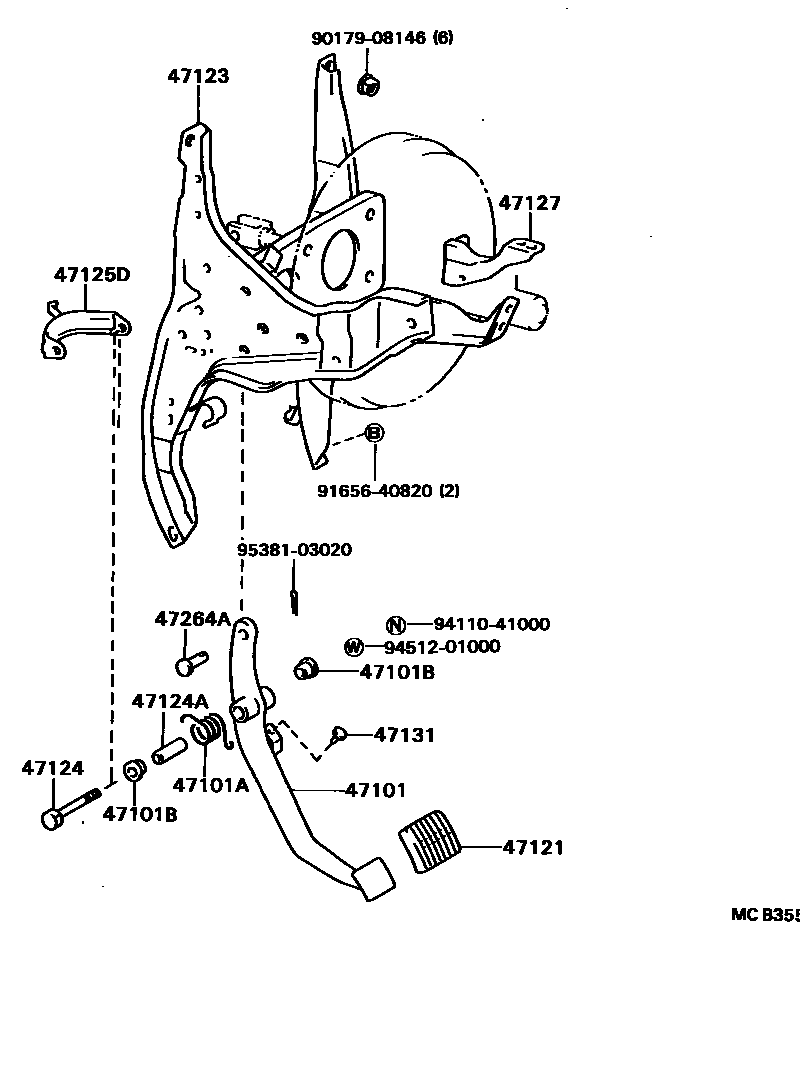

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-36090iBU75,76,85,86..RHD198409-198708

main47101-36100iBU75,76,85..LHD198409-198708

sub47101-36101

main47101-36110iBU6#,80,81,82..RHD198409-198708

main47101-36120iBU60,61,62,65,70,80,81..LHD198409-198708

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iBU6#,7#,8#198409-198708

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBU6#,7#,8#198409-198708

47121PAD, BRAKE PEDAL

main31321-36010iBU6#,7#,8#198409-198708

47123BRACKET, BRAKE PEDAL

main55150-95400iBU60,61,63,65,75,76,8#..RHD198409-198708

main55150-95401iBU60,61,62,65,7#,80,81,85..LHD198409-198708

47124SHAFT, BRAKE PEDAL

main91121-51070iBU6#,7#,8#198409-198708

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBU6#,7#,8#198409-198708

47125DSTAY, BRAKE PEDAL BRACKET

main55159-95401iBU6#,7#,8#198409-198708

47127SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-95401iBU85..GEN;BU85..TW1;BU60,61,62,63,7#,80,81,82,86198409-198708

main55175-95402iBU85..T3..(ARL,EUR)198409-198708

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBU6#,7#,8#198409-198708

47264APIN(FOR PUSH ROD)

main90240-10015iBU6#,7#,8#198409-198708

9017908146

main90179-08146

9165640820

main91656-40820

9411041000

main94110-41000

9451201000

main94512-01000

9538103020

main95381-03020

16 parts on this diagram · 1 diagram in section
