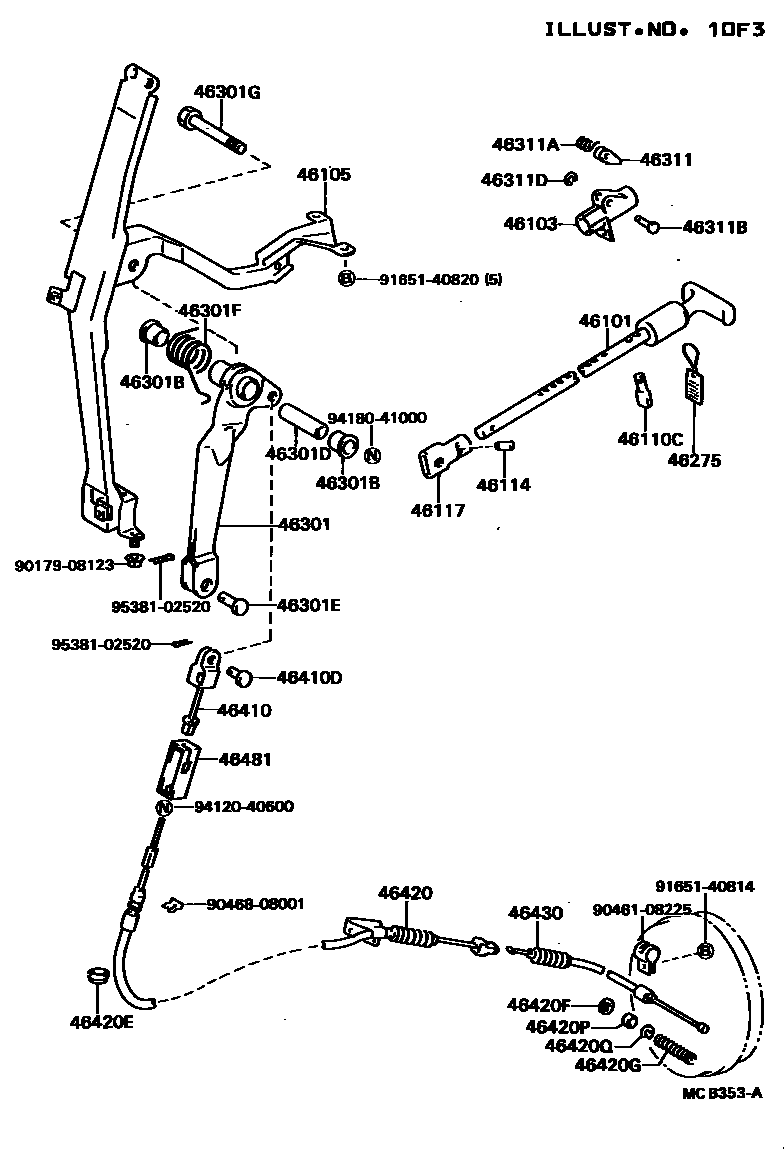

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-36180-01iBU6#,75,76,8#..RHD198409-198708

BLACK

sub46101-36180

main46101-36190-01iBU60,61,62,65,7#,80,81,85..LHD198409-198708

BLACK

sub46101-36190

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-36140iBU6#,75,76,8#..RHD198409-198708

main46103-36150iBU60,61,62,65,7#,80,81,85..LHD198409-198708

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-36020iBU6#,75,76,8#..RHD198409-198708

sub46105-25010

main46105-36030iBU60,61,62,65,70,80,81..LHD198409-198708

sub46105-25020

main46105-36040iBU75,76,85..LHD198409-198708

sub46105-36041

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main46114-20010iBU6#,7#,8#198409-198708

46114PIN, PARKING BRAKE PLUNGER

main46114-30010iBU6#,7#,8#198409-198708

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iBU6#,75,76,8#..RHD198409-198708

main46117-30020iBU60,61,62,65,7#,80,81,85..LHD198409-198708

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iBU6#,7#,8#198409-198708

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36070iBU6#,7#,8#198409-198708

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-13007iBU6#,7#,8#198409-198708

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-10004iBU6#,7#,8#198409-198708

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08010iBU6#,7#,8#198409-198708

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-35024iBU6#,7#,8#198409-198708

46301GBOLT(FOR INTERMEDIATE LEVER)

main91111-71070iBU6#,7#,8#198409-198708

46311PAWL, PARKING BRAKE

main46311-26010iBU6#,7#,8#198409-198708

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iBU6#,7#,8#198409-198708

46311BPIN, PARKING BRAKE PAWL PIVOT

main90249-05010iBU6#,7#,8#198409-198708

46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)

main90213-03007iBU6#,7#,8#198409-198708

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36121iBU6#,7#,8#198409-198708

sub46410-36350

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08094iBU6#,7#,8#198409-198708

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-36240iBU60,61,80,81,82..RHD198409-198708

main46420-36260iBU60,61,62,70,80,81..LHD198409-198708

main46420-36270iBU63,65..CBU198409-198708

main46420-36280iBU65..IV3198508-198610

sub46420-36281

main46420-36281iBU65..IV3198610-198708

main46420-36290iBU75,76,85,86..RHD198409-198708

main46420-36300iBU75,76,85..LHD198409-198708

sub46420-36301

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-25026iBU6#,7#,8#198409-198708

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iBU6#,7#,8#198409-198708

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iBU75,81,85..ARL,EUR,SA198409-198708

main90501-14021iBU65..CBU;BU60,61,62,63,7#,80,81,82,86..ARL,GEN,GHD198409-198708

46420PSPACER, PARKING BRAKE

main90560-08002iBU6#,7#,8#198409-198708

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBU6#,7#,8#198409-198708

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-36010iBU60,61,62,70,80,81,82..5F..(ARL,GEN,GHD)198409-198708

sub46430-36011

main46430-36020iBU63,65..CBU198409-198708

sub46430-36021

main46430-36030iBU75,76,86..GEN198409-198708

sub46430-36031

main46430-36050iBU62..ARL198510-198708

sub46430-36051

main46430-36080iBU81..SA198604-198708

sub46430-36081

main46430-36090iBU85;BU75..EUR198409-198708

sub46430-36091

main46430-36130iBU65..IV3198508-198708

sub46430-36131

46481CONNECTOR, PARKING CABLE

main46481-36012iBU6#,7#,8#198409-198708

9017908123

main90179-08123

9046108225

main90461-08225

9046808001

main90468-08001

9165140814

main91651-40814

9165140820

main91651-40820

9412040600

main94120-40600

9418041000

main94180-41000

9538102520

main95381-02520

35 parts on this diagram · 5 diagrams in section
