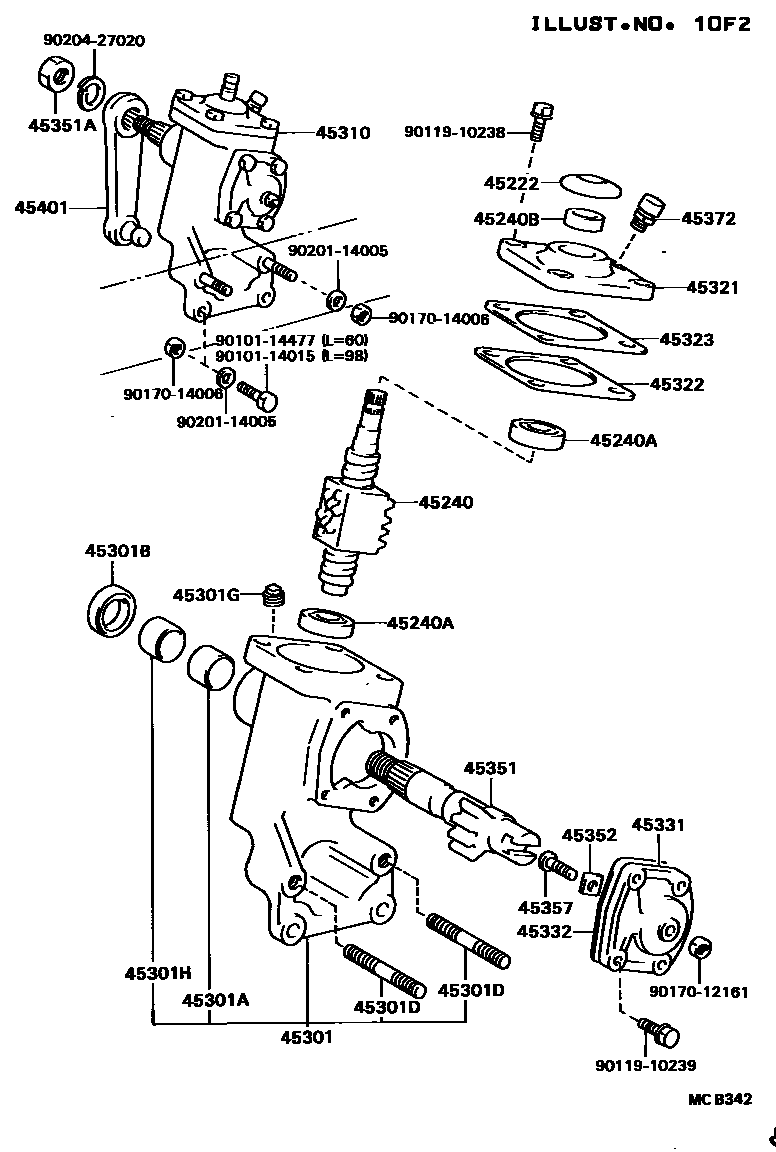

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

45222COVER, STEERING GEAR DUST

main45222-26010iBU6#,7#,8#198409-198708

45240WORM ASSY, STEERING

main45240-36080iBU75,76,85,86..RHD198409-198708

main45240-36130iBU75,76,85..LHD198409-198708

main45240-36140iBU6#,80,81,82..RHD198409-198708

main45240-36150iBU60,61,62,65,70,80,81..LHD198409-198708

45240ABEARING(FOR STEERING WORM)

main90363-20024iBU6#,70,80,81,82198409-198708

main90363-25046iBU75,76,85,86198409-198708

45240BSEAL, OIL(FOR STEERING WORM)

main90311-19001iBU6#,70,80,81,82198409-198708

main90311-22103iBU75,76,85,86198409-198708

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-36110iBU75,76,85,86..RHD198409-198708

main45301-36160iBU75,76,85..LHD198409-198708

main45301-36170iBU60,61,62,80,81,82..RHD198409-198708

sub45301-37030

main45301-36180iBU60,61,62,70,80,81..LHD198409-198708

main45301-36190iBU63,65..CBU198409-198708

sub45301-37040

main45301-36200iBU65..IV3198508-198708

45301ABUSH OR BEARING, SECTOR SHAFT, NO.1

main90999-73060iBU6#,7#,8#198409-198708

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90311-36104iBU6#,7#,8#198409-198708

45301DBOLT, STUD(FOR STEERING GEAR HOUSING)

main90116-14004iBU60,61,62,7#,8#198409-198708

main90116-14008iBU63,65198409-198708

L=96

main90116-14009iBU63,65198409-198708

L=73

45301GPLUG, STEERING GEAR BOX OIL

main90345-53003iBU6#,70,80,81,82198409-198708

45301HBUSH OR BEARING, SECTOR SHAFT, NO.2

main90999-73060iBU6#,7#,8#198409-198708

45310HOUSING ASSY, STEERING GEAR

main45310-36130iBU75,76,85,86..RHD198409-198708

main45310-36180iBU75,76,85..LHD198409-198708

main45310-36190iBU60,61,62,80,81,82..RHD198409-198708

sub45310-36191

main45310-36200iBU60,61,62,70,80,81..LHD198409-198708

sub45310-36201

main45310-36210iBU63,65..CBU198409-198708

sub45310-36211

main45310-36220iBU65..IV3198508-198708

sub45310-36221

45321COVER, GEAR HOUSING END

main45321-36030iBU75,76,85,86198409-198708

main45321-36050iBU6#,70,80,81,82198409-198708

45322GASKET, GEAR HOUSING END COVER

main45322-37010iBU6#,7#,8#198409-198708

45323SHIM, GEAR HOUSING END COVER

main45323-37010iBU6#,7#,8#198409-198708

T=0.05,T=0.05

main45323-37020iBU6#,7#,8#198409-198708

T=0.06,T=0.06

main45323-37030iBU6#,7#,8#198409-198708

T=0.07,T=0.07

main45323-37040iBU6#,7#,8#198409-198708

T=0.10,T=0.1

main45323-37050iBU6#,7#,8#198409-198708

T=0.20,T=0.2

main45323-37060iBU6#,7#,8#198409-198708

T=0.50,T=0.5

45331COVER, SECTOR SHAFT END

main45304-36030iBU75,76,85,86198409-198708

main45304-36050iBU6#,70,80,81,82198409-198708

45332GASKET, SECTOR SHAFT END COVER

main45332-36020iBU75,76,85,86198409-198708

main45332-37010iBU6#,70,80,81,82198409-198708

45351SHAFT, STEERING SECTOR

main45351-36030iBU6#,70,80,81,82198409-198708

sub45351-36031

main45351-36040iBU75,76,85,86198409-198708

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-27033iBU6#,7#,8#198409-198708

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iBU6#,7#,8#198409-198708

T=1.95,T=1.95

main45353-37010iBU6#,7#,8#198409-198708

T=2.00,T=2.00

main45354-37010iBU6#,7#,8#198409-198708

T=2.05,T=2.05

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iBU6#,7#,8#198409-198708

sub45357-37020

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iBU75,76,85,86198409-198708

main90930-03095iBU6#,70,80,81,82198409-198708

45401ARM SUB-ASSY, PITMAN

main45401-36280iBU75,76,85,86..RHD198409-198708

main45401-36290iBU75,76,85..LHD198409-198708

main45401-36350iBU6#,80,81,82..RHD198409-198708

main45401-36360iBU60,61,62,65,70,80,81..LHD198409-198708

9010114015

main90101-14015

9010114477

main90101-14477

9011910238

main90119-10238

9011910239

main90119-10239

9017012161

main90170-12161

9017014006

main90170-14006

9020114005

main90201-14005

9020427020

main90204-27020

30 parts on this diagram · 5 diagrams in section
