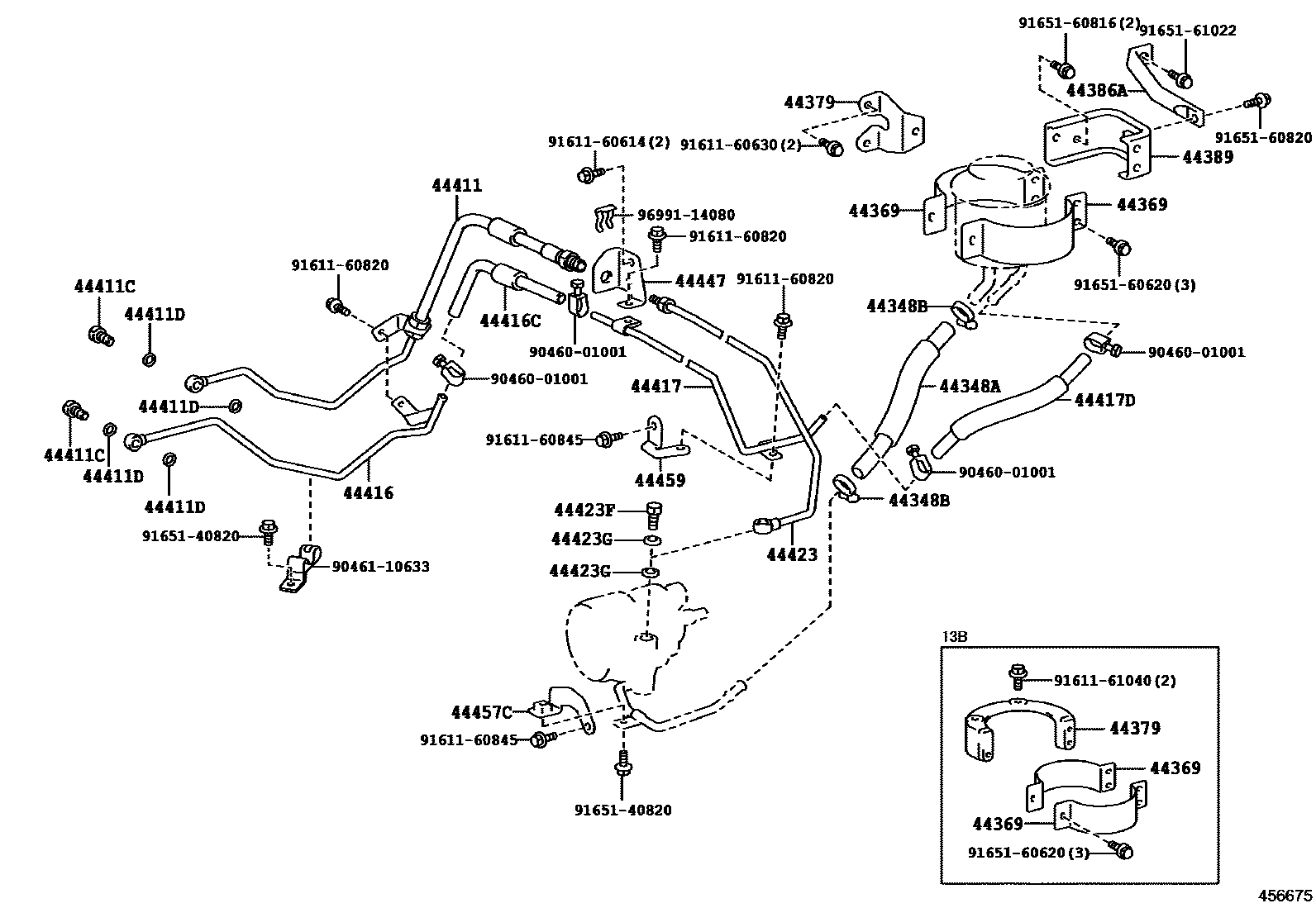

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36090iBU76,85,86..CBU,IV3198409-198708

sub44348-36091

main44348-36100iBU63,80;BU60..T1,T2,T3198409-198708

sub44348-36101

main44348-36110iBU65..CBU;BU61,62,81,82..ARL,GEN,GHD198409-198708

sub44348-36111

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iBU60..T1,T2,T3;BU61,62,63,80,81,82198409-198708

44369BRACKET, OIL RESERVOIR, NO.1

main44369-36010iBU65..CBU;BU60,61,62,80,81,82..(T1,T2,T3)..(ARL,GEN,GHD)198409-198708

main44369-36020iBU63,80;BU60..T1,T2,T3198412-198708

W/COOLER

main44369-36020iBU76,85,86..CBU,IV3198409-198708

44379BRACKET, OIL RESERVOIR, NO.2

main44379-36031iBU63,80;BU60..T1,T2,T3198409-198708

main44379-36080iBU76,85,86..CBU,IV3198409-198708

main44379-36090iBU65..CBU;BU61,62,81,82..ARL,GEN,GHD198409-198708

44386ASUPPORT, OIL RESERVOIR

main44386-36011iBU60,80..T1,T2,T3198409-198708

44389BRACKET, OIL RESERVOIR, NO.3

main44389-36021iBU63,80;BU60..T1,T2,T3198409-198708

44411HOSE, PRESSURE FEED

main44411-36110iBU76,85,86..RHD..(CBU,IV3)198409-198708

sub44411-36111

main44411-36141iBU76,85..LHD198409-198708

sub44411-36142

main44411-36170iBU60..RHD..(T1,T2,T3);BU61,62,65,80,81,82..RHD..(ARL,GEN,GHD)198409-198708

sub44411-36171

main44411-36180iBU60,61,62,80,81..LHD..(T1,T3)198409-198708

sub44411-36181

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-14003iBU60..T1,T2,T3;BU61,62,63,80,81,82198409-198708

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-14235iBU60..T1,T2,T3;BU61,62,63,80,81,82198409-198708

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36090iBU76,85,86..RHD..(CBU,IV3)198409-198708

main44416-36110iBU76,85..LHD198409-198708

main44416-36130iBU60..RHD..(T1,T2,T3);BU61,62,65,80,81,82..RHD..(ARL,GEN,GHD)198409-198708

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main90445-18130iBU76,85,86..CBU,IV3198409-198708

main90445-18133iBU60..T1,T2,T3;BU61,62,63,80,81,82198409-198708

44417TUBE, RETURN, NO.2

main44417-36060iBU60..T1,T2,T3;BU61,62,63,80,81,82198409-198708

main44417-36090iBU76,85,86..CBU,IV3198409-198708

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18132iBU76,85,86..CBU,IV3198409-198708

main90447-18022iBU63,80;BU60..T1,T2,T3198409-198708

main90447-18023iBU65..CBU;BU61,62,81,82..ARL,GEN,GHD198409-198708

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36110iBU76,85,86..CBU,IV3198409-198708

main44423-36140iBU65..CBU;BU60,61,62,80,81,82..(T1,T2,T3)..(ARL,GEN,GHD)198409-198708

44423FBOLT, UNION

main90401-16004iBU76,85,86..CBU,IV3198409-198708

sub90401-16027

44423GGASKET, UNION BOLT

main90430-16168iBU60..T1,T2,T3;BU61,62,63,80,81,82198409-198708

44447BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT

main44447-36100iBU76,85,86..CBU,IV3198409-198708

main44447-36120iBU65..CBU;BU60,61,62,80,81,82..(T1,T2,T3)..(ARL,GEN,GHD)198409-198708

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-36060iBU76,85,86..CBU,IV3198409-198708

main44457-36080iBU65..CBU;BU60,61,62,80,81,82..(T1,T2,T3)..(ARL,GEN,GHD)198409-198708

44459BRACKET, TUBE SUPPORT, NO.3

main44459-36070iBU60..T1,T2,T3;BU61,62,63,80,81,82198409-198708

main44459-36080iBU76,85,86..CBU,IV3198409-198708

9046001001

main90460-01001

9046110633

main90461-10633

9161160614

main91611-60614

9161160630

main91611-60630

9161160820

main91611-60820

9161160845

main91611-60845

9161161040

main91611-61040

9165140820

main91651-40820

9165160620

main91651-60620

9165160816

main91651-60816

9165160820

main91651-60820

9165161022

main91651-61022

9699114080

main96991-14080

32 parts on this diagram · 4 diagrams in section
