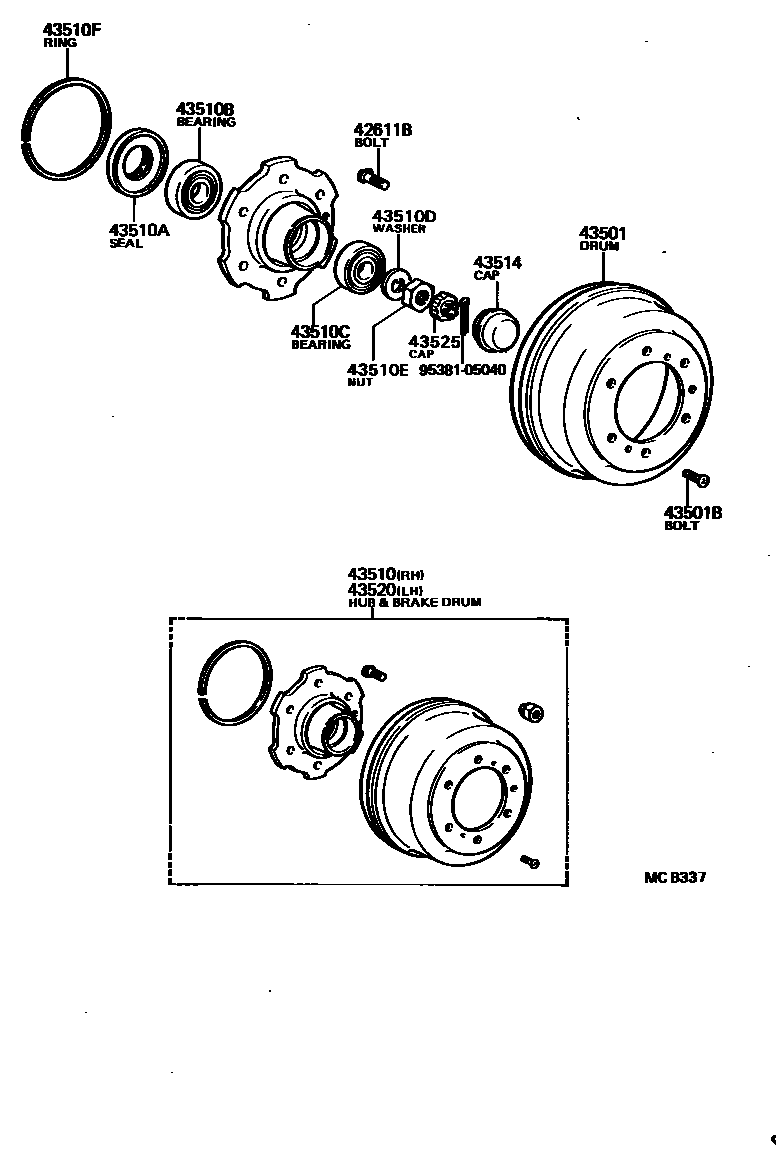

FRONT AXLE HUB

0001 1 0002 1 0003 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024iBU60,80..T2;BU60,61,62,70..ST198409-198708

RH

main90942-02025iBU60,80..T2;BU60,61,62,70..ST198409-198708

LH

main90942-02045iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

RH

main90942-02046iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198708

LH

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-36060iBU60,80..T2;BU60,61,62,70..ST198409-198708

main43512-36100iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198409-198707

main43512-36101iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT198707-198708

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iBU60,80..T2;BU60,61,62,70..ST198409-198708

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36110iBU60,80..T2;BU60,61,62,70..ST198409-198708

main43510-36130iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT..(CBU,IV3)198409-198707

main43510-36131iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT..(CBU,IV3)198707-198708

main43510-36150iBU85..RHD..GEN..(IV1,IV3)198501-198707

INDIA SPEC

main43510-36151iBU85..RHD..GEN..(IV1,IV3)198707-198708

INDIA SPEC

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-68001iBU6#,7#,8#198409-198708

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045iBU6#,7#,8#198409-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001iBU6#,7#,8#198409-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001iBU6#,7#,8#198409-198708

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001iBU6#,7#,8#198409-198708

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-99065iBU60,80..T2;BU60,61,62,70..ST198409-198708

T=1.60

43514CAP, FRONT HUB GREASE

main43514-36030iBU6#,7#,8#198409-198708

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36110iBU60,80..T2;BU60,61,62,70..ST198409-198708

main43520-36130iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT..(CBU,IV3)198409-198707

main43520-36131iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82,85,86..WT..(CBU,IV3)198707-198708

main43520-36150iBU85..RHD..GEN..(IV1,IV3)198501-198707

INDIA SPEC

main43520-36151iBU85..RHD..GEN..(IV1,IV3)198707-198708

INDIA SPEC

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010iBU6#,7#,8#198409-198708

9538105040

main95381-05040

14 parts on this diagram · 3 diagrams in section
