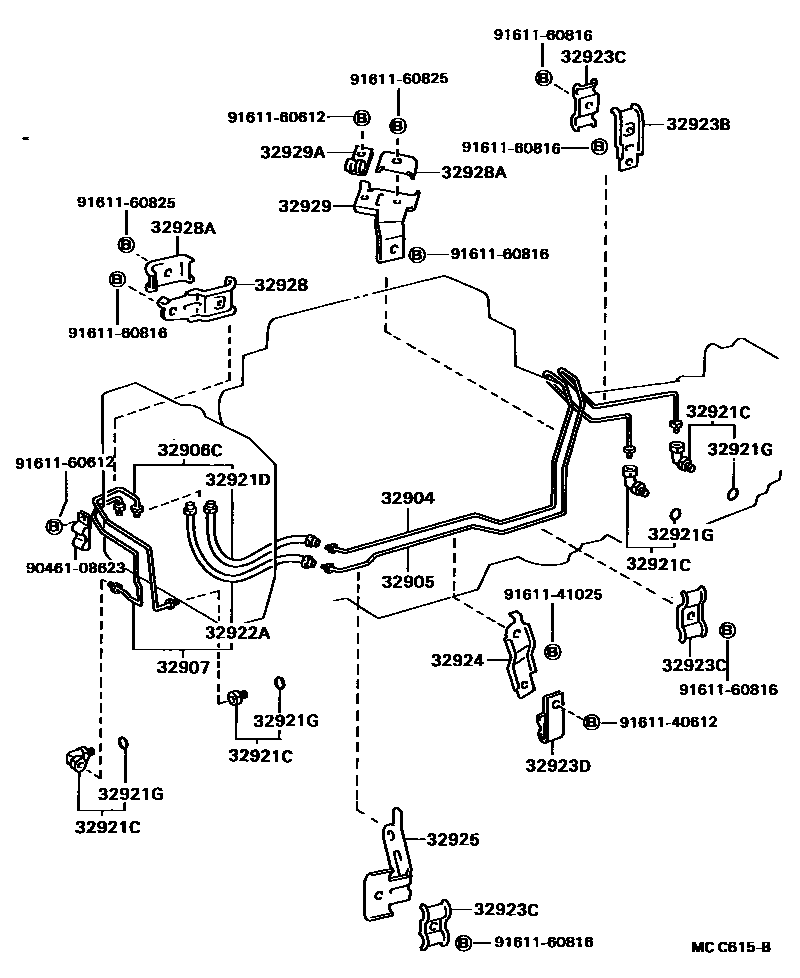

OIL COOLER & TUBE (ATM)
32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
sub32907-36013
32921CUNION(FOR OIL COOLER TUBE)
RADIATOR SIDE LH
RADIATOR SIDE LH
RADIATOR SIDE RH
RADIATOR SIDE RH,T/M SIDE
T/M SIDE
32921DHOSE(FOR OIL COOLER INLET)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32922AHOSE(FOR OIL COOLER OUTLET)
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5
32924CLAMP, OIL COOLER TUBE, NO.2
32928CLAMP, FLEXIBLE HOSE, NO.1
32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)
32929CLAMP, FLEXIBLE HOSE, NO.2
32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)
9046108623
main90461-08623
9161140612
main91611-40612
9161141025
main91611-41025
9161160612
main91611-60612
9161160816
main91611-60816
9161160825
main91611-60825
23 parts on this diagram · 2 diagrams in section
