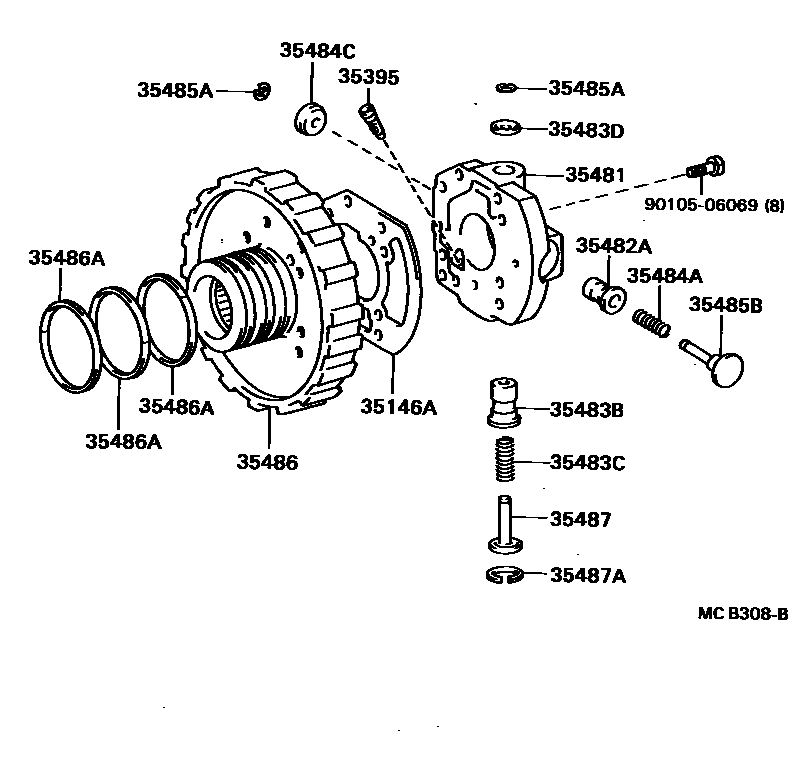

REAR OIL PUMP & GOVERNOR (ATM)
35146AGASKET, GOVERNOR BODY
35395STRAINER, GOVERNOR OIL
35482AVALVE, GOVERNOR, NO.1
sub35482-36011
35483BVALVE, GOVERNOR, NO.2
35483CSPRING, COMPRESSION (FOR GOVERNOR VALVE NO.2)
35483DSPACER (FOR GOVERNOR VALVE NO.2)
35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
sub90501-07068
35485ARING, E (FOR GOVERNOR VALVE SHAFT)
35485BSHAFT, GOVERNOR VALVE, NO.1
35486SUPPORT, GOVERNOR BODY
35486ARING (FOR GOVERNOR BODY SUPPORT)
35487SHAFT, GOVERNOR VALVE, NO.2
35487ARING, SNAP (FOR GOVERNOR VALVE SHAFT NO.2)
9010506069
main90105-06069
16 parts on this diagram · 1 diagram in section
