SHIFT LEVER & RETAINER
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502PLATE SUB-ASSY, SHIFT LEVER
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33550DBULB, POSITION INDICATOR LAMP
12V 3.4W
33623BUTTON, SHIFT LEVER KNOB
BLACK
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631BPIN, SLOTTED SPRING (FOR DETENT ROD)
33676SUPPORT, CONTROL ROD MEMBER, RH (FOR FLOOR SHIFT)
sub33676-36011
33677SUPPORT, CONTROL ROD MEMBER, LH (FOR FLOOR SHIFT)
33684ROD, CONTROL MEMBER BRACE
RH
LH
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723RSPACER (FOR FLOOR SHIFT CONTROL CABLE)
33820BCABLE ASSY, TRANSMISSION CONTROL
33820CBUSH (FOR TRANSMISSION CONTROL CABLE)
33821HCOLLAR (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
RR,TRANSMISSION SIDE
FR,FRAME SIDE
33824COVER, TRANSMISSION CONTROL CABLE
33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2
33827BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33828BRACKET, TRANSMISSION CONTROL CABLE, NO.4
35906WIRE SUB-ASSY, INDICATOR LAMP
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35972COVER, POSITION INDICATOR HOUSING
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
9017010082
main90170-10082
9017908146
main90179-08146
9046110634
main90461-10634
9046110638
main90461-10638
9046814004
main90468-14004
9046814016
main90468-14016
9094901210
main90949-01210
9161140820
main91611-40820
9161160820
main91611-60820
9161161016
main91611-61016
9161560816
main91615-60816
9165140614
main91651-40614
9165140820
main91651-40820
9166161025
main91661-61025
9166161030
main91661-61030
9331515012
main93315-15012
9411040800
main94110-40800
9412040800
main94120-40800
9451200800
main94512-00800
9461210800
main94612-10800

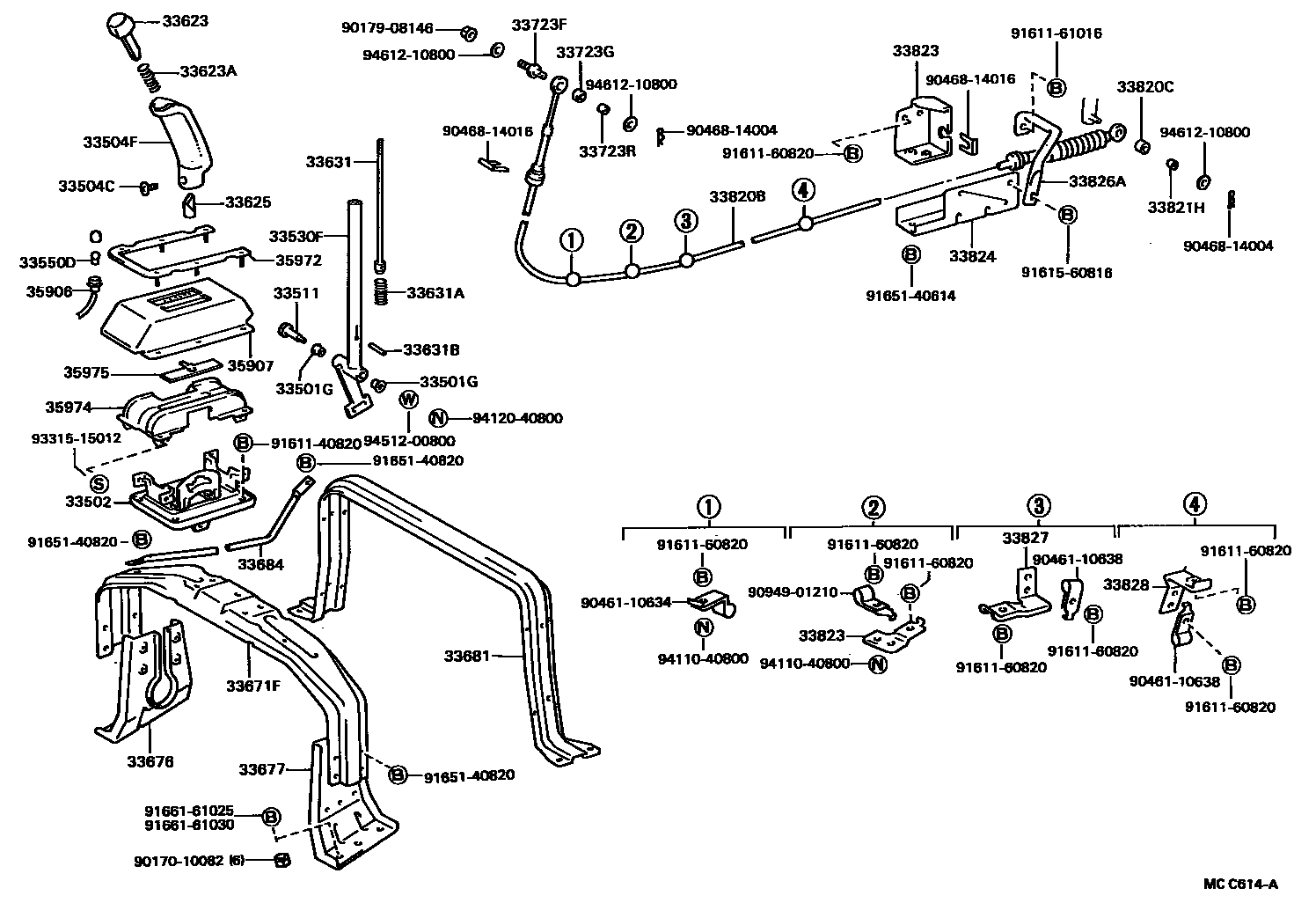

54 parts on this diagram · 8 diagrams in section
