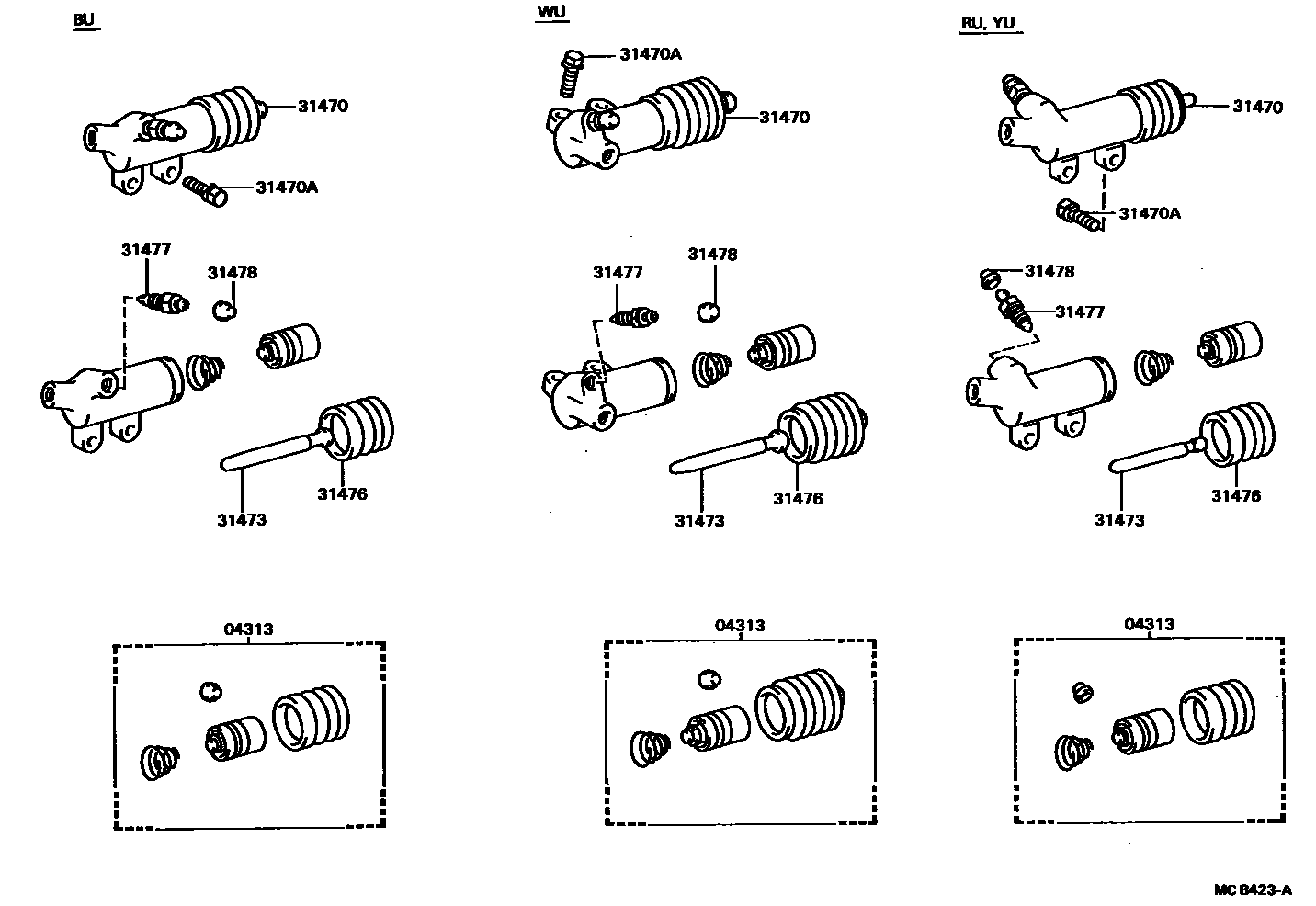

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

sub04313-12030

main04313-36080iBU6#,7#,8#198409-198708

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36130iBU6#,7#,8#198409-198708

main31470-36221iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

*8-1.25PX20-20

sub91611-G0820

main91611-60825iBU65..IV3198409-198708

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

main31473-36040iBU6#,7#,8#198409-198708

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iBU65..CBU;BU60,61,62,63,7#,8#..5F198508-198708

main31476-36020iBU6#,7#,8#198409-198708

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBU6#,7#,8#..5F198409-198708

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBU6#,7#,8#..5F198409-198708

7 parts on this diagram · 1 diagram in section
