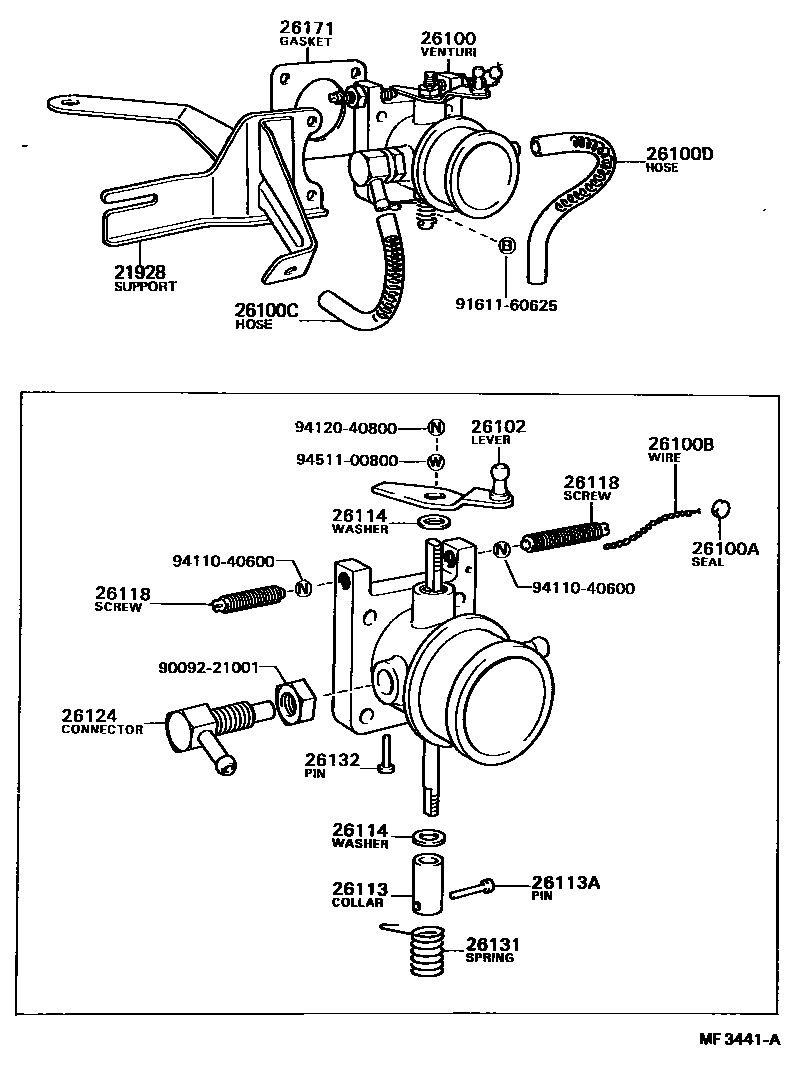

VENTURI

0001 1 0002 1

21928SUPPORT, THROTTLE WIRE

main21928-56070iB..BU60,63,70,75,80198409-198708

main21928-58010i11B,13B..BU61,62,76,81,82,85198409-198506

sub21928-58011

main21928-58011i11B,13B..BU61,62,65,76,81,82,85,86198506-198708

26100VENTURI ASSY

main26100-56080iB..BU75..EUR198409-198708

CHINA SPEC

main26100-56120iB..BU60,63,70,75,80..ARL,GEN,GHD198409-198708

main26100-56130i11B,13B..BU61,62,76,81,82,85198409-198506

sub26100-56131

sub21928-58011

main26100-56131i11B,13B..BU61,62,65,76,81,82,85,86198506-198708

26100ASEAL, LEAD

main22354-77050iB..BU60,63,70,75,80198409-198708

26100BWIRE, SEAL

main22355-36010iB..BU60,63,70,75,80198409-198708

26100CHOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)

main90447-12002iB..BU60,63,70,75,80198409-198708

26100DHOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)

main90447-12002iB..BU60,63,70,75,80198409-198708

26102LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING

main26102-56070iB..BU60,63,70,75,80198409-198708

26113COLLAR, THROTTLE VALVE SHAFT

main26113-56080iB..BU75..EUR198409-198708

CHINA SPEC

main26113-56081iB..BU60,63,70,75,80..ARL,GEN,GHD198408-198708

26113APIN, THROTTLE VALVE SHAFT

main26132-56011iB..BU60,63,70,75,80198409-198708

26114WASHER, THROTTLE VALVE SHAFT ADJUSTING

main26114-76010iB..BU60,63,70,75,80198409-198708

T=0.1,T=0.1

main26115-76010iB..BU60,63,70,75,80198409-198708

T=0.2,T=0.2

main26116-76010iB..BU60,63,70,75,80198409-198708

T=0.5,T=0.5

26118SCREW, STOP PLATE ADJUSTING

main22325-77020iB..BU60,63,70,75,80198705-198708

main26118-48014iB..BU60,63,70,75,80198409-198705

sub22325-77020

26124CONNECTOR, VENTURI PIPE

main26124-56030iB..BU75..EUR198409-198708

CHINA SPEC

main26124-56120iB..BU60,63,70,75,80..ARL,GEN,GHD198408-198708

26131SPRING, RETURN

main26131-56010iB..BU60,63,70,75,80198409-198708

26132PIN

main26132-56010iB..BU60,63,70,75,80198409-198708

26171GASKET, VENTURI

main26171-56020iB..BU60,63,70,75,80198409-198708

sub26171-56050

main26171-56040i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

9009221001

main90092-21001

9161160625

main91611-60625

9411040600

main94110-40600

9412040800

main94120-40800

9451100800

main94511-00800

20 parts on this diagram · 2 diagrams in section
