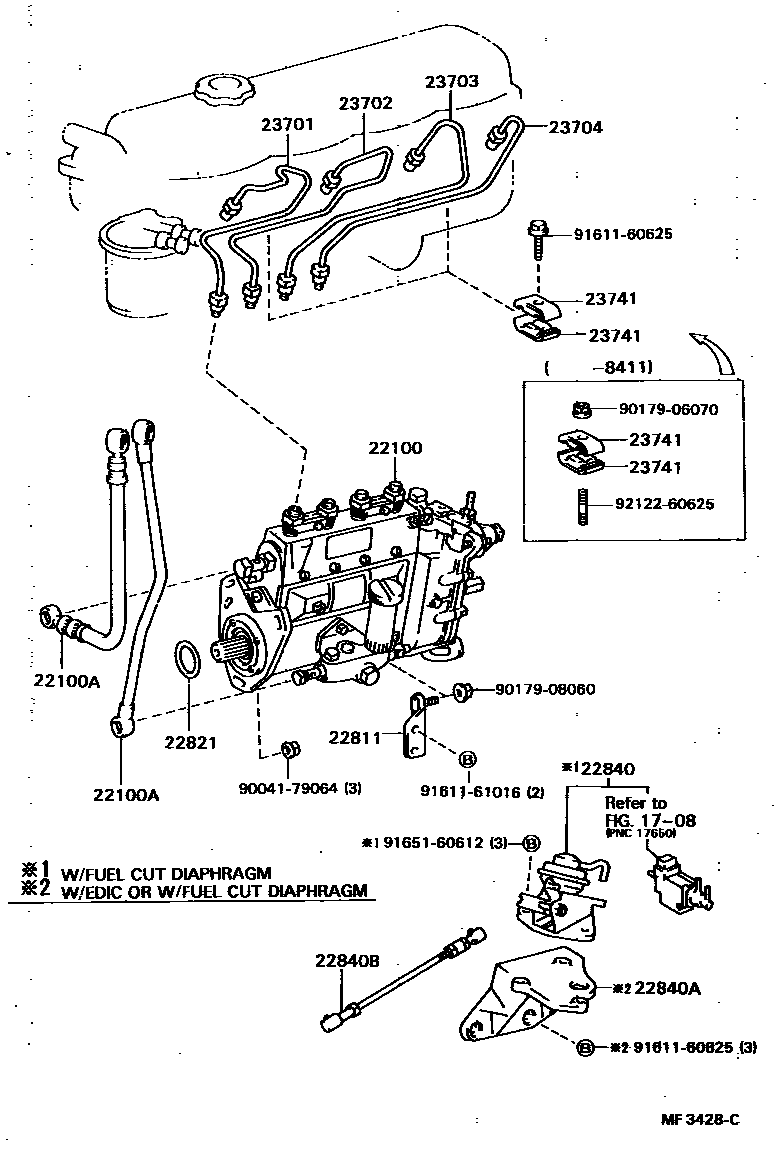

INJECTION PUMP ASSEMBLY

0001 1 0002 1

1708

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56082iB..BU60..LHD..TW1;B..BU60,80..LHD..WT198508-198708

CHINA SPEC

main22100-56093iB..BU60,63,70,75,80..GEN,GHD198409-198708

W/HAC

main22100-56210iB..BU60,63,70,75,80198409-198708

W/TACHO METER

main22100-56220iB..BU60,63,70,80..GEN,GHD198409-198508

W/HAC & TACHO METER

main22100-56240i11B..BU61,76,81198501-198508

main22100-56241i11B..BU61,65,76,81,86..GEN,GHD198604-198708

main22100-56250i11B..BU61,65..ARL198508-198604

main22100-56251i11B..BU61,76,81,86..(GEN,GHD)..(CBU,IV3)198604-198708

W/TACHO METER

main22100-56260i11B..BU61,76,81,86..(GEN,GHD)..(CBU,IV3)198501-198708

W/HAC

main22100-56270i11B..BU81..SA198604-198608

W/TACHO METER

main22100-58230i13B..BU85..LHD..GEN..IV3198510-198604

THAIWAN SPEC

main22100-58231i13B..BU85..LHD..GEN..IV3198604-198708

THAIWAN SPEC

main22100-58250i13B..BU85..GEN198409-198708

W/HAC

main22100-58260i13B..BU62,82,85..GEN,GHD198409-198604

main22100-58261i13B..BU82198604-198708

main22100-58280i13B..BU85..GEN198409-198708

W/HAC & TACHO METER

main22100-58290i13B..BU62,82,85..5F198409-198611

W/TACHO METER

sub90413-04004

sub95411-10130

sub95411-10730

sub95411-10830

main22100-58291i13B..BU82,85198611-198708

W/TACHO METER

sub22100-58292

main22100-58380i13B..BU62..ARL198510-198512

sub35525-36011

main22100-58381i13B..BU62..ARL198512-198604

main22100-58383i13B..BU62..ARL198604-198708

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56060iB,11B,13B..BU6#,7#,8#198409-198708

PIPE L=300

main23802-56040iB,11B,13B..BU6#,7#,8#198409-198708

HOSE L=210

22811STAY, INJECTION PUMP, NO.1

main22811-56011iB..BU60,63,70,75,80198409-198708

main22811-56040i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

22821GASKET, INJECTION PUMP

main90301-77001iB..BU60,63,70,75,80198409-198708

22840DIAPHRAGM ASSY, FUEL CUT

main22840-56010iB..BU60,63,70,75,80..ARL,GEN,GHD198409-198508

main22840-56011iB..BU60,63,70,75,80..ARL,GEN,GHD198508-198708

22840ABRACKET, FUEL CUT DIAPHRAGM

main28579-56030iB..BU60,63,70,75,80..ARL,GEN,GHD198409-198708

22840BROD ASSY, FUEL CONTROL

main28580-87303iB..BU60,63,70,75,80..ARL,GEN,GHD198409-198708

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56030iB..BU60,63,70,75,80198409-198708

main23701-56060i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56030iB..BU60,63,70,75,80198409-198708

main23702-56060i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020iB..BU60,63,70,75,80198409-198708

main23703-56060i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020iB..BU60,63,70,75,80198409-198708

main23704-56060i11B,13B..BU61,62,65,76,81,82,85,86198409-198708

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010×4iB,11B,13B..BU6#,7#,8#198409-198708

9004179064

main90041-79064

9017906070

main90179-06070

9017908060

main90179-08060

9161160625

main91611-60625

9161160825

main91611-60825

9161161016

main91611-61016

9165160612

main91651-60612

9212260625

main92122-60625

21 parts on this diagram · 2 diagrams in section
