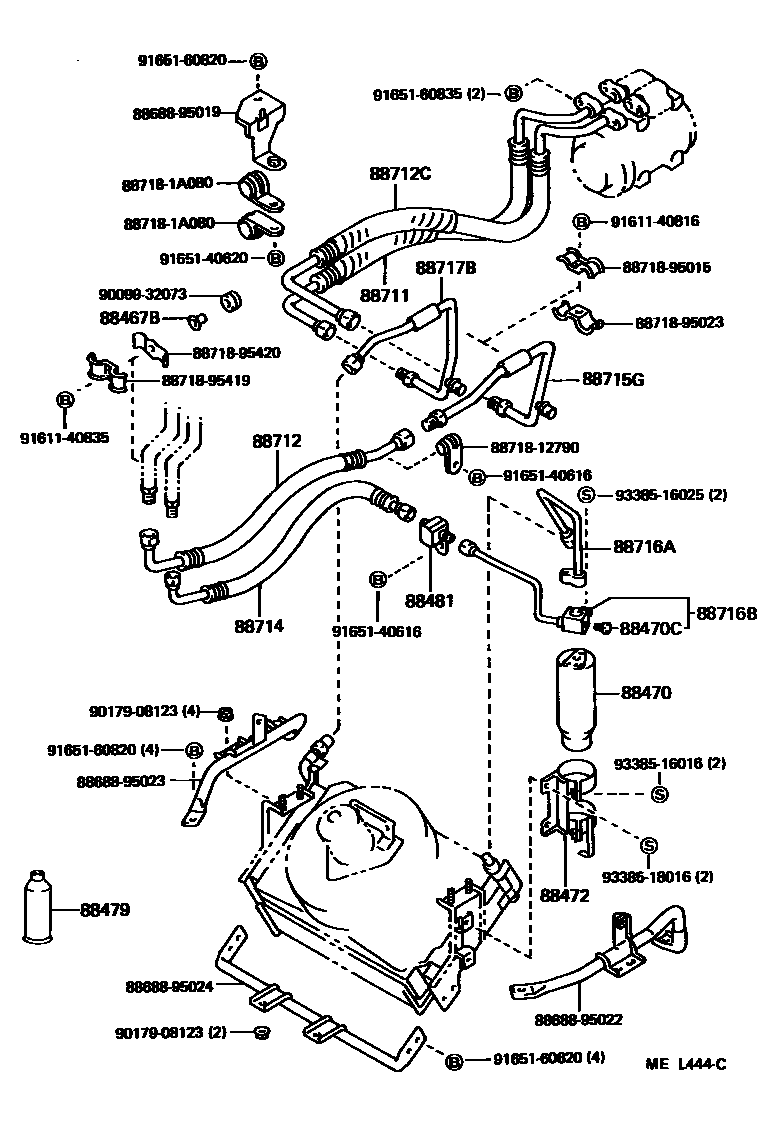

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-22010iLY61..ST198808-199505

88470RECEIVER & DRYER ASSY, COOLER

main88471-20050iLY61..ST¥6,500199309-199505

sub88471-34010¥4,790

main88471-95010iLY61..ST¥0198808-199309

88470CBOLT, FUSE

main88475-12020iLY61..ST199001-199309

88472BRACKET, RECEIVER TANK, NO.1

main88472-25050iLY61..ST199309-199505

main88472-95012iLY61..ST198808-199309

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iLY61..ST198808-198910

400G

sub90986-02004

sub90986-02005

main90986-02004iLY61..ST198910-199309

250G

main90986-02007iLY61..ST¥1,870199309-199505

250G

main90986-02008iLY61..ST¥1,500199309-199505

200G

88481GLASS, SIGHT

main88481-87002iLY61..ST198808-199309

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-25060iLY61..ST¥13,300199309-199505

main88711-95043iLY61..ST¥14,700198808-199309

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-25060iLY61..ST¥10,600199309-199505

main88712-95034iLY61..ST¥10,600198808-199309

88712CHOSE, SUCTION

main88712-25080iLY61..ST¥14,600199309-199505

main88712-95035iLY61..ST¥14,700198808-199309

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-25030iLY61..ST¥10,000199309-199505

main88721-95016iLY61..ST¥9,200198808-199309

88715GTUBE, DISCHARGE, G

main88715-25070iLY61..ST¥5,400199309-199505

main88715-95012iLY61..ST¥6,200198808-199309

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-25060iLY61..ST¥2,170199309-199505

main88716-95023iLY61..ST¥3,520198808-199309

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-25080iLY61..ST¥2,360199309-199505

main88716-95024iLY61..ST¥4,600198808-199309

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-25100iLY61..ST¥7,900199309-199505

main88717-95016iLY61..ST¥7,900198808-199309

8868895019BRACKET, COOLER DIAPHRAGM

main88688-95019

8868895022BRACKET, COOLER DIAPHRAGM

main88688-95022

8868895023BRACKET, COOLER DIAPHRAGM

main88688-95023

8868895024BRACKET, COOLER DIAPHRAGM

main88688-95024

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

887181A080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A080

8871895015PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95015

8871895023PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95023

8871895419PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95419

8871895420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95420

9009932073

main90099-32073

9017908123

main90179-08123¥160

9161140816

main91611-40816¥140

9161140835

main91611-40835¥180

9165140616

main91651-40616¥60

9165140620

main91651-40620¥70

9165160620

main91651-60620¥80

9165160820

main91651-60820¥130

9165160835

main91651-60835¥90

9338516016

main93385-16016¥80

9338516025

main93385-16025¥90

9338518016

main93385-18016¥160

36 parts on this diagram · 3 diagrams in section
