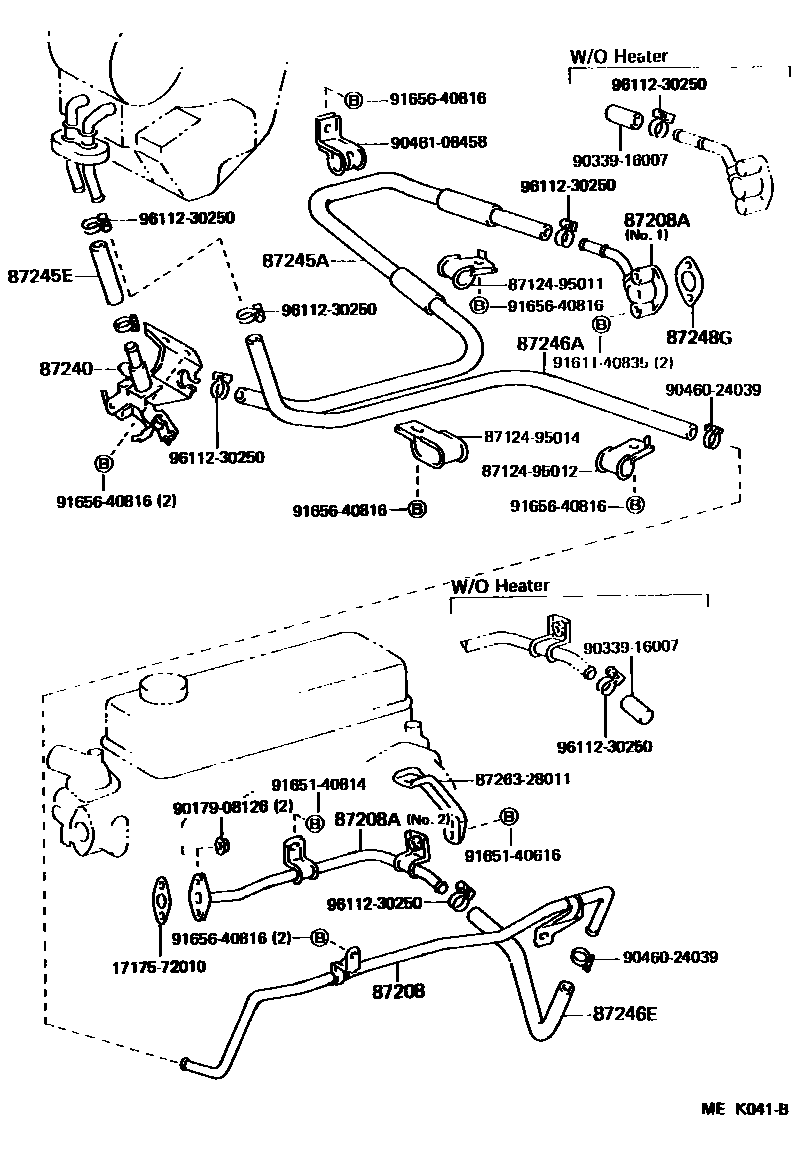

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-95013iLY60198708-198808

main87208-95018iYY61198708-198808

main87208-95021iLY61198808-199505

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-28010iYY61198708-198808

NO.1

main87208-28021iYY61198708-198808

NO.2

87240VALVE ASSY, HEATER WATER

main87240-95408iLY60,YY61198708-198808

main87240-95410iLY61198808-199505

87245AHOSE, HEATER WATER, INLET A

main87245-95039iLY60198708-198808

main87245-95045iYY61198708-198808

main87245-95056iLY61198808-199505

87245EHOSE, HEATER WATER, INLET E

main99556-30100iLY60,YY61198708-198808

*H,L=60

main99556-30135iLY61198808-199505

*H,L=135

sub99556-30200

87246AHOSE, HEATER WATER, OUTLET A

main99556-30980iLY60,YY61198708-199505

*H,L=980

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-95051iYY61198708-198808

main87245-95053iLY60198708-198808

main87245-95056iLY61198808-199505

87248GGASKET, WATER INLET PIPE

main11493-71010iYY61198708-198808

sub11493-71011

1717572010GASKET, INTAKE MANIFOLD INLET

main17175-72010

8712495011CLAMP, HEATER

main87124-95011

8712495012CLAMP, HEATER

main87124-95012

8712495014CLAMP, HEATER

main87124-95014

8726328011BRACKET, HEATER WATER PIPE, NO.1

main87263-28011

9017908126

main90179-08126

9033916007

main90339-16007

9046024039

main90460-24039

9046108458

main90461-08458

9161140835

main91611-40835

9165140616

main91651-40616

9165140814

main91651-40814

9165640816

main91656-40816

9611230250

main96112-30250

22 parts on this diagram · 2 diagrams in section
