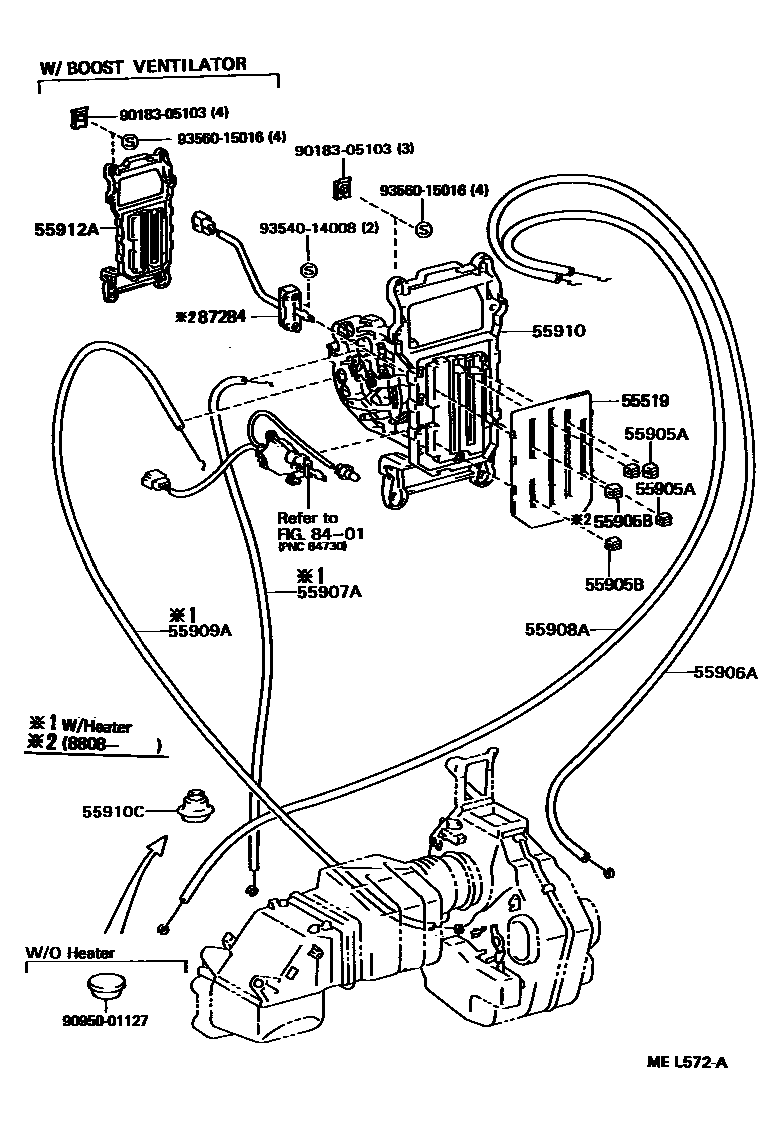

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55519PLATE, HEATER CONTROL NAME
W(BOOST VENTILATOR)
W(FOOT VENTILATOR)
W(FR HEATER=HEAVY DUTY TYPE) OR W(FR HEATER=STD TYPE)
55905AKNOB, HEATER CONTROL
W(BOOST VENTILATOR)
55905BKNOB, HEATER CONTROL, NO.2
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55907ACABLE SUB-ASSY, WATER VALVE CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
W(FOOT VENTILATOR)
W(FOOT VENTILATOR)
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
W(FR HEATER=HEAVY DUTY TYPE) OR W(FR HEATER=STD TYPE)
W(BOOST VENTILATOR)
W(FOOT VENTILATOR)
W(FR HEATER=HEAVY DUTY TYPE) OR W(FR HEATER=STD TYPE)
sub55910-36090
sub55906-36030
sub55906-36040
sub55906-36050
sub55906-36060
sub55907-36010
sub55907-36020
sub55907-36030
sub55907-36040
sub55910-36090
sub55906-36030
sub55906-36040
sub55906-36050
sub55906-36060
sub55907-36010
sub55907-36020
sub55907-36030
sub55907-36040
55910CGROMMET(FOR HEATER CONTROL CABLE)
W(FR HEATER=HEAVY DUTY TYPE) OR W(FR HEATER=STD TYPE)
W(BOOST VENTILATOR)
55912AHOUSING, HEATER CONTROL
8401
87284RESISTOR SUB-ASSY, VARIABLE
9018305103
main90183-05103
9095001127
main90950-01127
9354014008
main93540-14008
9356015016
main93560-15016
16 parts on this diagram · 3 diagrams in section
